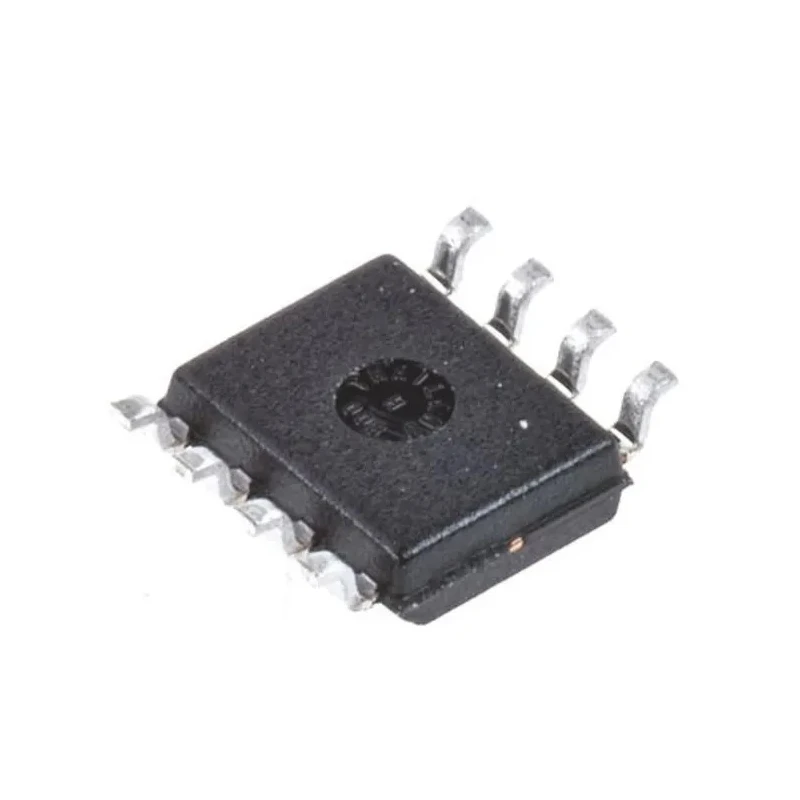

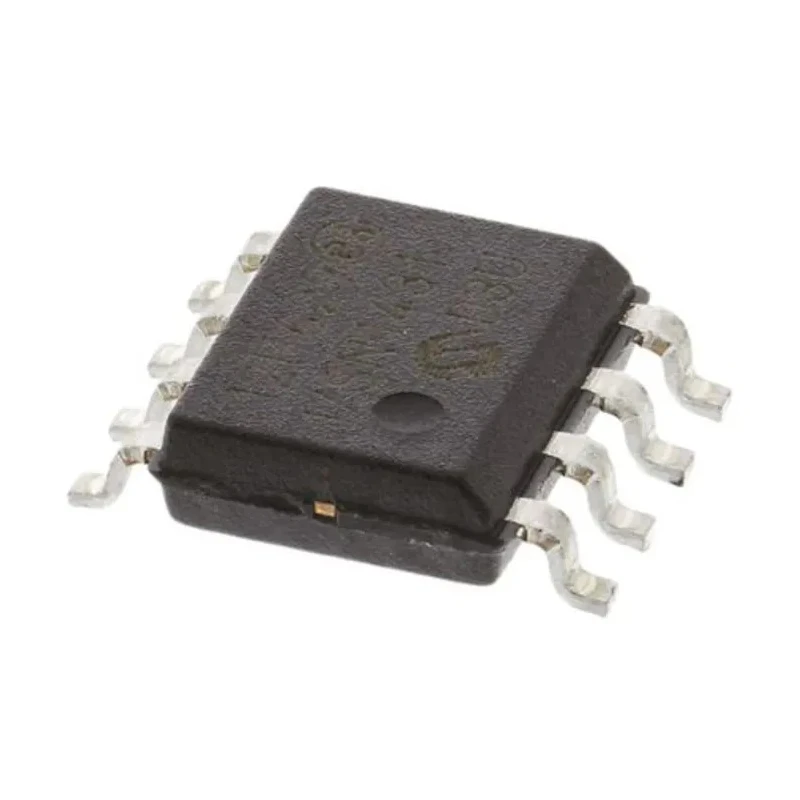

ams OSRAM Magnetic Hall Effect Sensor 5.5V, 2048 ppr Digital Signal AS5601-ASOM

ams OSRAM AS5601-ASOM is a high-resolution 12-bit magnetic rotary position sensor designed for accurate angle measurement with digital incremental outputs. Operating at a maximum supply voltage of 5.5V, it produces up to 2048 pulses per revolution, making it suitable for precise rotary position feedback systems.

The sensor leverages magnetic encoder technology, enabling contactless measurement which is resilient to dust, dirt, and mechanical wear. This durability enhances the sensor's reliability in harsh industrial environments including automation, motion control, and robotics.

Programmable features such as zero position adjustment and device configuration increase flexibility for customized installations. Additionally, the push button output offers detection of sudden changes in air gap, useful for maintenance and diagnostic functions.

Operating temperature ranges from -40°C to 125°C, meeting requirements for demanding industrial applications. The high switching frequency of 15.6 kHz supports fast response times required in dynamic sensing tasks.

This surface mount Hall effect sensor is ideal for integration into machinery and automated control systems, providing accurate position data that improves operational efficiency and precision.

Key features include low power automatic sleep mode, automatic magnet detection, and digital absolute angle output via I²C interface, facilitating integration with control electronics.

Utilizes magnetic encoder technology for precise rotary position sensing. Features 12-bit resolution with quadrature output up to 2048 pulses per revolution. Contactless measurement prevents wear and is dust insensitive.

User-programmable zero position and device configuration. Push button output for air gap change detection. Wide operating temperature range from -40°C to 125°C. High switching frequency of 15.6 kHz for responsive sensing.

Surface mount package for easy PCB integration. Supports industrial automation and motion control applications. Includes low power mode and automatic magnet detection.

This sensor is ideal for industrial, automation, laboratory, and manufacturing environments where precise rotary position feedback is required. Explore more sensors of this kind from ams OSRAM on EnvMart.
