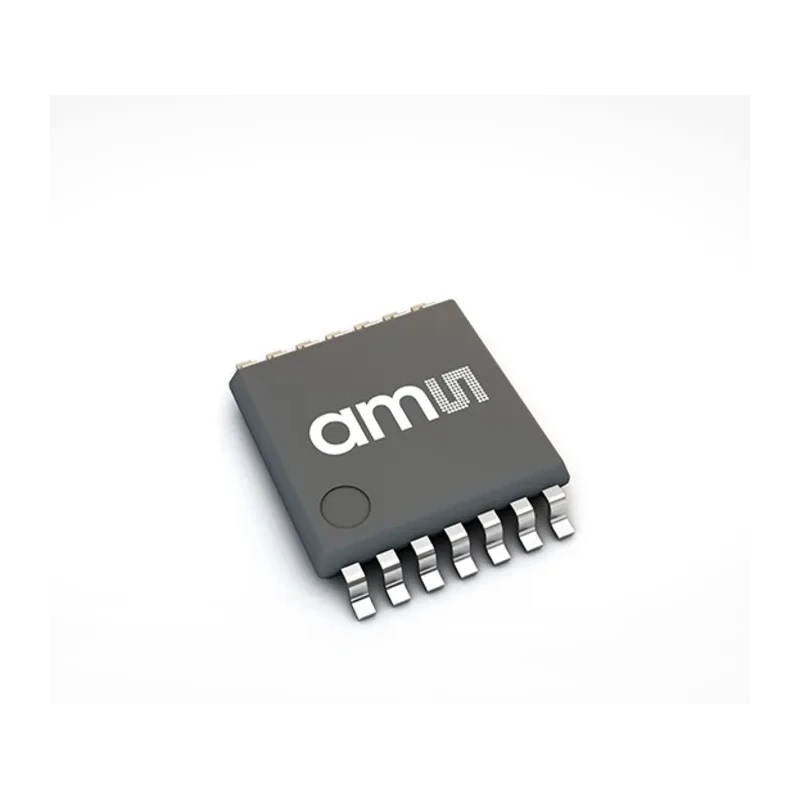

ams OSRAM 1 Axis Surface Hall Effect Position Sensor 300 mV Min Supply 7V Max Supply, SPI, PWM, UVW Interface AS5147P-HTSM
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Response time | 110μs |
| Height | 1.2mm |
| Length | 5mm |
| Model | AS5147P-HTSM |
| Technology | CMOS |
| Sensor Type | Position Sensor |
| Width | 6mm |
| Mount Type | Surface |
| Series | AS5147P |
| Maximum Operating Temperature | 150°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | SPI, PWM, UVW |
| Standards/Approvals | AEC-Q100, ISO26262 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 Grade 0 |
| Maximum Supply Voltage | 7V |
| Minimum Supply Voltage | 300mV |
| Supply Current | 15mA |
| Magnetic Type | Bipolar |
Key Features
- This sensor supports a full 360-degree rotation range suitable for rotary position detection.
- Equipped with SPI, PWM, and UVW interface options for versatile signal output.
- Hardware package is a compact TSSOP 14-pin with dimensions of 5mm length, 6mm width, and 1.2mm height.
- Supports a supply voltage range from minimum 300 mV up to maximum 7 V with a 15 mA supply current.
- Operates reliably in harsh automotive and industrial environments with operating temperatures from -40°C to 150°C.
- Features integrated self diagnostics and high immunity against external stray magnetic fields.
- Meets automotive standard AEC-Q100 Grade 0 and complies with ISO26262 safety standard.
Product Description
ams OSRAM AS5147P-HTSM is a high-resolution 1 Axis Surface Hall Effect Position Sensor designed for precise rotary position measurements over a full 360-degree range. This device features a revolutionary integrated Dynamic Angle Error Compensation (DAEC) that ensures near-zero latency angle measurements, ideal for high-speed applications up to 28,000 rpm.
The sensor uses bipolar magnetic technology with a CMOS sensor type and is mounted on a surface in a compact TSSOP 14-pin package. The robust design provides high immunity to homogenous external stray magnetic fields, improving reliable performance in demanding industrial, automotive, and manufacturing environments.
Operating at a supply voltage range between 300 mV and 7 V with a supply current of 15 mA, the AS5147P-HTSM offers multiple interface options including SPI, PWM, and UVW signals for versatile communication. It supports operating temperatures from -40°C to 150°C and complies with automotive standards such as AEC-Q100 Grade 0 and ISO26262 functional safety.
This sensor is suited for applications including automotive steering angle measurement, motor position sensing, industrial automation, robotics, and other motion control systems requiring highly accurate angle sensing.
14-bit core resolution enables fine angle measurement accuracy. Programmable zero position and configuration support customization for varied applications. Self diagnostics ensure system reliability and fault detection. Compact and low-profile TSSOP package dimensions: 5mm length, 6mm width, 1.2mm height.
Certified automotive-grade sensor with enhanced reliability and safety features.
Country of origin is Austria. This new product is designed and produced to meet stringent industrial and automotive standards, making it a reliable choice for critical sensor applications. Explore more in the Electronics Sensors category at EnvMart for comprehensive sensor solutions.
Explore more products in our Hall Effect Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AS5147P-HTSM sensor operates with a supply voltage range from a minimum of 300 mV to a maximum of 7 V.
This model has dimensions of 5 mm in length, 6 mm in width, and 1.2 mm in height, packaged in a TSSOP format.
The sensor operates reliably in temperatures ranging from -40°C to 150°C.
The response time of this sensor is 110 μs, making it suitable for high-speed applications.
The sensor requires a supply current of 15 mA during operation.
It complies with AEC-Q100 Grade 0 and ISO26262 safety standards, ensuring reliability in automotive applications.
This model utilizes bipolar magnetic technology with a CMOS sensor type for precise measurements.
The sensor features a core resolution of 14 bits, allowing for fine angle measurement accuracy.
It is suitable for applications such as automotive steering angle measurement, motor position sensing, and industrial automation.
The AS5147P-HTSM is designed for surface mounting, making it compact and easy to integrate into various systems.
The sensor is manufactured in Austria, adhering to stringent industrial and automotive standards.
