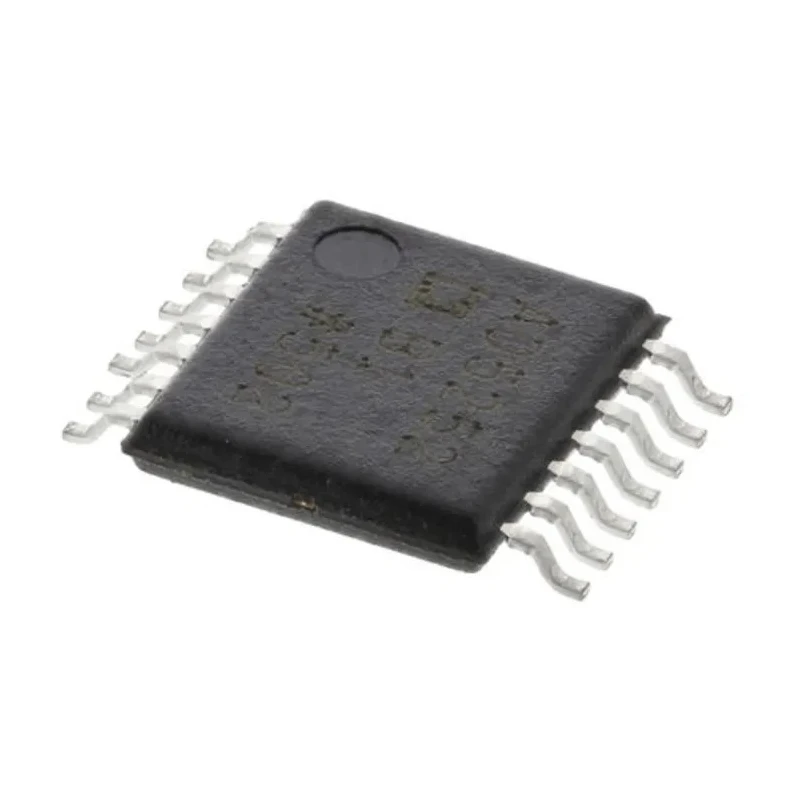

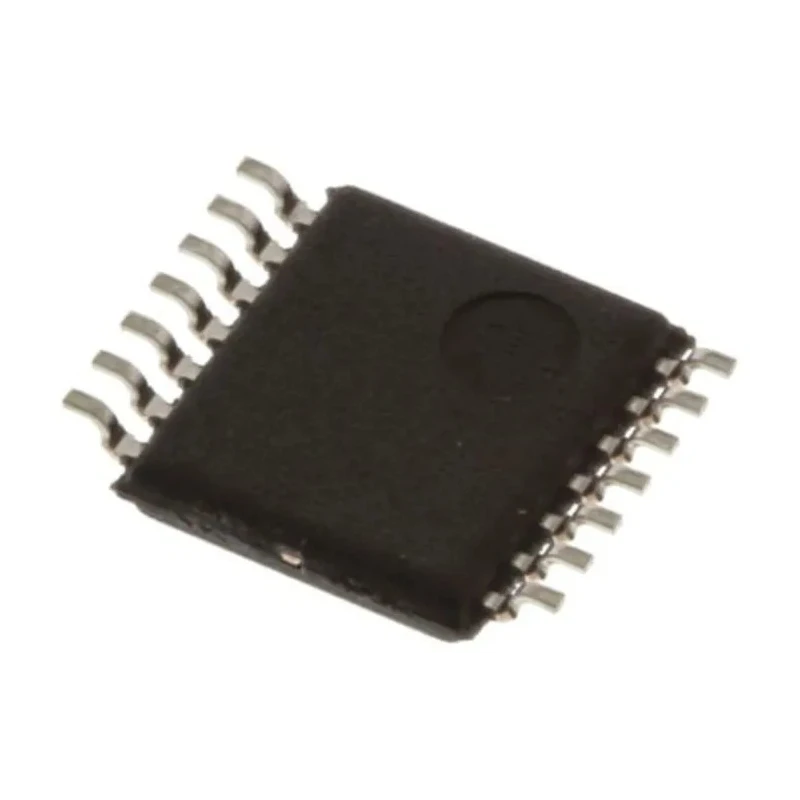

ams OSRAM 1 Axis Surface Hall Effect Sensor 3 V to 5.5 V, PWM, UVW, SPI Interface, TSSOP 14-Pin AS5047D-ATSM

The ams OSRAM AS5047D-ATSM is a high-resolution 1 Axis Surface Hall Effect Sensor designed for fast, absolute angle measurement over a full 360-degree range. Operating between 3 V and 5.5 V, this sensor integrates a 14-bit on-axis magnetic rotary position sensing core with CMOS technology, providing reliable and precise results in compact TSSOP 14-pin packaging measuring 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.

Its design supports multiple output interfaces including PWM, UVW, and SPI protocols, making it highly adaptable in industrial, automotive, and electronic applications where precise rotational position sensing is critical. The sensor features advanced Dynamic Angle Error Compensation (DAEC) which ensures accuracy by compensating for error angles dynamically.

Built to automotive standards AEC-Q100-004 and AEC-Q100-002, and compliant with IPC/JEDEC J-STD-020, the AS5047D-ATSM guarantees robustness and reliability across a broad operating temperature range from -40°C to 125°C. The device enables programmable ABI decimal and binary pulse counts with pulse-per-revolution options ranging from 8 up to 512, alongside configurable zero positioning and independent outputs for versatile integration.

The low power supply current of 15 mA makes it a power-efficient choice for embedded systems. With a rapid response time of 110 microseconds, it supports real-time motion sensing and control applications. Manufactured in Austria, the AS5047D-ATSM supports the demanding requirements of industrial and automotive sectors, ensuring high performance in demanding environments.

This sensor uses CMOS technology for high precision and reliability. Designed for surface mount with 14 pins and a small form factor of 5.1 x 4.5 x 1.05 mm. Operating temperature range from -40°C to 125°C, suitable for automotive and industrial applications.

Features a 14-bit magnetic rotary position sensor with dynamic angle error compensation for accurate 360-degree position measurements. Supply current is a low 15 mA ensuring energy efficiency. Certified to AEC-Q100-004 and AEC-Q100-002 automotive standards and complies with IPC/JEDEC J-STD-020.

Offers programmable ABI pulse counts and independent output interfaces for versatile system integration. Provides a fast response time of 110 microseconds for real-time motion detection. Manufactured in Austria ensuring consistent quality and reliability.

Supports zero position and configuration programming for customizable applications.

This Hall Effect Sensor is ideal for precise position sensing, speed measurement, and rotary encoders within industrial automation, automotive steering systems, robotics, and other motion control applications. Its compact footprint and robust features make it suitable for demanding environments requiring reliable, highly accurate sensor data.
