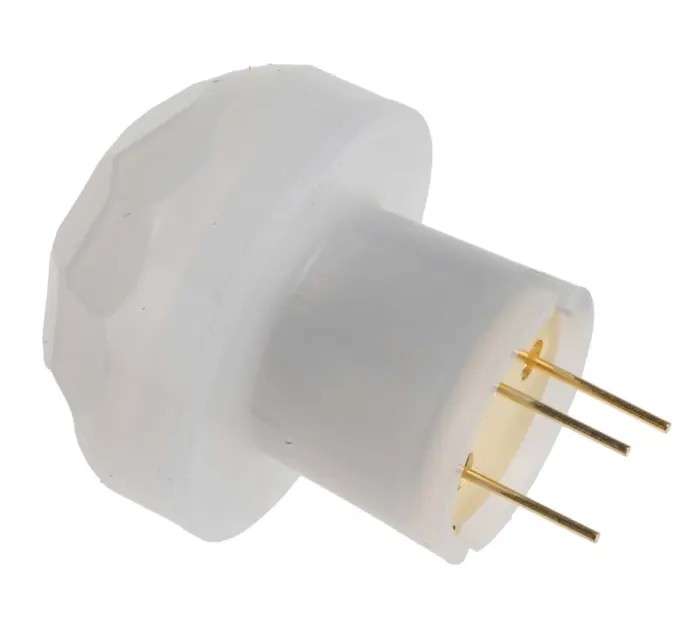

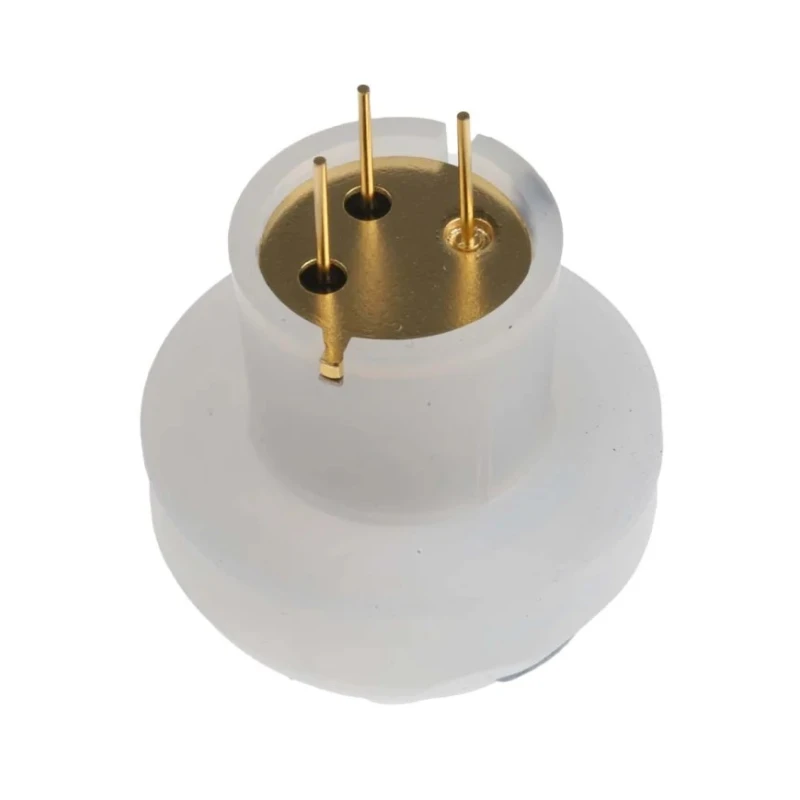

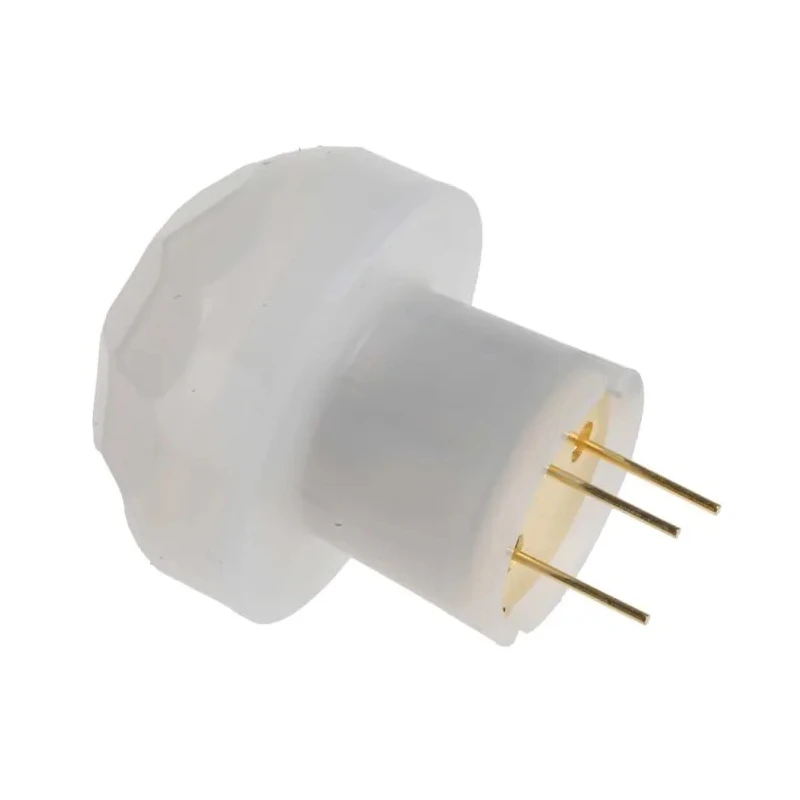

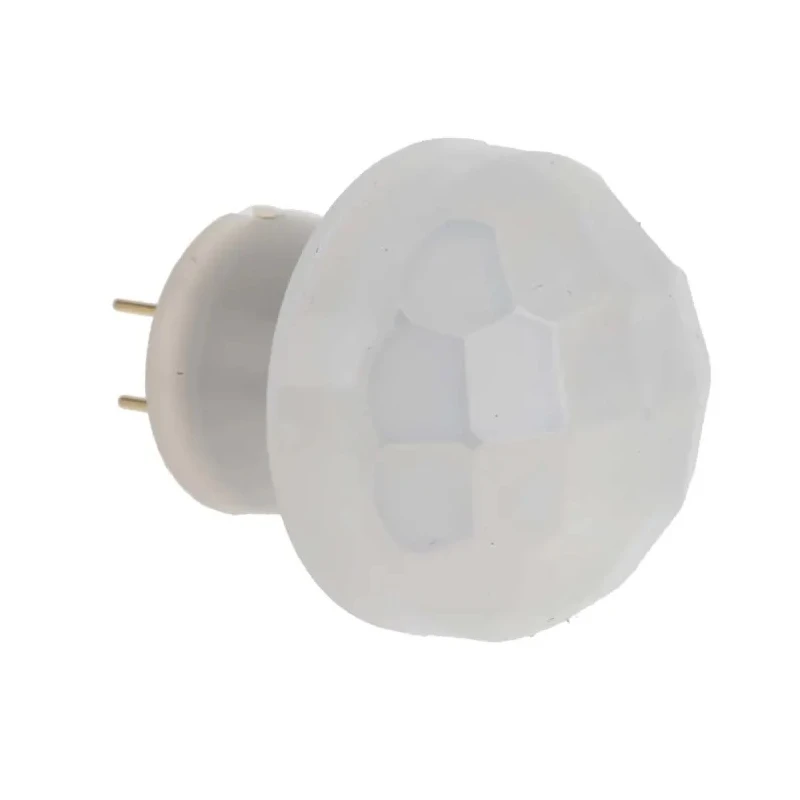

Panasonic Mini PIR Motion Sensor AMN1, 5 m Sensing Distance, 3-7 V Supply, TO-5 Package AMN1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | AMN1 |
| Mount Type | PCB |
| Output type | Digital, Analogue |
| Series | AMN1 |
| Sensing Distance | 5m |
| Maximum Operating Temperature | 60°C |
| Package Type | TO-5 |
| Minimum Operating Temperature | -20°C |
| Maximum Output Current | 100μA |
| Maximum Output Voltage | 6V |
| Pin Count | 3 |
| Maximum Supply Voltage | 7V |
| Minimum Supply Voltage | 3V |
| Panasonic 10m PIR Motion DetectorBrand | Panasonic |
Key Features
- Compact mini passive infrared motion sensor ideal for precise motion detection.
- Operates within a voltage range of 3 V minimum to 7 V maximum supply.
- Provides both digital and analogue output types for versatile application.
- Has a maximum output current of 100 µA and maximum output voltage of 6 V.
- Operates reliably in temperature ranges from -20°C to 60°C.
- Designed with 3 pins in TO-5 metal can package suitable for PCB mounting.
- Manufactured in Japan, ensuring high reliability and quality standards.
- Suitable for industrial, electronic component, and sensor IC applications.
Product Description
Panasonic AMN1 is a mini passive infrared (PIR) motion sensor featuring a sensing distance of 5 meters and operating voltage range of 3 V to 7 V. Packaged in a TO-5 metal can with 3 pins, it is designed for PCB mounting. It delivers both digital and analogue output signals, providing versatility for various electronic applications.
This sensor employs PIR 1000 switching electronics optimized for compactness and efficient motion detection. It is one of the world's smallest passive infrared motion detectors, making it suitable for integration in space-constrained electronic devices or sensor modules.
The AMN1 sensor supports maximum output current up to 100 microamperes and output voltage up to 6 volts, ensuring low power consumption in sensing operations. It functions reliably over an operating temperature range from -20°C to 60°C, making it apt for various environmental conditions.
Manufactured in Japan, this sensor meets high-quality standards and is offered as new product condition. Typical applications include industrial automation, electronics manufacturing, power and connector systems, laboratory instrumentation, and other commercial or industrial sensor uses.
This sensor's compact size and performance make it an excellent component for proximity detection, motion control, and presence sensing in electronic designs. Compact mini passive infrared motion sensor ideal for precise motion detection.
Operates within a voltage range of 3 V minimum to 7 V maximum supply. Provides both digital and analogue output types for versatile application. Has a maximum output current of 100 µA and maximum output voltage of 6 V. Operates reliably in temperature ranges from -20°C to 60°C.
Designed with 3 pins in TO-5 metal can package suitable for PCB mounting. Manufactured in Japan, ensuring high reliability and quality standards. Suitable for industrial, electronic component, and sensor IC applications.
Discover more Panasonic sensors and motion detection products at EnvMart for industrial-grade solutions matching your design needs.
Explore more products in our Motion Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensing distance of this model is 5 meters.
It operates within a voltage range of 3 V minimum to 7 V maximum.
This unit provides both digital and analogue output types for versatile applications.
The maximum output current is 100 µA and the maximum output voltage is 6 V.
It operates reliably in temperature ranges from -20°C to 60°C.
It is designed in a TO-5 metal can package with 3 pins suitable for PCB mounting.
Typical applications include industrial automation, electronics manufacturing, and laboratory instrumentation.
This sensor is manufactured in Japan, ensuring high reliability and quality standards.
The AMN1 sensor features a pin count of 3.
The AMN1 is part of the AMN1 series of motion sensors.
Its compact size makes it suitable for integration in space-constrained electronic devices or sensor modules.
It is suitable for integration with various electronic components and sensor IC applications.
