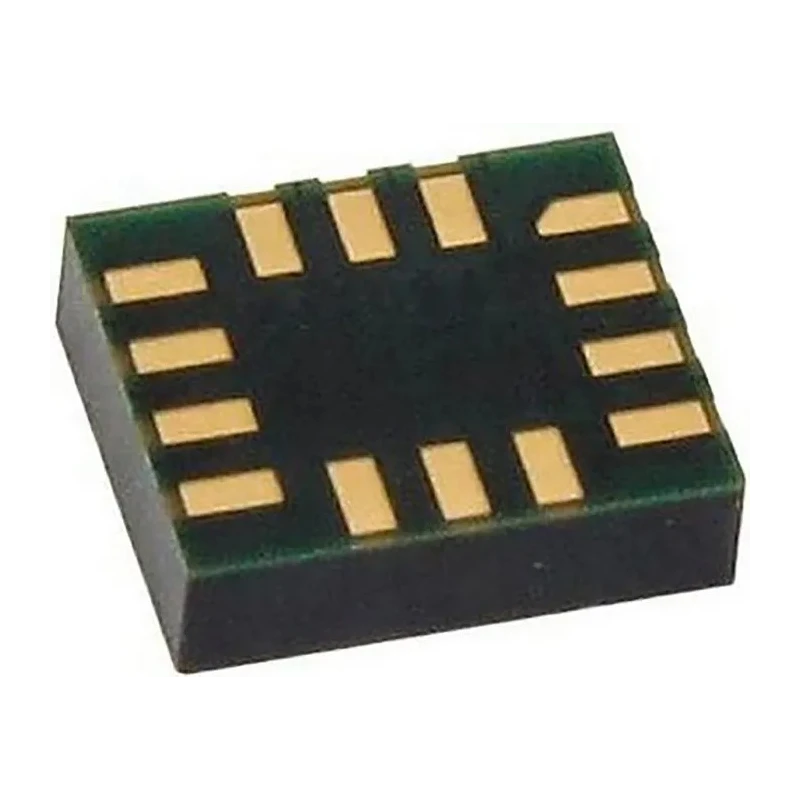

STMicroelectronics 3-Axis Gyroscope Magnetometer Accelerometer Surface Sensor 1.71V-3.6V I2C LGA 14-Pin LSM6DSLTR

STMicroelectronics LSM6DSLTR is a 3-axis inertial sensor integrating gyroscope, magnetometer, and accelerometer technologies in a compact 14-pin LGA surface mount package. It operates within a voltage range of 1.71 V to 3.6 V and features an I2C digital interface, making it suitable for advanced motion sensing and detection applications.

The sensor uses both analogue and digital technologies to deliver high accuracy motion data, low power consumption, and robust functionality. Key embedded features include a programmable FIFO buffer of 4 Kbyte, step counter, pedometer, tilt detection, and multiple standard interrupts such as free-fall and orientation detection. Its embedded temperature sensor helps to compensate for environmental variations.

This device is designed for enhanced gesture recognition, gaming, augmented reality, indoor navigation, and localization services. Its wide operating temperature range (-40°C to 85°C) and low supply current (650 μA) make it suitable for handheld and IoT connected devices requiring intelligent power management.

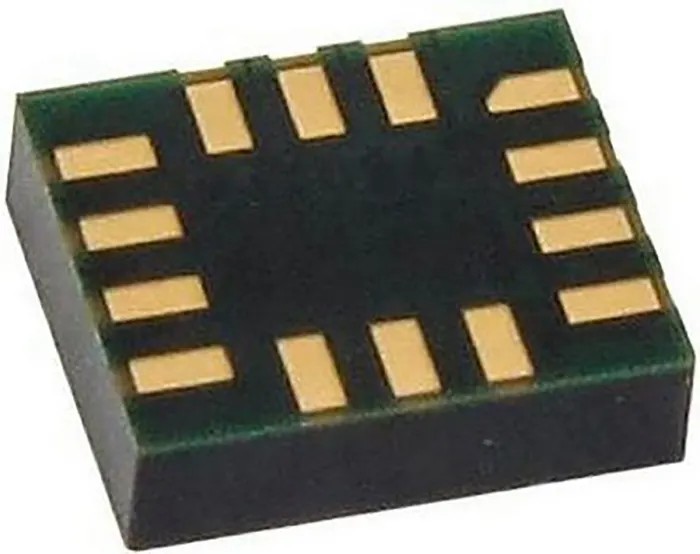

The compact mechanical dimensions of 2.5 mm length, 3 mm width, and 830 µm height facilitate PCB integration in high-density electronic systems. The LGM package, combined with resilient technology, enables reliable and efficient surface mounting.

This 3-axis motion sensor IC is especially suited for use in industrial tools, consumer electronics, automotive systems, and laboratory instrumentation where accurate motion tracking and gesture detection are critical.

This sensor supports 3-axis motion sensing with gyroscope, magnetometer, and accelerometer. Operates from 1.71 V to 3.6 V with I2C interface for versatile connectivity. Low power consumption at 650 μA enhances always-on usability.

Compact 14-pin LGA surface mount package measuring 2.5 mm x 3 mm x 830 µm. Standard interrupts for free-fall, wakeup, orientation, click, and double-click detection. Embedded temperature sensor improves measurement stability.

Maximum frequency response of 400 kHz with a sensitivity of 0.49 mg/LSB. Wide operating temperature range from -40°C to 85°C supports harsh environment use. Ideal for motion tracking, indoor navigation, IoT, vibration monitoring, and gesture recognition.
