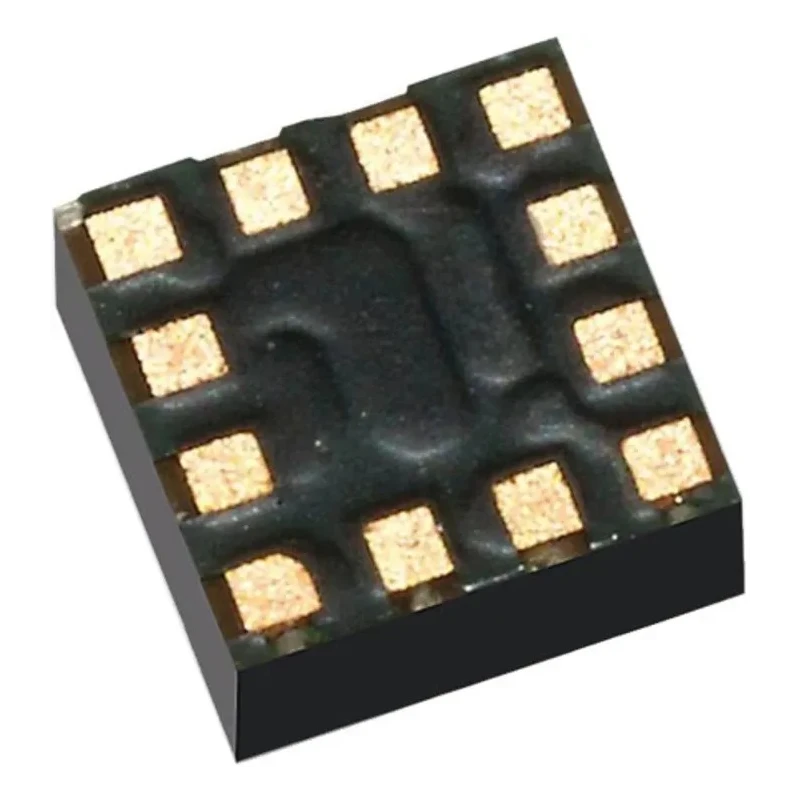

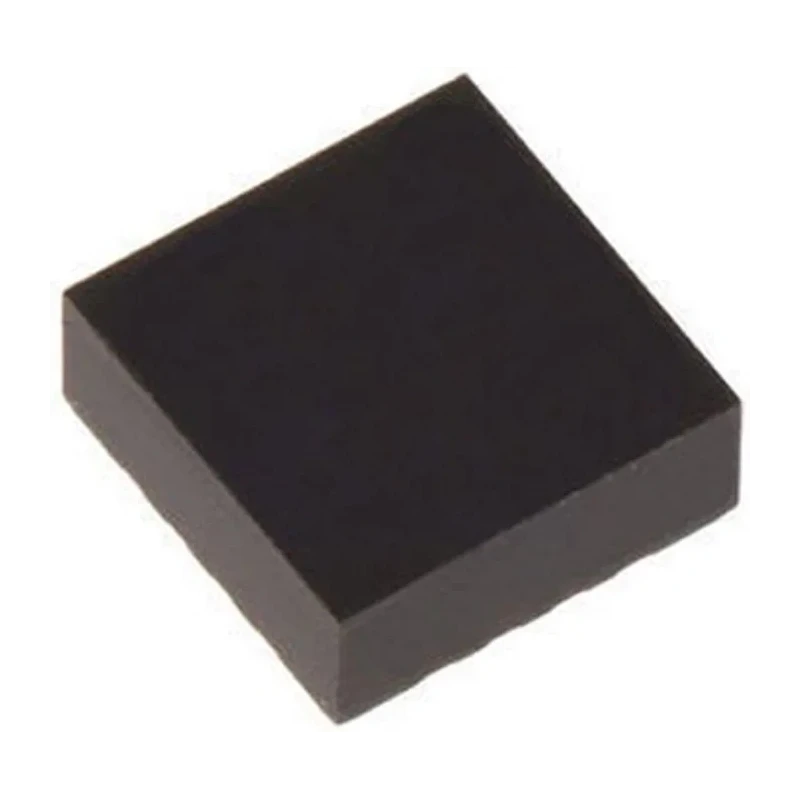

STMicroelectronics 3 Axis Surface Accelerometer Sensor 1.71 V to 3.6 V Supply, Serial Interfaces, LGA 12-Pin IIS2DHTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 2mm |
| Model | IIS2DHTR |
| SENSITIVITY | 207.55mg/digit |
| Technology | Analogue, Digital |
| Sensor Type | Accelerometer |
| Width | 2mm |
| Mount Type | Surface |
| Series | IIS2DH |
| Maximum Operating Temperature | 85°C |
| Package Type | LGA |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Interface Type | Serial-4 Wire, Serial-I2C, Serial-SPI, Serial-3 Wire |
| Pin Count | 12 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.71V |
| Supply Current | 11μA |
| Uses for these accelerometers include | Telematics and black boxes, in-dash car navigations, inclination measurement, anti-theft devices, intelligent power saving, vibration monitoring and compensation and motion activated functions |
Key Features
- Features a 3-axis accelerometer for precise motion sensing applications.
- Operates with supply voltages ranging between 1.71 V and 3.6 V.
- Supports Serial-4 Wire, Serial-I2C, Serial-SPI, and Serial-3 Wire interface types.
- Compact LGA 12-pin package with dimensions 2mm x 2mm x 1mm.
- High sensitivity of 207.55 mg/digit for accurate acceleration measurement.
- Wide operating temperature range from -40°C to 85°C for various environments.
- Ultra-low supply current of 11 μA to minimize power consumption.
- Suitable for portable devices and automotive applications excluding safety-critical uses.
Product Description
STMicroelectronics IIS2DHTR is a versatile 3-axis surface mount accelerometer sensor featuring both analogue and digital technology. It operates on a low supply voltage range of 1.71 V to 3.6 V, making it suitable for battery-powered and portable applications requiring efficient power usage.
Encased in a compact 12-pin LGA package measuring 2mm in length, 2mm in width, and 1mm in height, this sensor supports multiple serial communication protocols including Serial-4 Wire, Serial-I2C, Serial-SPI, and Serial-3 Wire. Its high sensitivity of 207.55 mg/digit allows precise motion detection.
Designed to function reliably across a broad temperature range from -40°C to 85°C, the IIS2DHTR is ideal for applications in telematics, black box systems, in-dash navigation, inclination measurement, anti-theft devices, intelligent power management, vibration monitoring, and motion-activated functions.
The accelerometer's ultra-low operating current of 11 μA enables extended battery life in portable devices such as smartphones and PDAs. While it is suitable for many automotive applications, it is not recommended for automotive safety applications.
Features a 3-axis accelerometer for precise motion sensing applications. Compact LGA 12-pin package with dimensions 2mm x 2mm x 1mm. Operates from a supply voltage of 1.71 V to 3.6 V with ultra-low 11 μA current. Supports Serial-4 Wire, Serial-I2C, Serial-SPI, and Serial-3 Wire communication interfaces.
High sensitivity level of 207.55 mg/digit enhances measurement accuracy. Wide operating temperature range ensures reliable performance in harsh environments. Applicable in industrial, automotive, laboratory, and consumer electronics sectors.
Not intended for automotive safety applications.
This sensor is a reliable component choice for developers seeking compact, power-efficient 3-axis accelerometers with flexible serial interfaces in their electronic designs. Explore more sensor ICs from STMicroelectronics and other leading manufacturers at EnvMart for enhanced project capabilities and industrial-grade solutions.
