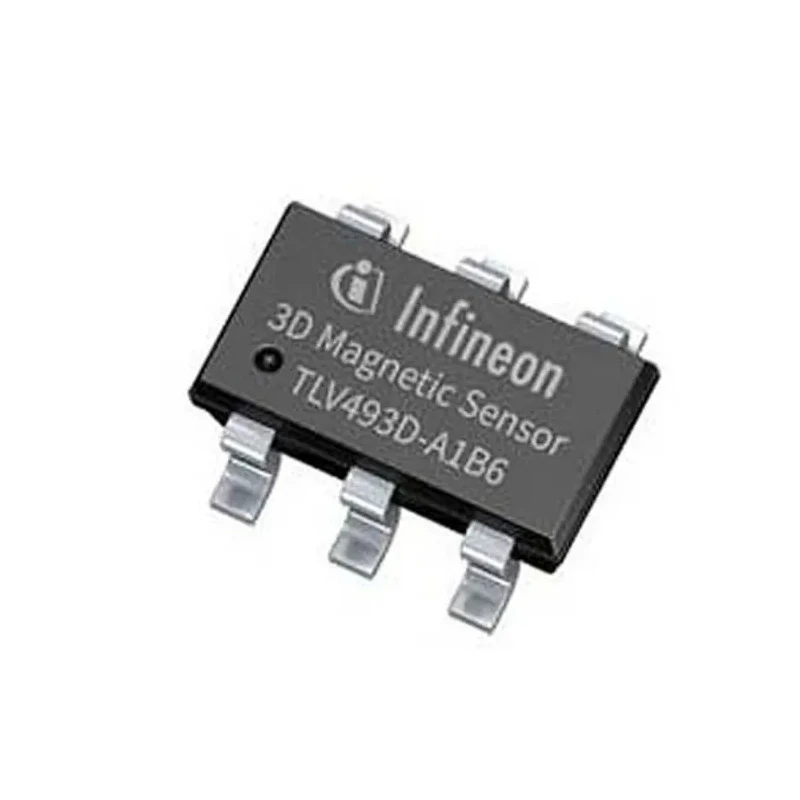

Infineon 3 Axis Absolute Orientation Magnetic Sensor Hall Effect I2C Interface 2.8V to 3.5V PG-TSOP-6-6-5 TLV493DA1B6HTSA2

Infineon TLV493DA1B6HTSA2 is a high precision 3 Axis Absolute Orientation Sensor based on Hall Effect technology, capable of detecting magnetic fields across three axes (x, y, and z). Operating with a supply voltage between 2.8 V and 3.5 V, it delivers reliable digital output through a standard I2C interface. The device is housed in a compact PG-TSOP-6-6-5 package with 6 pins, allowing it to be integrated into space-constrained electronic systems.

This sensor is engineered for ultra-low power consumption with a supply current of just 10μA, enabling it to operate efficiently in battery-powered applications. It features integrated temperature sensing to ensure accurate measurement performance in diverse thermal conditions ranging from -40°C to 125°C.

The sensor supports a maximum frequency response of 1000 kHz and a minimum frequency response of 100 kHz, making it suitable for dynamic and rapid sensing scenarios. Its magnetic sensing capability, combined with Hall Effect technology, makes it ideal for a broad range of industrial and commercial applications including control elements in joysticks, gaming paddles, e-meters, and white goods management.

The TLV493DA1B6HTSA2 sensor series belongs to Infineon's VA series of 3D magnetic sensors, which stand out for precise 3D sensing with very low power consumption. Its digital output and compact form factor facilitate integration into modern embedded systems for industrial, laboratory, HVAC, manufacturing, agricultural, and commercial uses.

Features a Hall Effect sensor for accurate magnetic sensing. Operates on a voltage range from 2.8 V to 3.5 V. Supports digital output via an I2C interface for easy integration. Compact PG-TSOP-6-6-5 package with 6 pins ensures small footprint.

Low power consumption with a supply current of 10μA. Wide operating temperature range from -40°C to 125°C. Maximum frequency response up to 1000 kHz for fast detection. Integrated temperature sensing enhances reliability in varying environments.

Suitable for applications such as joysticks, gaming controls, and white goods control elements. Explore the extensive range of Infineon sensors and components on EnvMart for high-performance electronic solutions.
