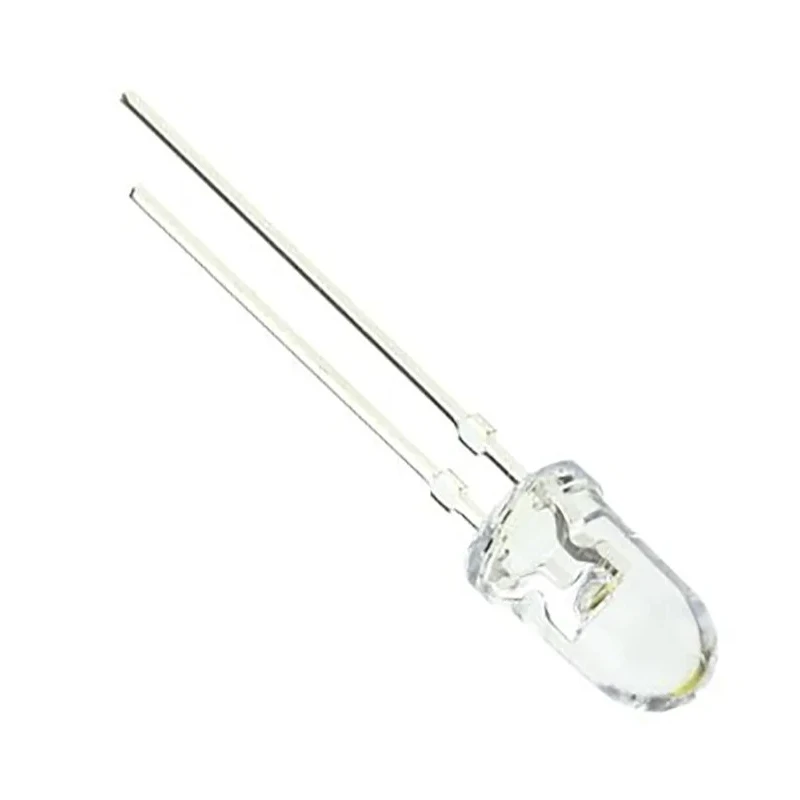

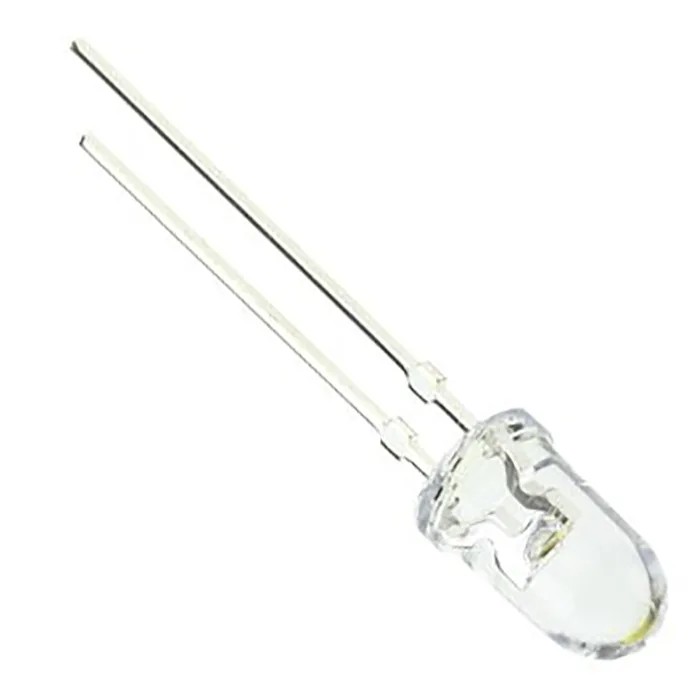

Broadcom Red LED 5 mm (T-1 3/4) Through Hole 1.6 V Forward Voltage HLMP-D155

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Red LED 5 mm (T-1 3/4) Through Hole 1.6 V Forward Voltage HLMP-D155

Name: Broadcom Red LED 5 mm (T-1 3/4) Through Hole 1.6 V Forward Voltage HLMP-D155
Brand: Broadcom
SKU: 137399
Price: 20.22 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HLMP-D155
Mount Type	Through Hole
Series	HLMP
Maximum forward current	300mA
Viewing angle	24 to 65 °
Package Type	5 mm (T-1 3/4)
Standards/Approvals	RoHS Compliant
LED Colour	Red
Dominant Wavelength	637nm
Forward Voltage	1.6V
Number of Pins	2
LED Luminosity	10 mcd
Maximum Power Dissipation	87mW
Lens Dimensions	5 x 9.19 mm
Lens Shape	Round
Lens Finish	Diffused, Untinted, Tinted, Non-Diffused
- HLMP-D150/D155	T-1 3/4 (5mm) package
- HLMP-K150/K155	T-1 (3mm) package

Key Features

Red LED with a dominant wavelength of 637 nm for clear signal indication.
5 mm (T-1 3/4) round package suitable for through-hole mounting.
Maximum forward current of 300 mA ensuring low power consumption.
Viewing angle ranges between 24 to 65 degrees for versatile applications.
Maximum power dissipation rated at 87 mW for efficient operation.
Compatible with CMOS/MOS and TTL logic circuits.
RoHS compliant ensuring environmentally safe manufacturing standards.
Ideal for low power circuits, battery powered equipment, and telecommunication indicators.

Product Description

Broadcom HLMP-D155 is a high-efficiency red LED with a 5 mm (T-1 3/4) through-hole package designed for electronic signaling and indication. It operates at a low forward voltage of 1.6 V and supports a maximum forward current of 300 mA, making it ideal for low power and battery-operated devices.

This LED employs AlGaAs/GaAs double heterojunction material technology, providing superior light output efficiency at minimal drive current. The deep red color has a dominant wavelength of 637 nanometers, delivering clear and distinct illumination.

Its round lens, measuring 5 x 9.19 mm, is available in diffused, untinted, tinted, and non-diffused finishes, allowing adaptability for various lighting effects. The wide viewing angle range of 24 to 65 degrees supports diverse application requirements in telecommunication indicators, battery powered equipment, and other low power circuit designs.

The HLMP-D155 is CMOS/MOS and TTL compatible, ensuring easy integration with common logic circuits. It is RoHS compliant, adhering to environmental standards for safe electronics manufacturing.

This product is supplied as a tape for efficient automated insertion into electronic manufacturing processes, improving production efficiency and reliability. Red LED with 637 nm wavelength for effective signal visibility.

5 mm (T-1 3/4) through-hole mounting style for easy installation. Low forward voltage and power dissipation enhance energy efficiency. Broad range viewing angle suited for various applications. Multiple lens finishes including diffused and tinted options.

Compatible with CMOS, MOS, and TTL logic devices. RoHS compliant for environmental safety. Utilizes advanced AlGaAs/GaAs material technology for high efficiency. Designed for use in telecommunications, low power, and battery-powered devices.

Packaged for automated manufacturing processes. Explore more in our Electronics Components category to find compatible LEDs and related accessories for your industrial or commercial electronic projects.
