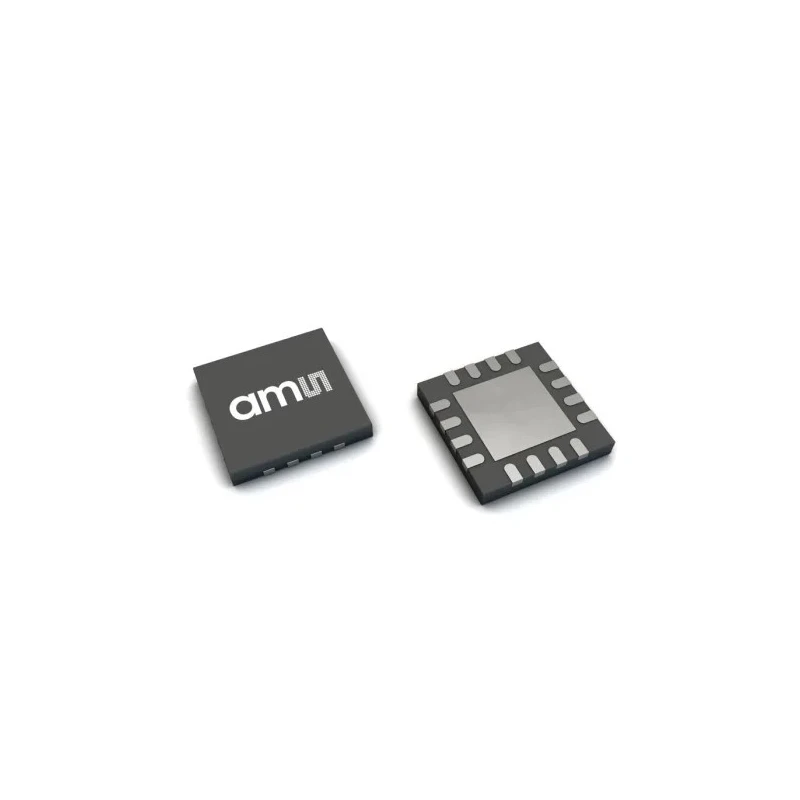

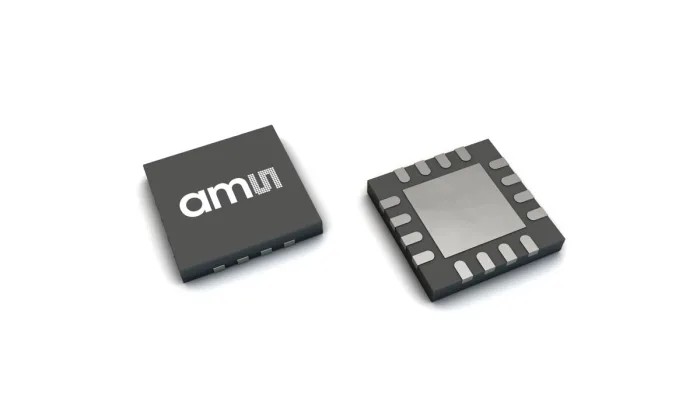

ams OSRAM 1 Axis Surface Magnetic Position Sensor 3 V to 3.6 V SPI Interface QFN 16-Pin AS5055A-BQFM

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 1 Axis Surface Magnetic Position Sensor 3 V to 3.6 V SPI Interface QFN 16-Pin AS5055A-BQFM

Name: ams OSRAM 1 Axis Surface Magnetic Position Sensor 3 V to 3.6 V SPI Interface QFN 16-Pin AS5055A-BQFM
Brand: ams OSRAM
SKU: 274259
Price: 6.91 USD
Availability: InStock



Category Position Sensor Brand ams OSRAM Condition New

Specifications

Country of Origin	Austria
Brand	ams OSRAM
Response time	500μs
Height	850μm
Length	4mm
Model	AS5055A-BQFM
Technology	Hall Effect
Sensor Type	Hall Effect Sensors
Width	4mm
Mount Type	Surface
Series	AS5055A
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Number of axis	1
Interface Type	SPI
Standards/Approvals	RoHS
Pin Count	16
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Supply Current	8.5mA
Magnetic Type	Rotary

Key Features

Single-chip on-axis magnetic rotary position sensor with integrated Hall element array.
High resolution ADC and smart power management controller included.
Operates within a temperature range of -40°C to 85°C.
Compact QFN package measuring 4 mm by 4 mm with 16 pins.
Magnetic field information and angle position transmitted via 3-wire or 4-wire SPI interface.
Low power consumption with an 8.5 mA supply current.
Response time of 500 microseconds for fast sensing.
Complies with RoHS standards and manufactured in Austria.

Product Description

ams OSRAM AS5055A-BQFM is a 1 axis surface magnetic position sensor designed for precise rotary position sensing. It features an integrated Hall effect sensor array and a high resolution ADC, allowing accurate angle measurement and magnetic field detection with low voltage operation between 3 V and 3.6 V.

Encased in a compact QFN 16-pin package measuring 4 mm by 4 mm with a height of 850 microns, this sensor offers a low power consumption of 8.5 mA and supports communication via a 3-wire or 4-wire SPI interface. It is suitable for environments with operating temperatures ranging from -40°C to +85°C.

The sensor provides data such as angle position, alarm bits, and magnetic field strength to the microcontroller, making it ideal for industrial automation, laboratory instrumentation, and other applications requiring high-resolution magnetic position feedback. Its fast response time of 500 microseconds ensures real-time position tracking for dynamic systems.

Manufactured in Austria, the AS5055A-BQFM sensor complies with RoHS environmental standards and offers reliable performance without automotive certification. Single-chip integrated Hall element array for accurate position sensing.

SPI interface communication with microcontrollers. Wide temperature operating range from -40°C to 85°C. Compact QFN 16-pin 4x4x0.85 mm package. Low supply current of 8.5 mA for energy-efficient operation. High-speed response time of 500 microseconds for fast feedback.

RoHS compliant and Austrian origin.

This magnetic Position Sensor is ideal for use in electronic components, power connectors, semiconductor sensor ICs, and motion sensor IC applications within industrial, laboratory, HVAC, manufacturing, and research settings.

Explore more sensors and components at EnvMart to enhance your designs with precision sensing solutions.
