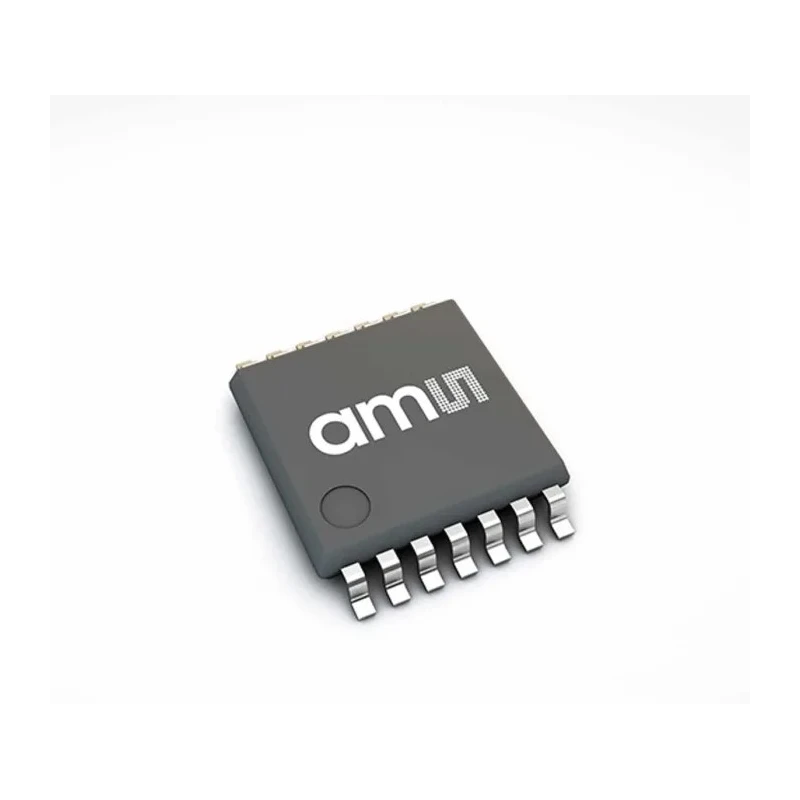

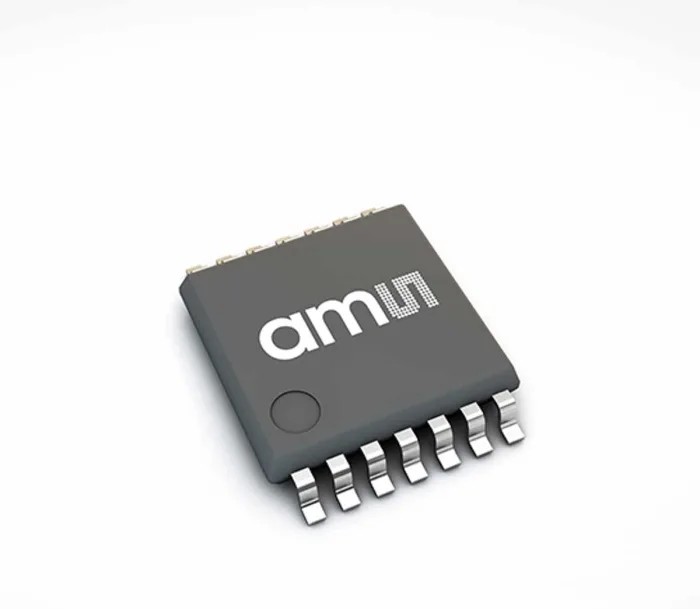

ams OSRAM 1 Axis Surface 14-Bit On-Axis Magnetic Rotary Position Sensor 3V-7V SPI PWM UVW TSSOP 14-Pin AS5047P-ATSM

ams OSRAM AS5047P-ATSM is a high-precision, 1-axis surface mount magnetic rotary Position Sensor designed for accurate angle measurement in demanding industrial and automotive applications. Operating over a supply voltage range from 3V to 7V, this 14-bit sensor offers exceptional angle resolution across a full 360-degree rotation.

The sensor employs CMOS Hall effect technology with omnipolar magnetic sensing and features advanced dynamic angle error compensation (DAEC™) to achieve nearly zero latency angle updates, enabling reliable operation at speeds up to 28,000 rpm. It suppresses disturbances from homogenous external magnetic fields, ensuring precise measurement in challenging environments.

The AS5047P-ATSM communicates using SPI, PWM, and UVW interfaces, facilitating integration with various microcontroller systems. It outputs 14-bit absolute angle data and incremental ABI signals with programmable resolution, ranging from 25 pulses per revolution to 1024 pulses per revolution depending on mode.

Packaged in a compact 14-pin TSSOP surface mount form factor measuring 5mm x 6.4mm x 1.2mm, it is robust for automotive grade use, complying with AEC-Q100 qualification and meeting IPC/JEDEC J-STD-020 standards. The wide operating temperature range of -40°C to 125°C expands its suitability for harsh operational environments.

This sensor is ideal for applications in industrial automation, robotics, motor control, HVAC systems, and automotive steering angle detection. Its high accuracy, low power consumption, and automotive-standard compliance provide reliable performance in critical systems requiring precise rotary position feedback.

Features high-resolution 14-bit angle measurement over full 360 degrees. Operates up to high speeds of 28,000 rpm with dynamic angle error compensation. Provides incremental ABI signals with configurable resolution for precise position tracking.

CMOS technology with omnipolar magnetic sensing and surface mount TSSOP 14-pin package. Extended temperature range from -40°C to 125°C suitable for automotive and industrial applications. Low supply current consumption of 15mA and compliance with automotive standards AEC-Q100.

Compact dimensions of 5mm length, 6.4mm width and 1.2mm height. Discover more electronic components and precision sensors by browsing the Sensors category at EnvMart.
