onsemi 1 2-Input AND Logic Gate 5-Pin TSOP M74VHC1GT08DTT1G

onsemi M74VHC1GT08DTT1G is a high-speed 1 2-input AND logic gate designed within the 74VHC1G logic family. It operates at a voltage range from 2.0 to 5.5 volts, offering advanced 74VHC high-speed silicon-gate CMOS technology. The device features low power consumption typical of CMOS devices while delivering performance comparable to Bipolar Schottky TTL devices.

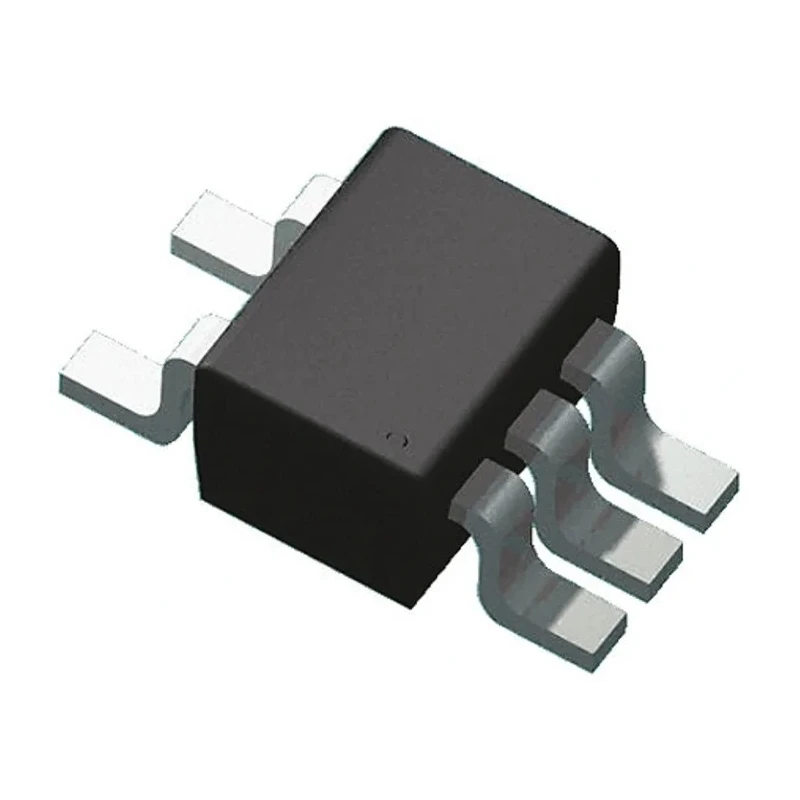

This logic IC is housed in a compact 5-pin TSOP package, making it suitable for applications requiring efficient PCB space utilization.

The device supports 7 V tolerant inputs, enhancing its interfacing flexibility within mixed voltage systems. It operates reliably in temperature ranges from -55°C to 125°C, suitable for industrial and commercial electronics environments.

Typical applications include digital logic implementations in industrial automation, consumer electronics, automotive electronics, and other electronic system designs requiring reliable AND logic operations.

Operates from 2.0 to 5.5 V supply voltage providing versatile integration options. Single 2-input AND gate functionality for streamlined logic operations. Compact 5-pin TSOP surface-mount package for space-saving designs.

Industrial operating temperature range for robust reliability. 7 V tolerant inputs facilitate mixed voltage interfacing. Low power consumption with high-speed CMOS logic operation. Maximum output currents: -8 mA high-level, 8 mA low-level ensures proper driving capabilities.

Logic family VHC with CMOS output buffer type ensures compatibility with related devices.

This product fits seamlessly within the semiconductor and logic IC categories, widely used in electronic component assemblies. For further selections, exploring the Logic Gates category on EnvMart provides numerous complementary components.
