Nexperia Quad 2-Input NOR Logic Gate SOIC, 14-Pin, High-Speed CMOS, Surface Mount 74HC02D,652

Free Delivery in India | Lowest Global Shipping Charges

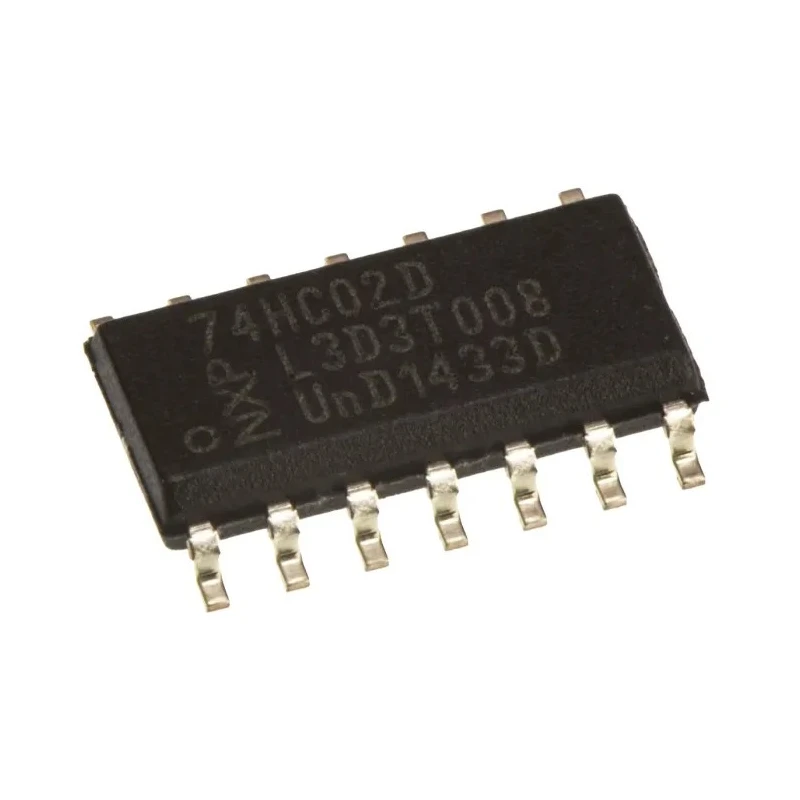

Nexperia Quad 2-Input NOR Logic Gate SOIC, 14-Pin, High-Speed CMOS, Surface Mount 74HC02D,652

Name: Nexperia Quad 2-Input NOR Logic Gate SOIC, 14-Pin, High-Speed CMOS, Surface Mount 74HC02D,652
Brand: Nexperia
SKU: 90055
Price: 0.21 USD
Availability: InStock



Category Logic Gates Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	8.75mm
Model	74HC02D,652
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	NOR
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	23ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2
Nexperia 74HC02D,652, Quad 2-Input NOR Logic Gate, 14-Pin SOICBrand	Nexperia

Key Features

Features quad 2-input NOR gates for versatile logic design.
Operates with supply voltage range from 2V to 6V.
Surface mount SOIC 14-pin format suited for PCB manufacturing.
Based on 74HC CMOS logic family ensuring fast switching and low power consumption.
Maximum propagation delay time of 23ns for efficient operation.
Handles high level output current up to -5.2mA.
Stable from -40°C to 125°C, ensuring wide temperature performance.
CMOS input compatibility provides signaling flexibility.

Product Description

Nexperia 74HC02D,652 combines four independent 2-input NOR gates into a compact 14-pin SOIC package for advanced digital electronics and embedded logic applications. As part of the 74HC CMOS logic family, this IC delivers high-speed operation along with low power consumption, making it ideal for modern circuit design requirements.

Designed for surface mount installation, the SOIC package ensures straightforward integration into PCBs, benefiting automated assembly and efficient manufacturing workflows. The quad NOR gate configuration offers flexibility in constructing a range of digital functions while maintaining robust electrical characteristics.

Quad 2-input NOR gate with a 14-pin SOIC form factor. Operates between 2V - 6V supply for broad compatibility. Maximum propagation delay time: 23ns. CMOS logic family for low power and high efficiency. Wide operating temperature from -40°C to 125°C.

High-level output current capability up to -5.2mA. Surface mount design simplifies PCB integration. No Schmitt trigger input, optimized for standard logic operations.

The Nexperia 74HC02D,652 is commonly deployed in industrial automation, control systems, signal processing, and laboratory instrumentation. Its reliability under varied environmental conditions and compatibility with both input/output CMOS make it suitable for complex digital logic chains.

Suitable for industries including electronics manufacturing, R&D labs, automated systems, and testing equipment. The SOIC package ensures ease of handling and performance consistency across production batches.

Discover more advanced semiconductor and logic gate solutions in the EnvMart Logic Gates category and explore Nexperia’s reliable IC product range for both commercial and industrial applications.
