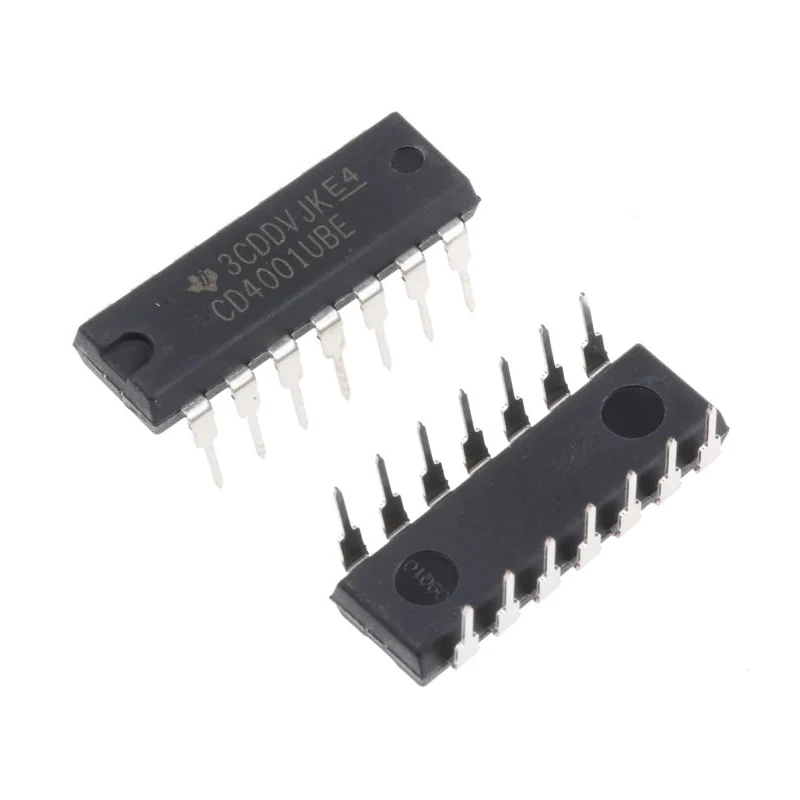

Texas Instruments 4 2-Input NOR Logic Gate 14-Pin PDIP CD4001UBE

Texas Instruments CD4001UBE is a 4 2-Input NOR Logic Gate integrated circuit housed in a 14-pin PDIP package. Designed with CMOS technology, it offers reliable logic gate operation with low power consumption and noise immunity. Operating over a wide voltage range from 3V to 18V, it can be used in various digital logic circuit applications typically found in semiconductor and electronic components industries.

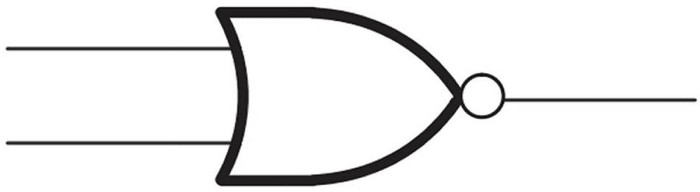

The IC contains four independent 2-input NOR gates, allowing multiplexed logic operations within a compact footprint. Its through-hole mounting style with a standard PDIP package ensures easy integration into PCB designs. The propagation delay time of 80ns at the specified load capacitance allows for adequate switching speed in logic circuits requiring temporal precision.

This device is capable of functioning within a temperature range of -55°C to 125°C, supporting robust industrial and commercial environments. While it does not feature Schmitt trigger inputs, it provides consistent logic output currents of -4.2mA (high level) and 4.2mA (low level), suitable for driving typical digital loads.

The chip dimensions of length 19.3mm and height 4.57mm aid compact circuitry setups and efficient board layouts. This 4000 series CMOS logic family device complies with standard operational parameters without special automotive certifications, making it ideal for general-purpose logic gate usage.

Applications include digital logic design, signal processing circuits, embedded systems, and educational electronic projects. Operates over a wide voltage range of 3V to 18V. Four independent 2-input NOR gates per package.

CMOS input type ensuring low power. Standard 14-pin PDIP package for through-hole mounting. Temperature range from -55°C to 125°C for stability. Typical propagation delay of 80ns under load. High and low-level output current of 4.2mA magnitude.

Compact length and height dimensions for PCB design. Suitable for a variety of digital and semiconductor applications. Explore the full range of semiconductor Logic Gates and components on EnvMart for optimized electronic design solutions.
