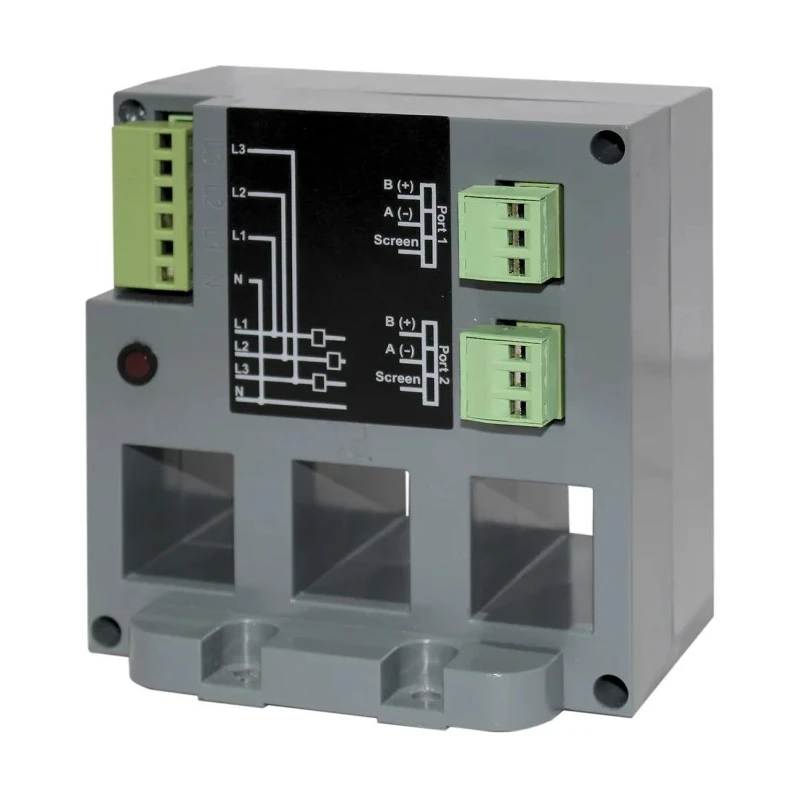

HOBUT 3 Phase Multi-Function AC Power Transducer Energy Meter C-TRAN-100A

HOBUT C-TRAN-100A 3 Phase Energy Meter is a high-precision combined multi-function AC power transducer integrated with a 3 phase current transformer, ideal for industrial and commercial energy measurement and monitoring applications. It replaces traditional multi-function meters and separate current transformers with an all-in-one unit featuring programmable capabilities and an RS485 output for seamless data communication.

The meter measures key electrical parameters including phase and line voltages, phase currents, frequency, active, reactive, and apparent power per phase and system-wide, as well as energy demands and power factor. It supports complex industrial automation environments with two communication ports, one fixed format port for parameter setting and measurement retrieval, and a second port using Modbus protocol for extensive system integration.

Built to endure operational challenges, the meter functions reliably in temperatures ranging from 0°C to 60°C, complying with multiple international standards such as BS 4889, BSEN 60688, CE, cUL, EN 61010-1, EN 61326-2, IEC 1036, IEC 359, IEC 60044-1, IEC 688, IEC 801, EN 55020, and UL certifications.

The physical design features a cutout size of 105mm by 105mm with a depth of 59mm, facilitating straightforward panel mounting. The digit height of 85mm ensures clear visibility of readings. With accuracy class 0.2 as per IEC688, it provides reliable and precise readings critical for power management and cost control in industrial and utility applications.

Manufactured in the United Kingdom, the C-TRAN-100A model is suited for a range of sectors including manufacturing, energy management, HVAC systems, and process control where monitoring of electrical energy parameters is essential. This meter effectively supports operational efficiency, energy conservation, and automation systems.

Accurate measurement includes voltage, current, power, frequency, power factor, and demand parameters. Dual communication ports with Modbus support enable integration with automation and data logging systems. EEPROM memory preserves energy and calibration data across power cycles.

Multiple phase current options including 100A make it adaptable to different electrical setups. Compact design and internationally recognized certifications enhance reliability and ease of installation. Explore the HOBUT range of industrial measuring instruments on EnvMart for reliable and efficient energy management solutions.
