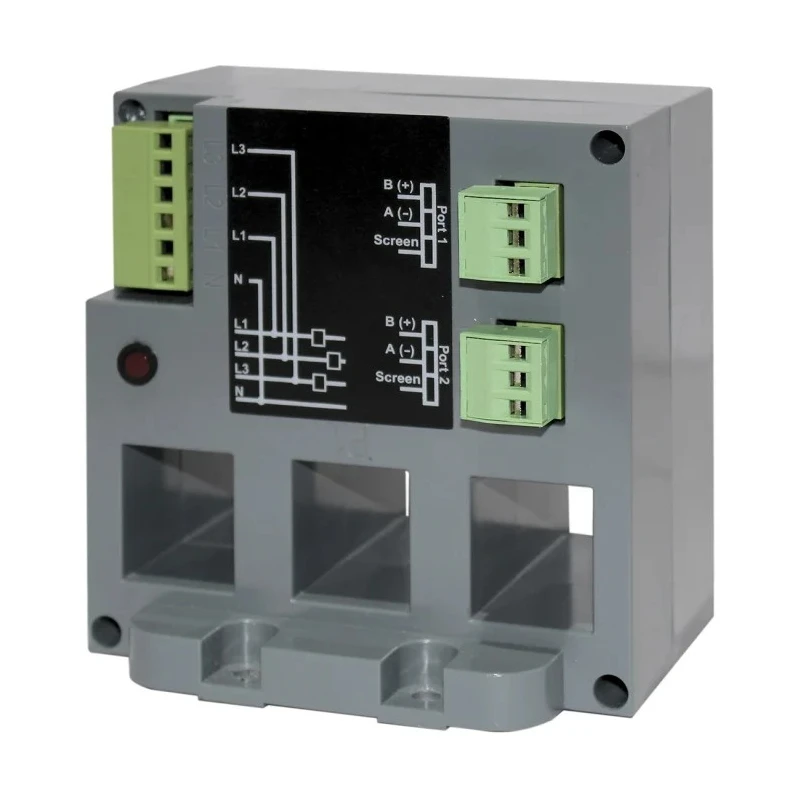

HOBUT 3 Phase Multi Function AC Power Transducer Energy Meter with RS485 Output C-TRAN-160A

HOBUT C-TRAN-160A is a combined 3 Phase multi-function AC power transducer and current transformer designed for comprehensive electrical energy monitoring. This energy meter features built-in power metering capability with RS485 output enabling integration with PLCs, RTUs, and data loggers for real-time monitoring and control in industrial, commercial, and automation settings.

Featuring non-volatile EEPROM memory, the meter securely stores energy registers, current and voltage ratios, and calibration data ensuring reliable operation even during power interruptions. It includes two communication ports: Port 1 supports fixed data formats with adjustable baud rate and endian format, while Port 2 uses Modbus protocol for extensive control and data retrieval.

The C-TRAN-160A supports measurements of phase voltage, line voltage, phase current, frequency, active, reactive, and apparent power for each phase as well as system totals. Additionally, it offers energy import measurements (W.h, VAr.h, VA.h), demand measurements, power factor, neutral current, and operational hours based on voltage.

Designed in compliance with numerous international standards including BS 4889, BSEN 60688, CE, cUL, EN 61010-1, EN 61326-2, IEC 1036, IEC 359, IEC 60044-1, IEC 688, IEC 801, EN 55020, and UL, it ensures high accuracy and safety in demanding electrical installations.

Its compact design with cutout dimensions 105mm by 105mm, digit height of 85mm, and a depth of 59mm enables easy installation in a variety of panels. Operating temperature ranges from 0°C to 60°C, making it suitable for diverse environments.

Typical applications include industrial automation, process control, electrical energy monitoring, HVAC systems, manufacturing facilities, and electrical distribution management. Equipped with RS485 communication output for seamless data integration.

Non-volatile EEPROM retains energy registers, calibrated data, and current/voltage ratios. Dual communication ports, including Modbus protocol for host connection. Measures voltage, current, frequency, active, reactive, and apparent power on phases and system.

Supported operating temperature range from 0°C to 60°C. Complies with multiple international standards such as BS 4889, CE, UL, IEC variants. Multiple installation options with a compact depth of 59mm and cutout dimensions of 105mm square.
