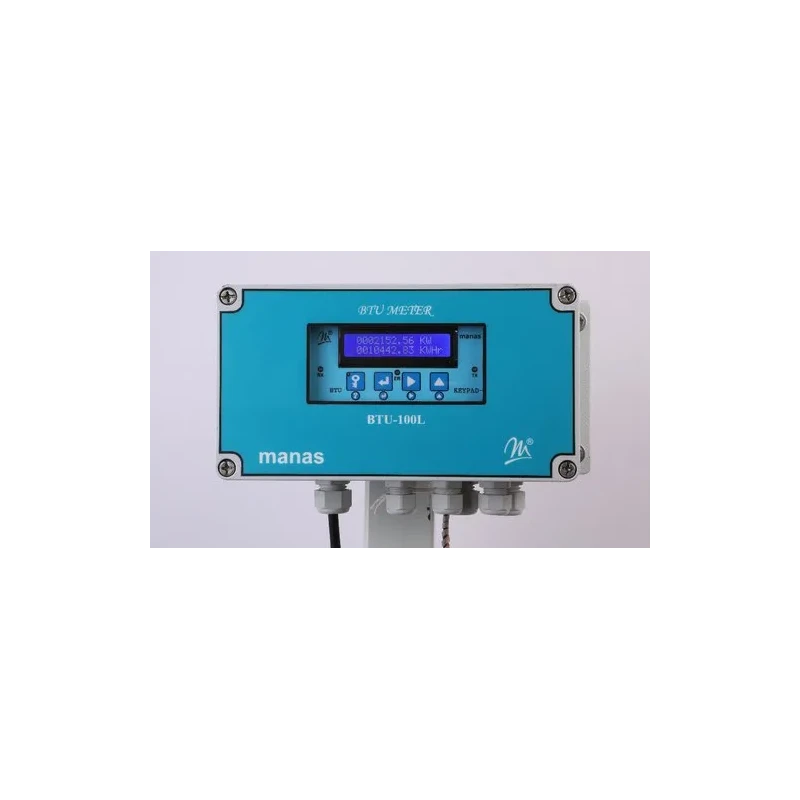

Manas Chiller Application BTU Meter BTU-100L

Name: Manas Chiller Application BTU Meter BTU-100L
Brand: ESPL
SKU: ABBCZ
Price: 11.59 USD
Availability: InStock



SKU ABBCZ Category Energy Meter Brand ESPL Condition New

Specifications

Display Type	16 x 2 LCD
Power Supply	4-20 mA
Dimension	220mm (L) x 120mm (H) x 90mm (D)
Applications	Chiller Application
Model	BTU-100L
Ingress Protection	IP65 Equivalent
Approx readings	3000 for normal logging & approx 5500 readings for extended logging

Key Features

Easy to use
Easy to install
Great performance

Product Description

Manas Chiller Application BTU Meter, BTU meters measure the energy content of liquid flow in British thermal units (BTU), a basic measure of thermal energy. BTU meters are used in chilled water systems for both commercial and industrial and office buildings. These meters are used to bill users for energy usage.Other Details:Manas make british thermal unit (BTU) calculator consists of pair of temperature sensor with integral energy computing capability unit to calculate net heat consumedAlso used for HVAC applications Net Heat= QM X (T1-T1)where,QM: Flow rate of cooling mediumT1: Inlet temperatureT2: Outlet temperature Specifications:4-20 mA output proportional to power output.16x2 LCD, 9 digits for total energy & 5 digits for instantaneous power.The engineering unit can be selected as either KW & KWHr or BTU/Hr & BTU.Communication port RS 232/485 is available with MODBUS RTU.Main Features:Based on calculations of thermal power & energy consumed through measurement of flow, temperature difference of inlet & outlet of the medium.Password protection on all programming modes (except display mode) to avoid wrong programming by an unauthorized personBackup of totaliser on power failure in non-volatile memoryBuzzer indication for faults/Error with blinking LED (Programmable)

Highly durable

Manas Chiller Application BTU Meter BTU-100L

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The BTU-100L meter measures the energy content of liquid flow in British thermal units (BTU), which is essential for assessing thermal energy in chilled water systems.

It calculates net heat using the formula Net Heat = QM X (T1-T2), where QM is the flow rate of the cooling medium, T1 is the inlet temperature, and T2 is the outlet temperature.

The BTU-100L features a 16 x 2 LCD display, which shows total energy readings in 9 digits and instantaneous power in 5 digits.

This model operates with a power supply of 4-20 mA, which is proportional to the power output.

The BTU-100L is specifically designed for chiller applications, making it suitable for both commercial and industrial chilled water systems.

The meter has an ingress protection rating equivalent to IP65, indicating it is protected against dust and water jets.

The dimensions of this model are 220mm in length, 120mm in height, and 90mm in depth.

It can log approximately 3000 readings for normal logging and about 5500 readings for extended logging.

Yes, it includes password protection on all programming modes except display mode to prevent unauthorized access.

It is equipped with a communication port /485 compatible with MODBUS RTU for data communication.

In the event of a power failure, the totaliser data is backed up in non-volatile memory to prevent data loss.
