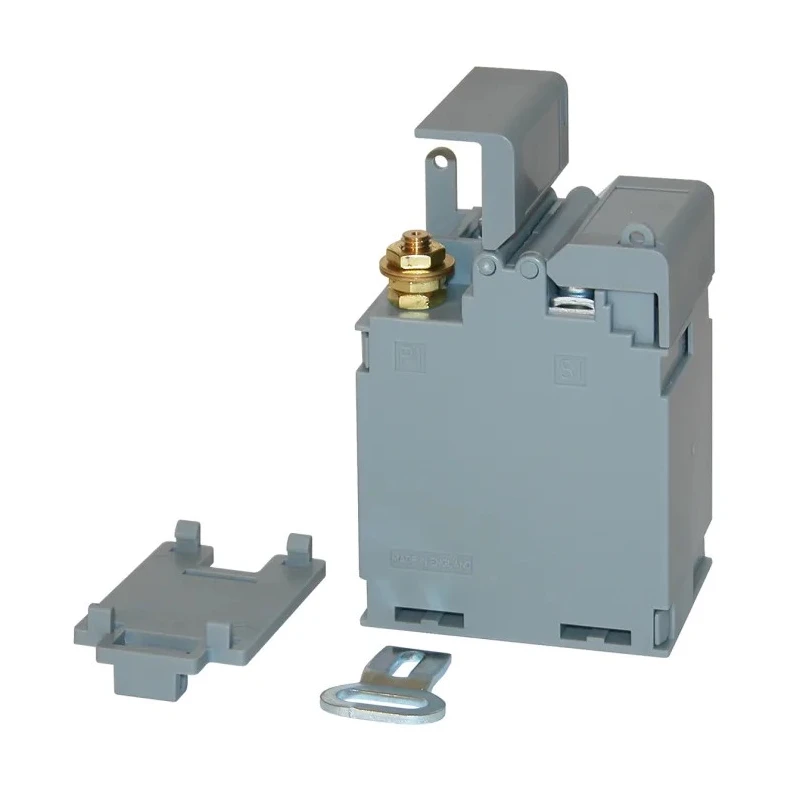

HOBUT 16 Type 160 Series Current Transformer 50A, 5 VA Power Rating, DIN Rail Mount CT160-5-K8

The HOBUT CT160-5-K8 belongs to the 16 (Type 160) series of compact base mounting current transformers designed for industrial and automation use. It is engineered to transform primary currents up to 50A into a standardized secondary current of 1A, with a power rating of 5 VA. This device features a robust moulded case that provides protection and longevity in demanding environments.

Featuring M6 screw terminals with built-in sealable terminal covers, the current transformer enhances safety and ease of wiring. It mounts reliably on DIN rails, facilitated by supplied mounting clips and feet. The transformer’s narrow 6 mm width and compact dimensions (101mm length, 43mm depth) make it suitable for space-constrained panel installations.

Operating within a temperature range of 30°C to 85°C, the CT160-5-K8 ensures dependable performance in a wide range of industrial settings, including factory automation, process control, and electrical measurement systems. The device conforms to internationally recognized standards such as IEC 60044-1 and BS 7626, ensuring compatibility and compliance.

This current transformer has a rated system voltage of 0.72/3 kV and supports continuous current operation at 1.2 times the rated current, providing a safety margin for transient overloads. Made in the United Kingdom, the unit guarantees high manufacturing standards and reliability.

Compact moulded case design suitable for industrial applications. Primary current rating of 50A with secondary current 1A for standard transformation. Equipped with M6 screw terminals and sealable terminal covers for secure connections.

DIN Rail mounting offers flexible and secure installation options. Wide operating temperature range from 30°C to 85°C for harsh environments. Compliance with IEC 60044-1 and BS 7626 standards for safety and quality assurance.

Rated system voltage of 0.72/3 kV and continuous current rating of 1.2 x primary current. Narrow 6 mm width and compact size for easy panel integration. Manufactured in the United Kingdom ensuring product quality and durability.

This HOBUT current transformer is ideal for industrial automation, process control systems, electrical power monitoring, and other commercial electrical applications requiring accurate current measurement and transformation. For more related products, explore the Current Transformers category at EnvMart.
