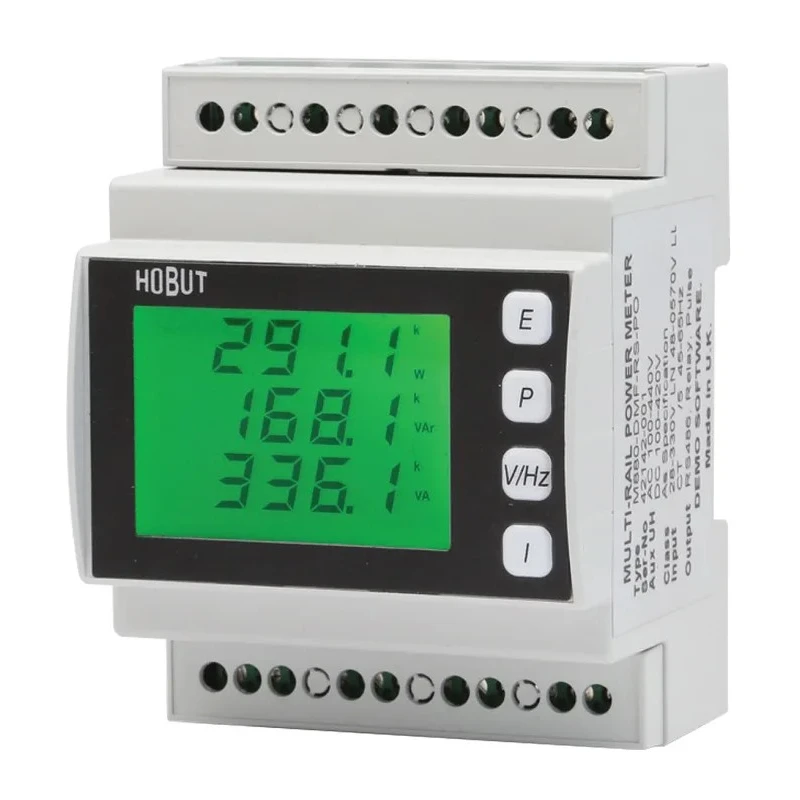

HOBUT 3 Phase Electronic LCD Energy Meter with Large Display, Programmable CT and VT Ratios M880-DMF-RS-PO

HOBUT M880-DMF-RS-PO is a 3 Phase Electronic LCD Energy Meter designed for precise power measurement in industrial and commercial environments. It features a large, easy-to-read LCD display with the option to select from seven screen colours to suit different lighting conditions and preferences. The meter supports programmable current transformer (CT) and voltage transformer (VT) ratios, making it adaptable for various single and three-phase electrical systems.

The energy meter is DIN Rail mountable with compact dimensions of 45.5 mm cutout height, 72 mm cutout width, and 48.3 mm depth, facilitating straightforward installation in control panels. It includes a pulse output and a set point relay trip output that can be assigned to eight different measurements, allowing integration into complex monitoring and control systems. The built-in RS485 interface supports Modbus communication protocol for remote monitoring and automation.

Security code access ensures that programming changes are authorized, improving operational safety. The device has a wide operating temperature range from -20°C to 70°C and meets CE and several IEC standards including IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 to provide strong electromagnetic compatibility and robustness in industrial environments.

Applications include use in low, medium, and high voltage control panels, building management systems, and power management solutions, providing accurate energy monitoring and control. The meter is manufactured in the United Kingdom, ensuring high quality and compliance with international standards.

The meter features a large LCD display with selectable screen colours. Programmable CT and VT ratios offer flexible installation options. Includes RS485 (Modbus) and pulse output for communication. DIN Rail mounting allows easy integration in panels.

Security code access protects programming settings. Suitable for diverse industrial and commercial energy monitoring applications. Conforms to CE and multiple IEC electromagnetic compatibility standards. Explore more industrial measuring solutions in the Energy Meter category at EnvMart for reliable and advanced energy measurement equipment.
