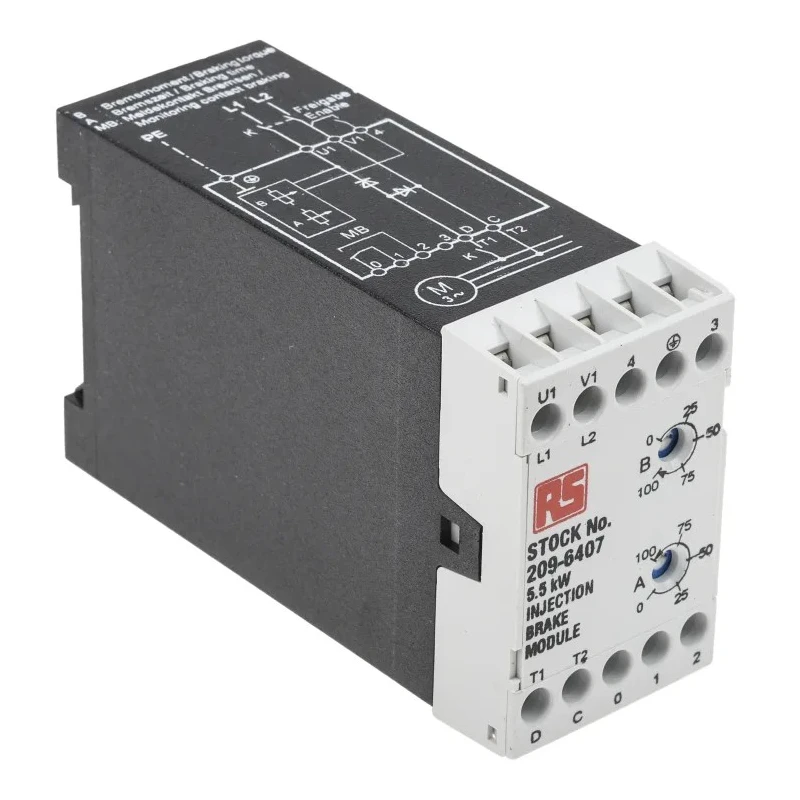

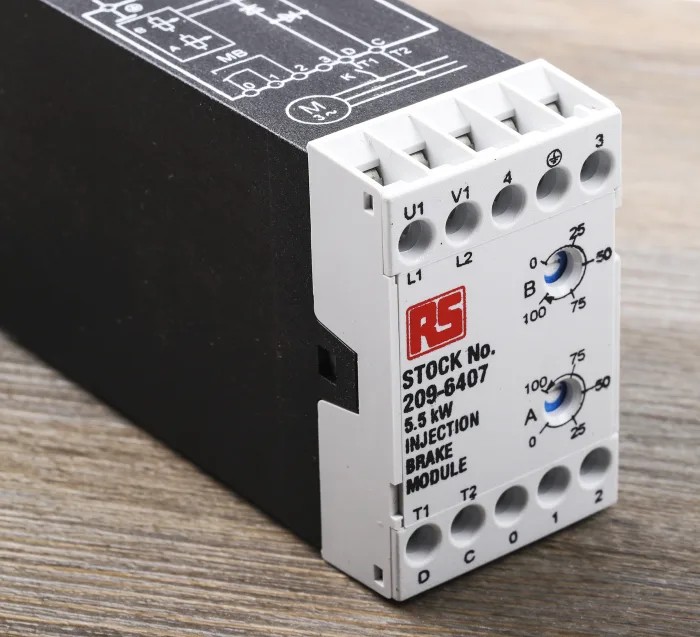

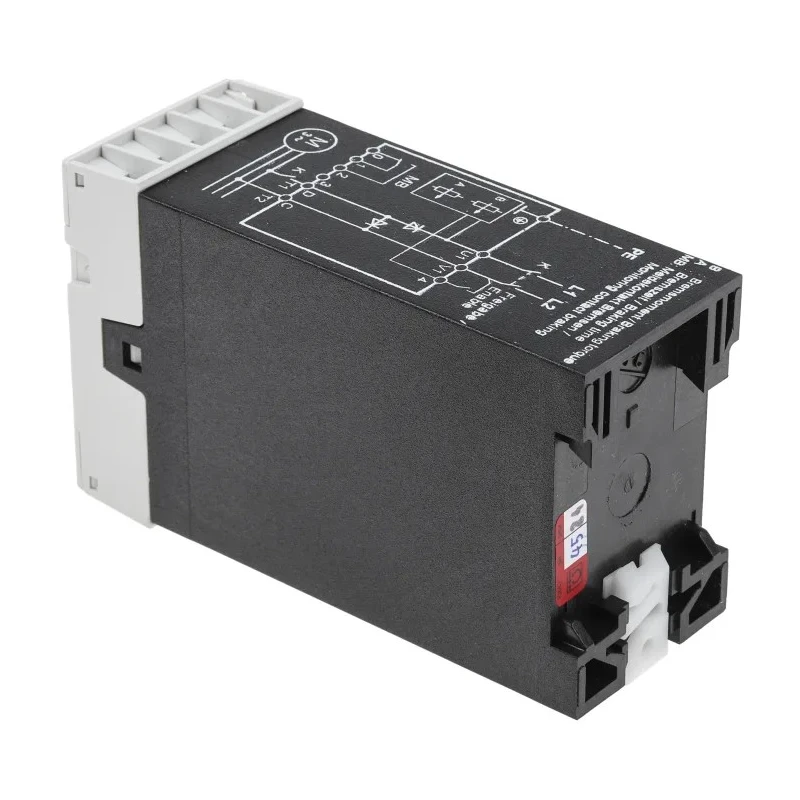

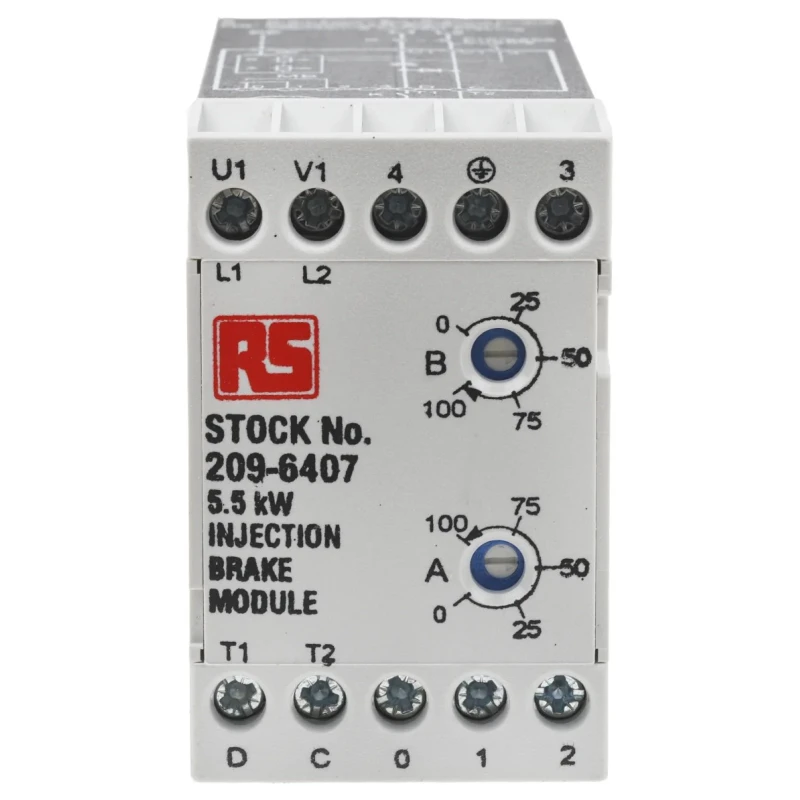

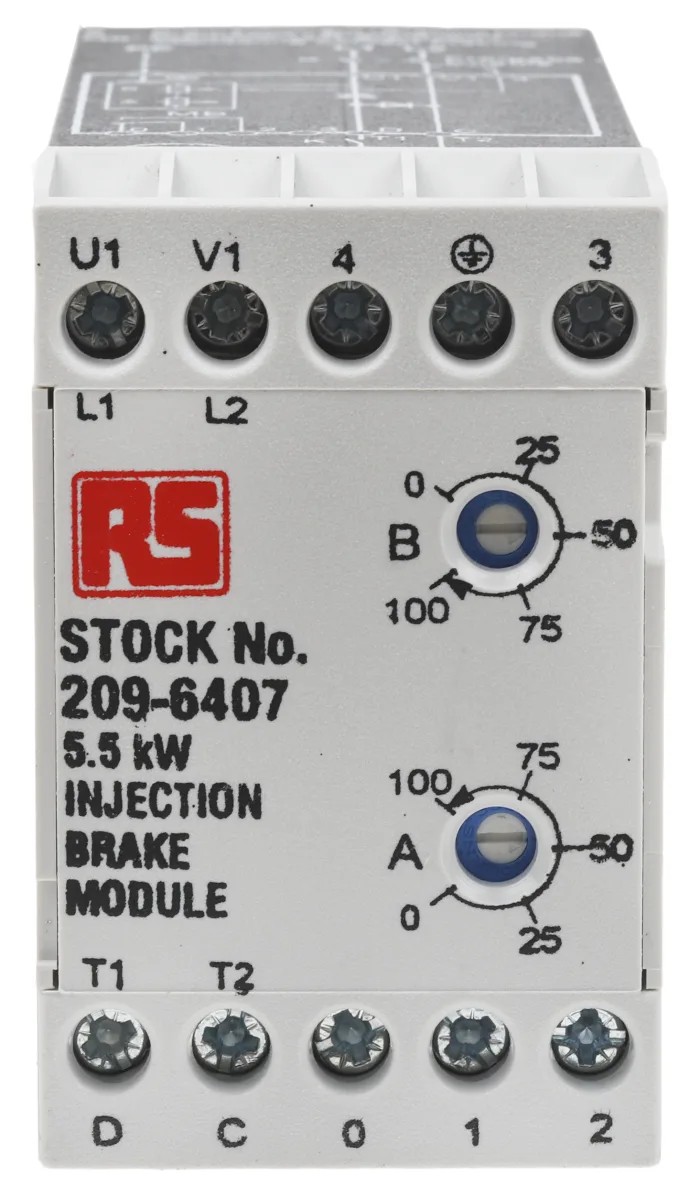

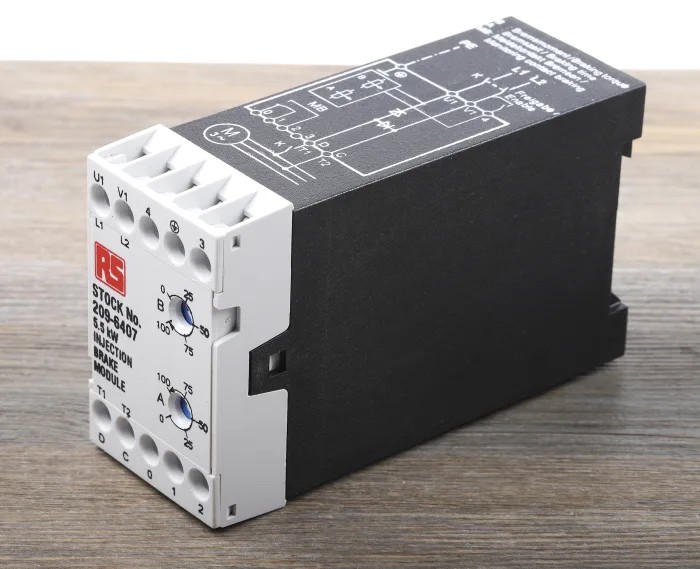

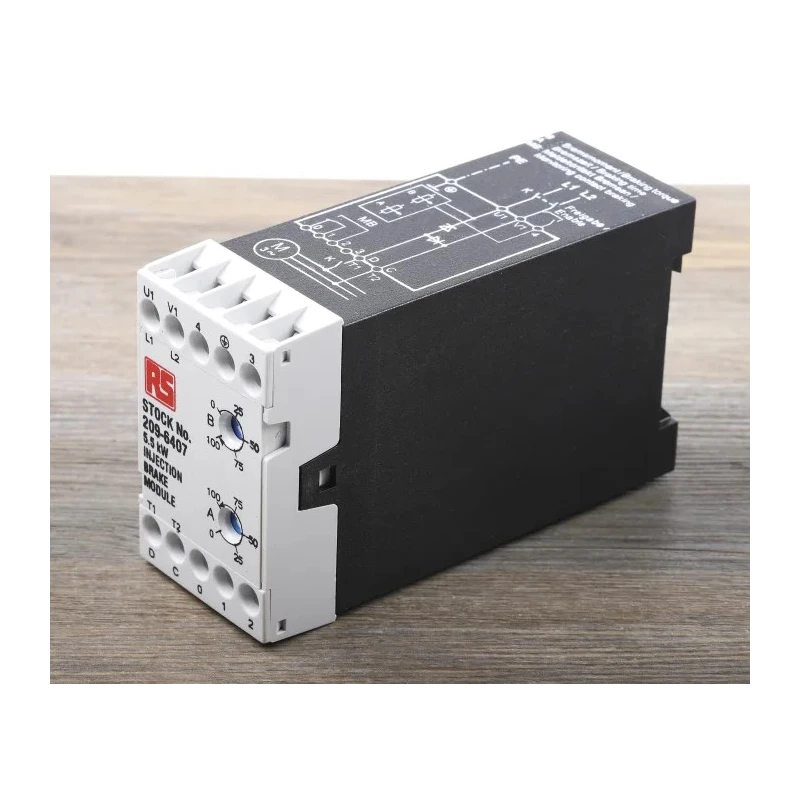

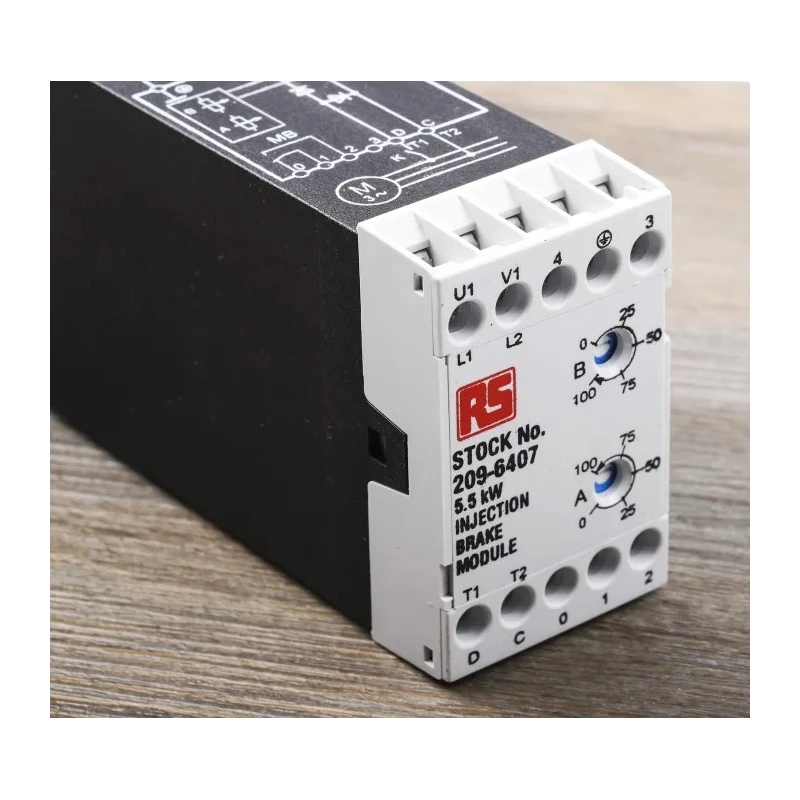

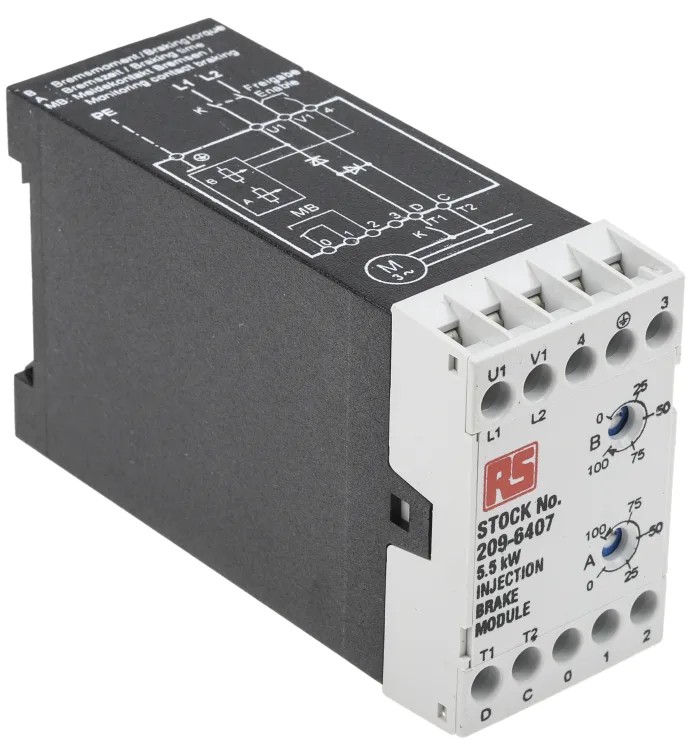

RS PRO Three Phase Brake Module 5.5 kW 380V AC to 415V AC with Starter 209-6407

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Three Phase Brake Module 5.5 kW 380V AC to 415V AC with Starter 209-6407

Name: RS PRO Three Phase Brake Module 5.5 kW 380V AC to 415V AC with Starter 209-6407
Brand: RS PRO
SKU: 282655
Price: 509.73 USD
Availability: InStock



Category Brake Module Brand RS PRO Condition New

Specifications

Country of Origin	Germany
Brand	RS PRO
Model	209-6407
IP Rating	IP20
Power Rating	5.5kW
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Number of Phases	3
Supply Voltage	380, 415V ac
Standards/Approvals	BS EN 61340-5-1, ANSI/ESD
Enclosure Length	120mm
Enclosure Width	45mm
Enclosure Depth	75mm
4KW INJECTION BRAKEBrand	NEUTRAL

Key Features

This module rapidly stops machines by applying DC injection brake to the AC motor winding.
It features adjustable braking time and torque for optimal performance.
Includes starter and is mounted on standard 35 mm DIN rail for easy installation.
Compact enclosure with IP20 rating for indoor industrial environments.
Suitable for applications like mechanical saws and rolling mills that require slow stop operation.
Operates within temperature range of 0°C to 40°C for reliability.
Complies with BS EN 61340-5-1 and ANSI/ESD electrostatic standards.
Manufactured in Germany with RoHS compliance ensuring minimal hazardous material use.

Product Description

RS PRO 209-6407 is a three-phase brake module rated at 5.5 kW, designed for fast and efficient braking in industrial machinery. Powered by a 380V to 415V AC supply, it injects DC current into the motor winding to neutralize magnetic fields and immediately stop the motor rotation.

This braking module includes a starter and mounts easily onto a 35 mm symmetrical DIN rail, making integration into control panels straightforward. The braking function typically initiates within 0.6 seconds, providing reliable quick stops for equipment such as mechanical saws, rolling mills, and other heavy machinery.

The enclosure is compact and robust with dimensions of 120 mm length, 45 mm width, and 75 mm depth, rated for IP20 protection suitable for indoor industrial environments. Operational temperature tolerance ranges from 0°C to 40°C, ensuring consistent performance under typical industrial conditions.

Manufactured in Germany, this module complies with the electrostatic control standards BS EN 61340-5-1 and ANSI/ESD S20.20:2014, and is RoHS compliant, emphasizing reduced hazardous substances.

Adjustable braking time and torque enable customization for optimal stopping performance tailored to specific equipment needs. This product arrives with an instruction leaflet for ease of setup and operation.

This module provides a reliable, controlled method for rapidly stopping 3-phase AC motors using DC injection braking. It replaces friction braking systems by eliminating mechanical wear and tear. Compact design and DIN rail mounting support easy installation and maintenance.

Compliance with electrostatic discharge standards ensures durability and safety in industrial settings. Ideal for industrial, manufacturing, and automation applications requiring precise motor stop control. Ensures efficient operation with a quick response time of 0.6 seconds.

Made to meet European safety and quality standards, manufactured in Germany. Explore more Brake Modules and industrial automation controls in the Electronics & Electricals section on EnvMart.
