Crompton Controls 3 Phase Brake Module 4 kW 400V IP55 Enclosure 3DCM1EKS

Free Delivery in India | Lowest Global Shipping Charges

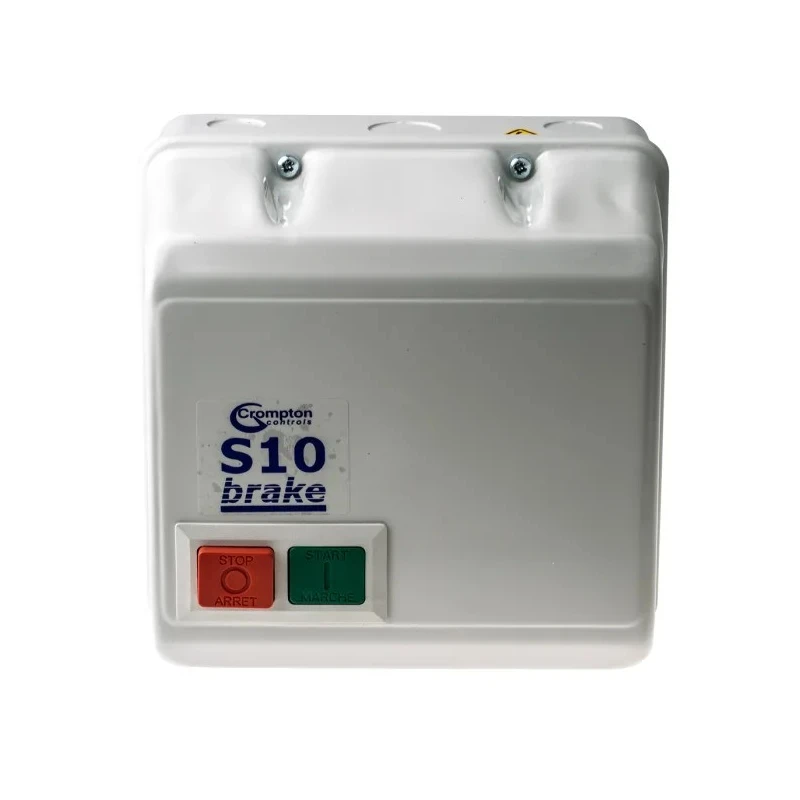

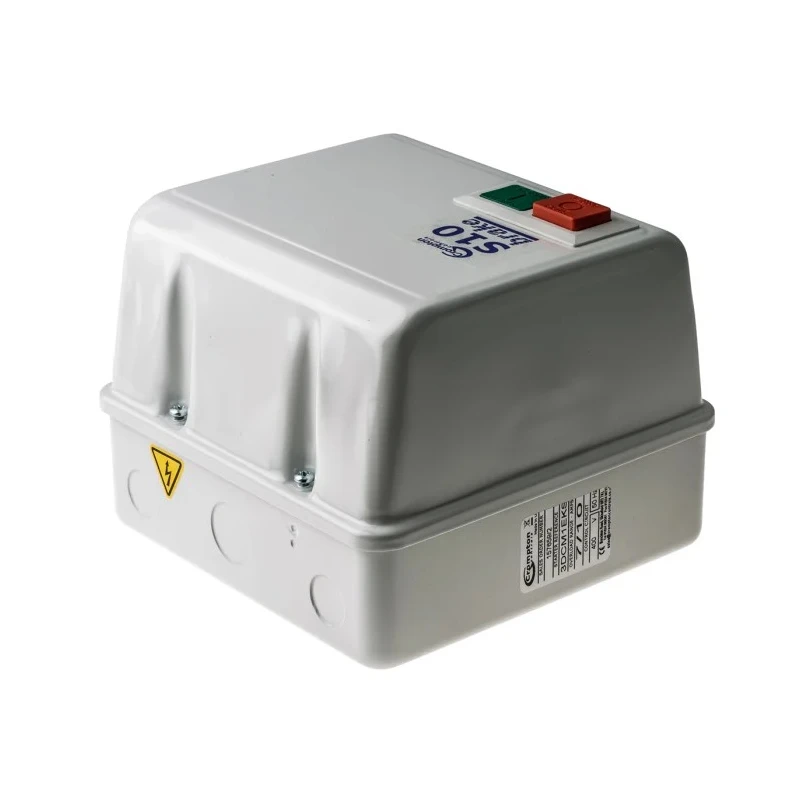

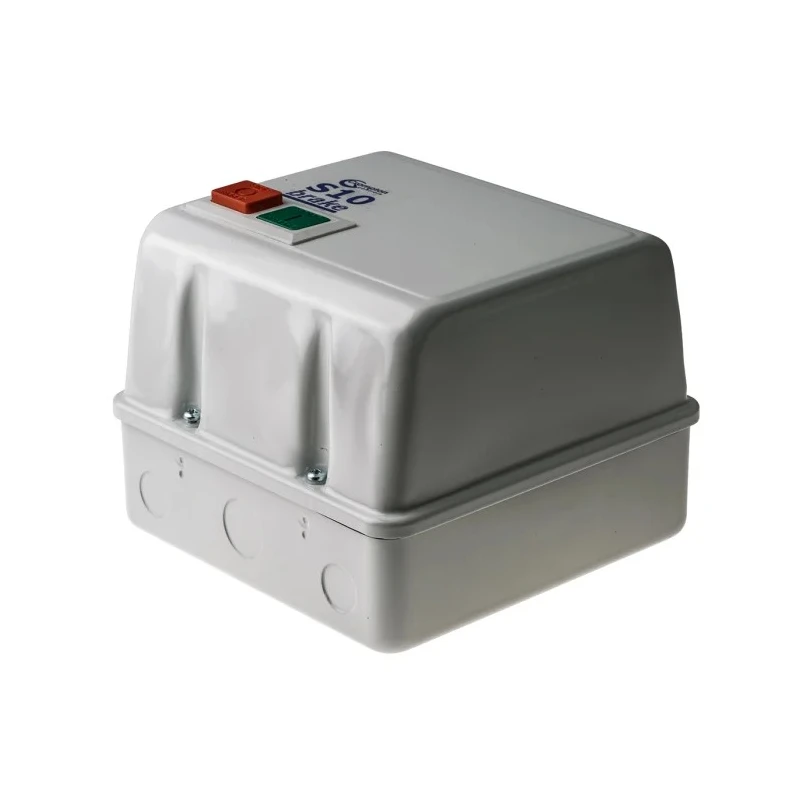

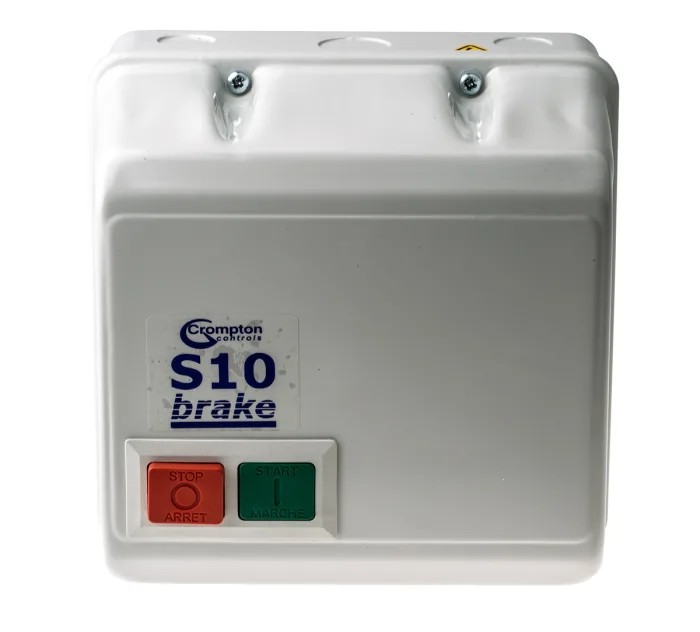

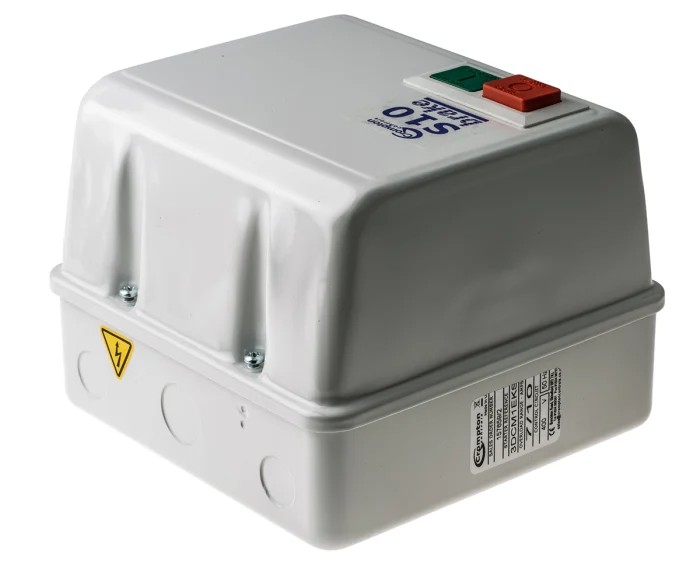

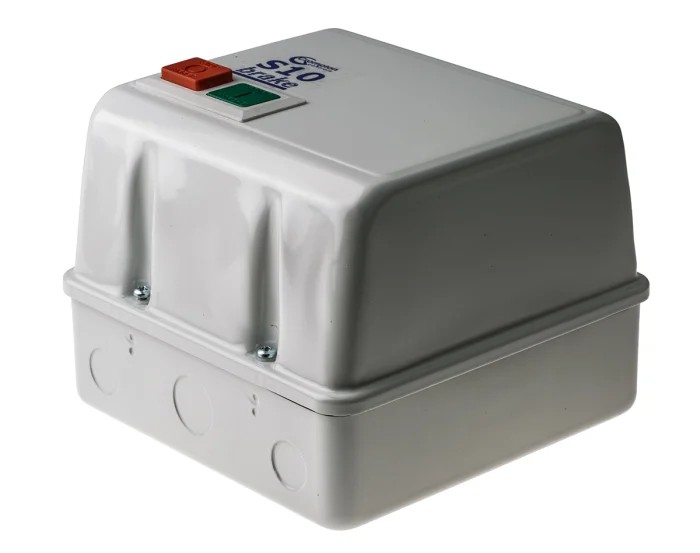

Crompton Controls 3 Phase Brake Module 4 kW 400V IP55 Enclosure 3DCM1EKS

Name: Crompton Controls 3 Phase Brake Module 4 kW 400V IP55 Enclosure 3DCM1EKS
Brand: Crompton Controls
SKU: 331654
Price: 963.37 USD
Availability: InStock



Category Brake Module Brand Crompton Controls Condition New

Specifications

Country of Origin	United Kingdom
Brand	Crompton Controls
Model	3DCM1EKS
IP Rating	IP55
Power Rating	4kW
Maximum Operating Temperature	20°C
Minimum Operating Temperature	-10°C
Number of Phases	3
Supply Voltage	400V
Standards/Approvals	RoHS
Enclosure Length	184mm
Enclosure Width	184mm
Enclosure Depth	149mm
Critical brake,5kWBrand	ABB

Key Features

The module supports 3-phase motors with an integral DOL starter included.
Adjustable DC injection time ranges from 0.5 to 25 seconds for controlled motor braking.
Constructed with an enclosure size of 184mm length, 184mm width, and 149mm depth.
Designed for compliance with PUWER 98 regulations for machine safety.
Rated for operation between -10°C and 20°C with RoHS certification.
This brake module provides fast, predictable stopping by injecting DC current to neutralize motor magnetic fields.
Suitable for retrofit with minimal wiring disruption and compatible with standard 3-phase induction motors.

Product Description

Crompton Controls 3DCM1EKS 3 Phase Brake Module is a 4 kW power device operating at 400V, designed for industrial motor braking applications.

This brake module includes an integral Direct On Line (DOL) starter and is enclosed with IP55 protection to safeguard against dust and water ingress, making it suitable for rugged industrial environments.

It features adjustable DC injection time from 0.5 to 25 seconds allowing precise control of the braking process. The enclosure dimensions are 184 mm in length and width and 149 mm in depth, ensuring a compact form factor for machinery integration.

Designed for compliance with PUWER 98 safety regulations, it ensures that equipment such as woodworking machines stop rapidly within 10 seconds to enhance operator safety.

The module injects DC current into motor terminals post power disconnection to neutralize the magnetic fields and exert braking torque, significantly reducing motor coast time without mechanical wear.

The unit is maintenance-free and integrates easily both in new machinery and for retrofitting existing equipment with minimal wiring changes. The operating temperature range from -10°C to 20°C and RoHS certification align with modern industry standards.

The module supports 3-phase motors and comes with an integral DOL starter. Adjustable DC injection time between 0.5 and 25 seconds provides customized braking control. Compact enclosure dimensions allow seamless integration into existing machinery.

Compliance with PUWER 98 enhances safety in industrial environments. Maintenance-free design improves operational uptime and reduces lifecycle costs. Suitable for retrofit with minimal disruption to existing wiring harnesses.

IP55 rated enclosure protects against dust and water ingress.

This Crompton Controls brake module is ideal for industrial automation, manufacturing, HVAC, and other applications requiring reliable motor safety braking solutions. Explore more products in the Brake Module category on EnvMart for complementary automation and control gear solutions.
