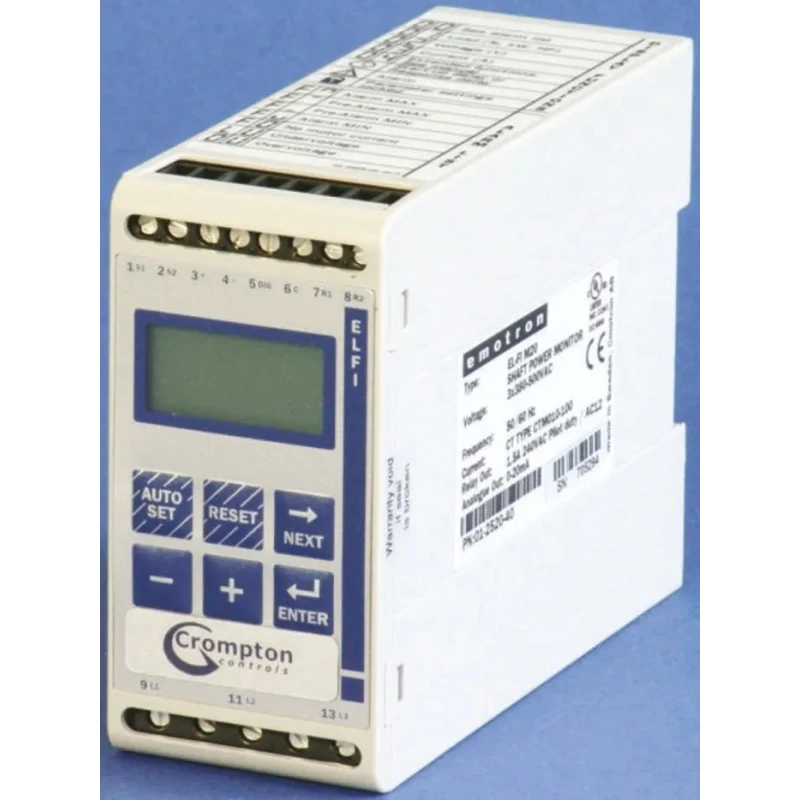

Crompton Controls Motor Load Monitor 10.1A, 25 A, 380V/500V, EL-FI Series M20 SS074+SS073
Specifications
| Country of Origin | Sweden |
|---|---|
| Brand | Crompton Controls |
| Model | SS074+SS073 |
| IP Rating | IP20 |
| Overall Length | 90mm |
| Current Rating | 10.1, 25A |
| Series | M20 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Current Transformer |
| Supply Voltage | 380, 500V |
| Standards/Approvals | CSA |
| Overall Depth | 115mm |
| Motor Protection Component | Load Monitor |
| Motor Protection System | EL-FI |
| Unipower 8A HPL Motor Load Monitor, 380V, 440 V, 50 °C, -15 °CBrand | Unipower |
Key Features
- The EL-FI M20 series offers precise detection of abnormal motor loads to optimize production equipment.
- Compact design measuring 90mm x 45mm x 115mm with easy 35mm DIN rail mounting.
- Equipped with current transformer sensing technology and four alarm levels including max/min main and pre-alarms.
- Supports analogue outputs (0-20mA, 4-20mA, and others) and digital inputs for external auto set and reset functions.
- Operating temperature range is from -20°C to 50°C, suitable for various industrial environments.
- IP20 rated enclosure ensures protection against solid objects but not liquid ingress.
- Compliant with CSA standards, manufactured in Sweden ensuring quality and reliability.
- Ideal for monitoring motors in diverse applications such as pumps, machine tools, mixers, conveyors, and automatic doors.
Product Description
Crompton Controls SS074+SS073 Motor Load Monitor in the EL-FI Series M20 is designed to supervise induction motor driven equipment by providing alarms when abnormal motor loads are detected. This motor load monitor supports current ratings of 10.1A and 25 A with supply voltages of 380V and 500V, making it suitable for single and three-phase motors up to 999A.
The EL-FI M20 enhances motor protection by monitoring only the actual application load, excluding varying motor losses. This feature helps optimize equipment production and reduce costly breakdowns or interruptions. It uses current transformer sensing technology to reliably detect load conditions.
The device features a compact form factor with overall dimensions of 90mm length, 45mm width, and 115mm depth, enabling convenient mounting on standard 35mm DIN rails. Its IP20 rated enclosure protects against access to hazardous parts and solid bodies larger than 12mm.
User-friendly commissioning is enabled by a one-touch auto set function. Four alarm levels (Max and Min, Main Alarm and Pre-Alarm) provide customizable monitoring thresholds. The unit includes analogue output options with configurable current scaling (0-20mA, 4-20mA, 20-0mA, or 20-4mA) and digital inputs for remote auto set, reset, or alarm blocking.
Operating temperature ranges from -20°C to 50°C, allowing use in varied industrial and commercial environments. The motor load monitor complies with CSA standards and has CE and cUL approvals for operation up to 600V.
Common applications include pump monitoring (centrifugal, impeller, screw, and submersible types), machine tool failure detection, mixer protection, conveyor jam detection, and automatic door control. This enhances system reliability and operational safety across manufacturing, water treatment, agricultural, and HVAC sectors.
The EL-FI M20 Motor Load Monitor offers accurate, real-time motor monitoring to prevent inefficient operation and mechanical failures. Its durable design ensures longevity and continuous protection in harsh industrial settings.
Comprehensive alarm functionality allows pre-emptive maintenance planning and system diagnostics. The compact size with DIN rail mounting facilitates integration into existing control panels and switchgear. Analogue and digital interface options provide versatile connectivity for modern automated control systems.
Discover a wide range of motor protection products and related industrial controls in the EnvMart catalog to enhance your motor management and safeguard your operations effectively.
Explore more products in our Crompton Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor load monitor supports current ratings of 10.1A and 25A.
This model operates at supply voltages of 380V and 500V.
The operating temperature range is from -20°C to 50°C.
The overall dimensions are 90mm in length, 45mm in width, and 115mm in depth.
It features a compact design suitable for easy mounting on standard 35mm DIN rails.
This unit employs current transformer sensing technology to detect load conditions.
It includes four alarm levels: Max and Min, Main Alarm, and Pre-Alarm for customizable monitoring.
Yes, it complies with CSA standards and has CE and cUL approvals for operation up to 600V.
It is suitable for monitoring motors in applications such as pumps, machine tools, mixers, conveyors, and automatic doors.
It supports analogue outputs with configurable current scaling options such as 0-20mA and 4-20mA.
The enclosure has an IP20 rating, providing protection against solid objects but not liquid ingress.
It is manufactured in Sweden, ensuring quality and reliability.
