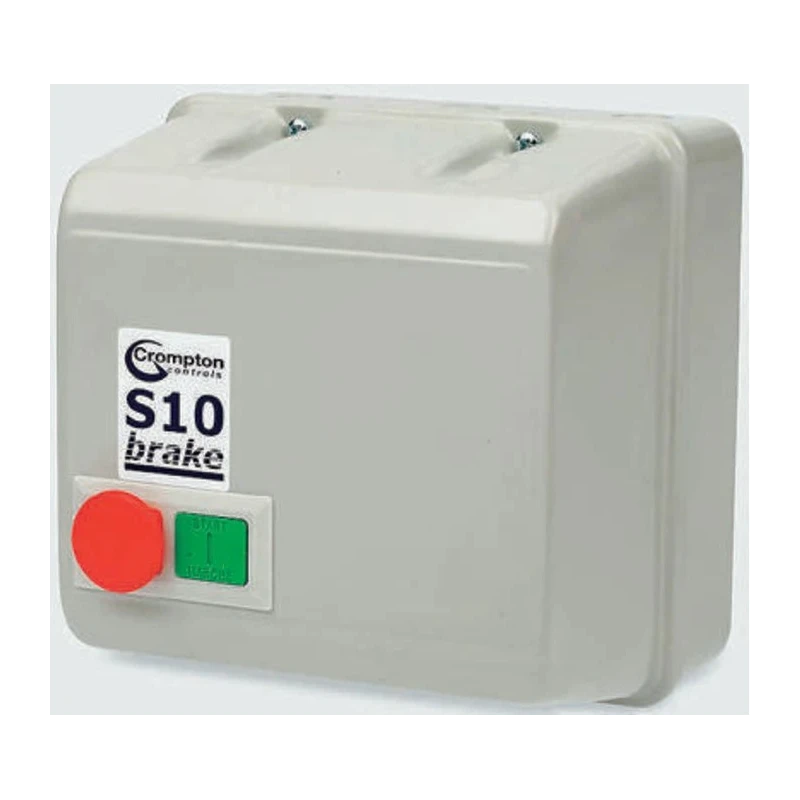

Crompton Controls 3 Phase Brake Module 11 kW Power Rating 415V AC Supply Voltage Model 3DC3ENS

Crompton Controls 3DC3ENS 3 Phase Brake Module offers a reliable and efficient braking solution for industrial machines requiring rapid and predictable stopping. Rated at 11 kW power with a 415V AC supply voltage, this brake module is suitable for integration with standard 3 phase induction motors. Featuring an IP55 enclosure rating, the module ensures protection against dust and water ingress, maintaining durability in industrial environments.

The brake module operates using the DC injection method, which injects direct current into two motor terminals upon disconnection of the 3 phase supply. This neutralizes the rotating magnetic field and halts motor coasting, reducing stopping time significantly. The adjustable DC injection time ranging between 0.5 to 25 seconds allows precise braking control depending on the application requirements. An integral direct-on-line (DOL) starter is included, facilitating straightforward installation and operation with minimal disruption to existing wiring.

With enclosure dimensions measuring 305 mm in length, 285 mm in width, and 159 mm depth, the module’s compact form factor enables flexible mounting either on or adjacent to machinery. It is designed to operate efficiently within a temperature range of -10°C to 40°C, making it suitable for diverse industrial conditions.

This brake unit is compliant with PUWER 98 regulations and is ideal for machinery such as woodworking equipment that requires automatic braking devices to ensure tool stoppage within 10 seconds. It can be retrofitted to existing equipment or incorporated into new machinery, providing a maintenance-free, wear-resistant braking solution that enhances operator safety and equipment control.

The Crompton Controls Brake Module is manufactured in the United Kingdom, reflecting strict adherence to quality manufacturing standards and delivering reliable performance in industrial, manufacturing, and automation contexts.

Provides controlled deceleration and fast motor stopping using DC injection method. Suitable for 3 phase induction motors with IP55 rated enclosure. Adjustable DC injection time from 0.5 to 25 seconds for precise braking control.

Includes integral direct-on-line (DOL) starter for easy installation and operation. Enclosure dimensions are 305mm length, 285mm width, and 159mm depth. Operational temperature range from -10°C to 40°C with robust build quality.

Complies with PUWER 98 safety regulations for woodworking and similar machinery. Maintenance and wear free braking solution with simple retrofit installation. Manufactured in the United Kingdom ensuring high-quality standards.
