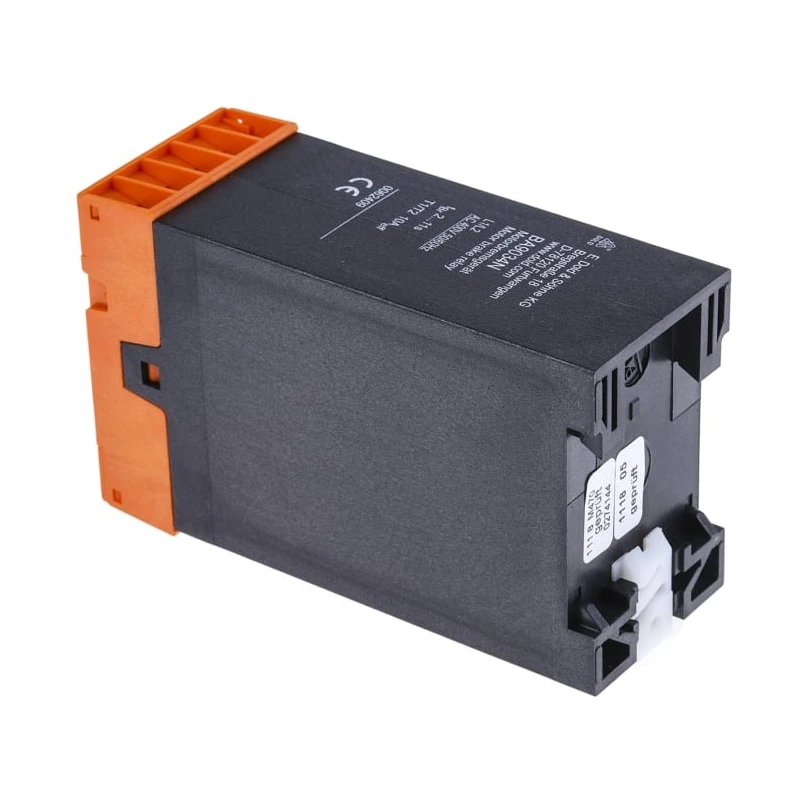

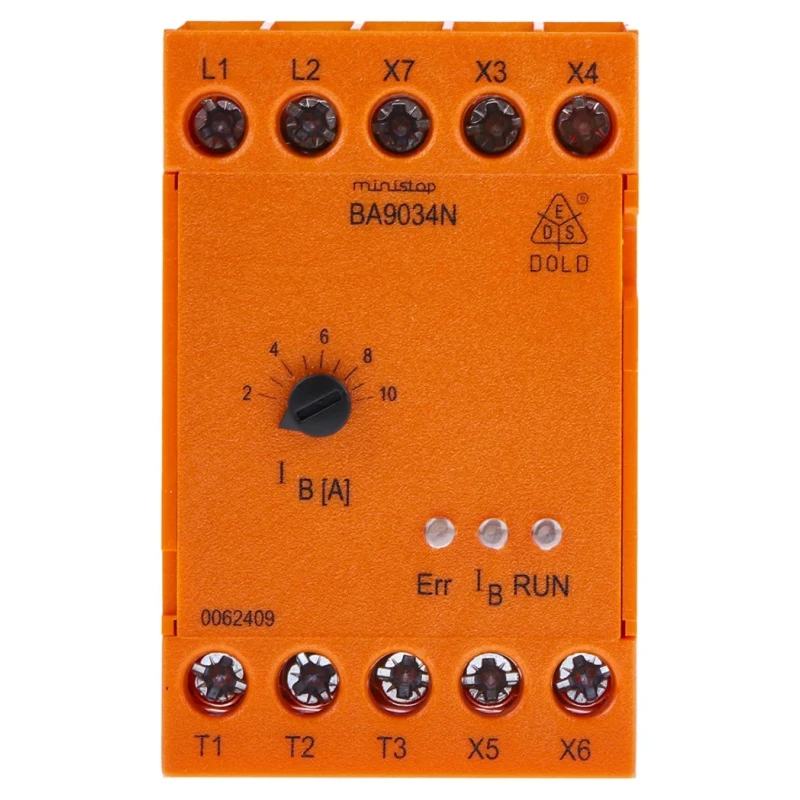

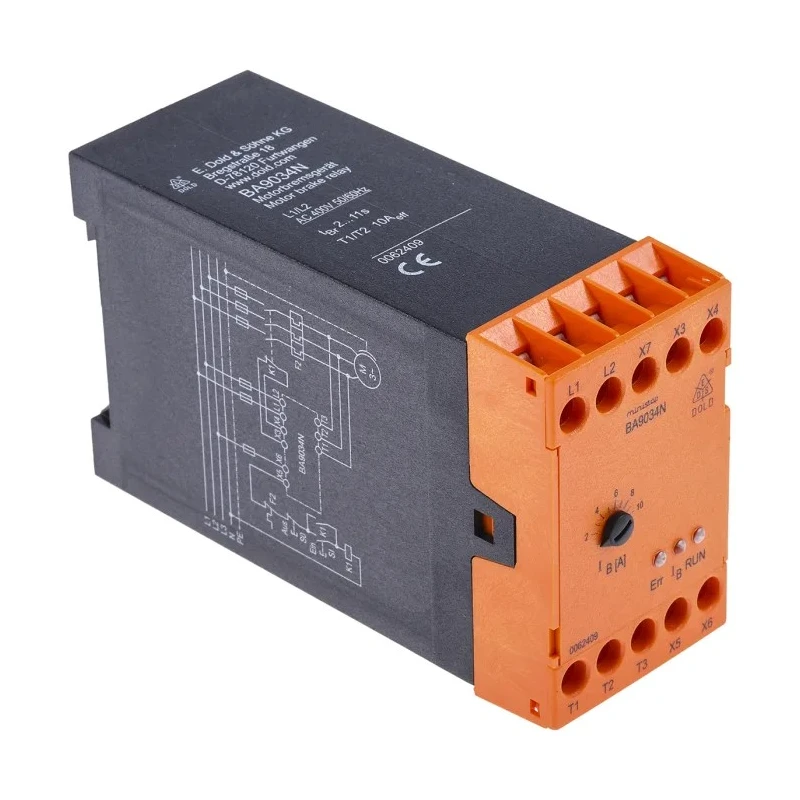

Dold 3 Phase Brake Module 5 V 400V AC BA9034N 10A AC50/60Hz 400V 2-11s

Dold BA9034N 10A AC50/60Hz 400V 2-11s 3 Phase Brake Module is engineered to provide fast, reliable motor braking through DC injection braking technology. Operating at 5 V coil power rating and 400V AC supply voltage, this module effectively neutralizes the rotating magnetic field of asynchronous motors to bring them to a controlled stop.

The built-in automatic standstill detection ensures that the motor does not restart while braking current is applied, enhancing operational safety. The integrated braking contactor and potentiometer adjustment allow precise control of braking current from 10 to 100%, with current limiting features for optimized performance.

Constructed with an enclosure rating of IP40 and IP20, and dimensioned at 45mm length, 73mm width, and 122mm depth, this brake module is designed for seamless integration into existing or new motor control systems. The module's operating temperature range between 0°C to 45°C makes it suitable for varied industrial environments.

Microcontroller enabled technology ensures high safety standards and short braking cycles, increasing machine uptime and reducing wear. The module complies with RoHS standards and is manufactured in Germany, assuring quality and environmental responsibility.

Supports 3 phase asynchronous motors with automatic standstill detection. Incorporates integrated braking contactor to control DC brake current safely. Easily adjustable braking current via a potentiometer scaled between 10 to 100%.

Robust construction with IP40 and IP20 enclosure ratings ensuring protection. Compact design of 45mm length, 73mm width, and 122mm depth for easy installation. Suitable for industrial use with operating temperature range from 0°C to 45°C.

Microcontroller enabled for enhanced safety and control functions. Manufactured in Germany adhering to RoHS standards for environmental compliance. Compatible with both single and three phase motors, ensuring versatile application.

This brake module is ideal for industrial, manufacturing, automation, and electrical motor control applications requiring reliable and maintenance-free motor braking solutions. Explore the full range of Brake Modules and related control gear at EnvMart for comprehensive industrial controls.
