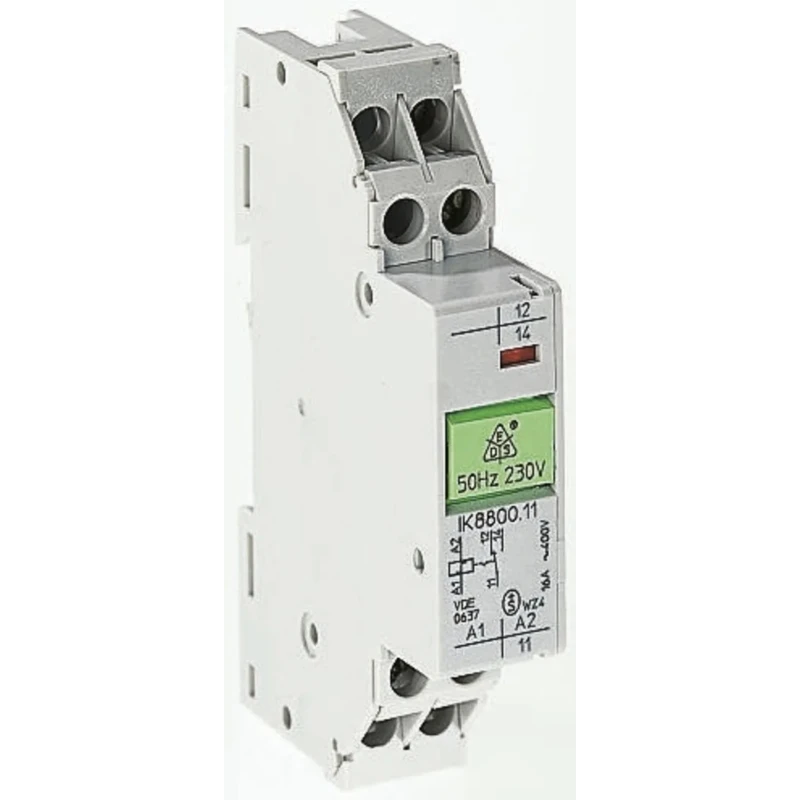

Dold 16A Control Station Switch Circuit Trip DIN Rail Mount IK8800.11 AC50Hz 230V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Model | IK8800.11 AC50Hz 230V |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | IK 8800 |
| Sub Type | Control Station Switch |
| Standards/Approvals | EC/EN 60 669, CE |
| Control Voltage | 230V |
Key Features
- Equipped with push-button action for manual operation.
- Switch position indication via an indicator mark for easy monitoring.
- Optional contact assignments of 1 NO or 1 CO for flexible configuration.
- Compact 17.5 mm overall width suitable for dense installations.
- Each current pulse actuates remote switch contacts, maintaining the position until the next pulse.
- Devices can be mounted closely with 7 mm spacing for continuous operation.
- Manufactured in Germany ensuring quality and reliability.
Product Description
Dold IK8800.11 AC50Hz 230V Control Station Switch Circuit Trip is a precision device designed for remote switching applications with DIN Rail mount compatibility and a current rating of 16A. It features push-button action enabling manual actuation of switches and a clear switch position indicator for operational clarity.
The device supports optional contact assignments of either one normally open (NO) or one changeover (CO) contact, offering flexibility for control circuits. Its overall width is compact at 17.5 mm, facilitating installation in confined control panels or electrical enclosures.
Each current pulse triggers the remote switch contacts to remain in the actuated position until the next pulse occurs, ensuring repeatable and stable operation. The inclusion of a manual actuator button provides additional handling convenience for technicians during maintenance.
Multiple IK8800 devices can be mounted side by side with a minimal 7 mm gap, allowing efficient use of panel space in continuous operation setups. This product conforms to EC/EN 60 669 and CE standards, reflecting adherence to strict European quality and safety requirements.
Manufactured in Germany, this control station switch is suited to industrial automation, electrical control systems, and circuit breaker configurations in various sectors including manufacturing, HVAC, and building services. Its DIN Rail mounting design simplifies integration into standard electrical panels.
Equipped with push-button action for manual switching. Clearly visible switch position indicator. Optional contact assignments: 1 NO or 1 CO. Compact 17.5 mm width optimized for panel mounting. Latch mechanism controlled by each current pulse.
Minimum 7 mm mounting distance for continuous setups. Complies with EC/EN 60 669 and CE standards. Manufactured in Germany for superior build quality. Explore more Circuit Trips and control station switches in EnvMart’s extensive electronics and electrical components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Dold IK8800.11 Control Station Switch has a current rating of 16A.
This model operates at a control voltage of 230V.
The overall width of the Dold Control Station Switch is compact at 17.5 mm, allowing for dense installations.
The Dold IK8800.11 is designed for DIN Rail mounting, which simplifies integration into standard electrical panels.
It complies with EC/EN 60 669 and CE standards, ensuring adherence to European quality and safety requirements.
The device supports optional contact assignments of either one normally open (NO) or one changeover (CO) contact.
The Dold IK8800.11 features push-button action for manual operation, allowing technicians to actuate switches easily.
A minimum mounting distance of 7 mm is required for continuous operation setups, allowing multiple devices to be mounted closely together.
This control station switch is manufactured in Germany, reflecting quality and reliability in its construction.
The switch position indicator provides clear visibility of the operational status, facilitating easy monitoring.
It is suited for industrial automation, electrical control systems, and circuit breaker configurations in various sectors, including manufacturing and HVAC.
The Dold IK8800.11 is part of the IK 8800 series.
