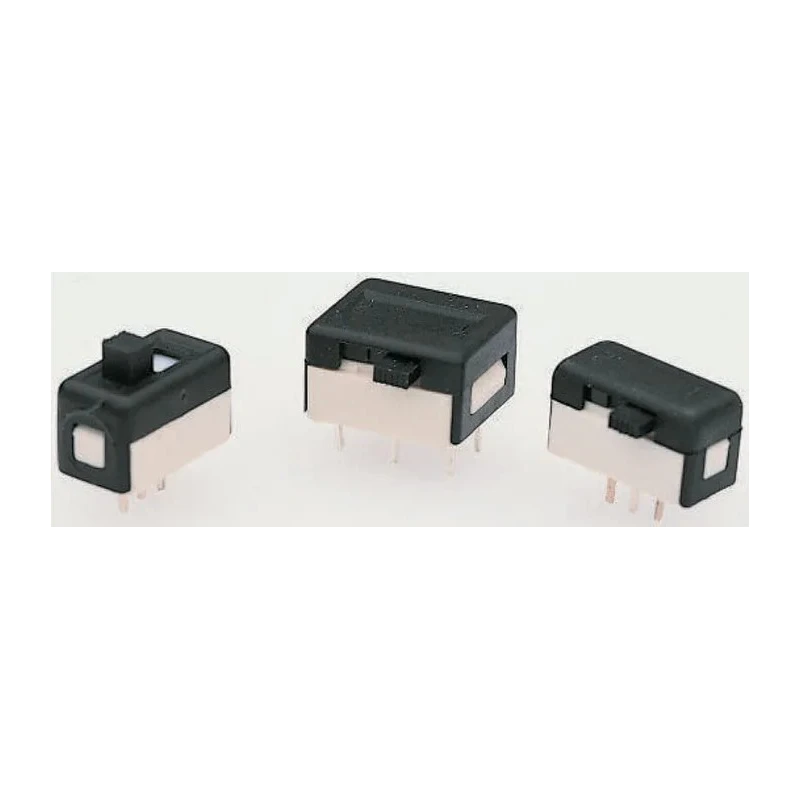

APEM PCB Slide Switch DPDT Latching 100mA Polyamide 25346NLD
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Length | 14.1mm |
| Model | 25346NLD |
| Depth | 8.1mm |
| Width | 14.1mm |
| Mount Type | PCB |
| Series | 25000N |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | UL |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Mechanical Life | 20000Operations |
| Electrical Life | 10000 cycles |
| Actuator Material | Polyamide |
Key Features
- The switch features DPDT contact configuration for versatile electrical control.
- It is designed for PCB mounting with through hole terminals.
- Switch operation is latching with On-None-On configuration ensuring secure switching.
- The switch supports a maximum contact DC voltage of 30V dc.
- Actuator is made of durable polyamide, capable of operating between -40°C and 85°C.
- Mechanical life rated for 20000 operations ensures long-lasting reliability.
- Compliance with UL standards guarantees safety and quality.
- The 25000N series design includes sealed terminals to prevent flux ingress during soldering.
Product Description
APEM 25346NLD PCB Slide Switch is a miniature, high-quality latching slide switch from the 25000N series, designed for electronics and electrical applications requiring reliable switching with low current and voltage ratings.
This DPDT (Double Pole Double Throw) switch supports a maximum contact current of 100mA and a DC voltage of 30V, making it well-suited for circuit board integration requiring precise control.
The switch's polyamide actuator and PBT high-temperature thermoplastic case provide excellent durability and allow it to operate safely in temperatures ranging from -40°C to 85°C. Its sealed terminals help prevent ingress of flux during soldering, ensuring performance reliability and reducing maintenance needs.
Featuring through hole terminal mount type and an On-None-On switch configuration with latching operation, this switch delivers firm, tactile feedback and secure switching positions, ideal for industrial automation, instrumentation, and control systems.
With compact physical dimensions of 14.1mm length, 14.1mm width, and 8.1mm depth, it fits well in space-constrained PCB designs. The mechanical life of 20000 operations combined with an electrical life of 10000 cycles ensures dependable long-term usage in demanding environments.
The switch features DPDT contact configuration for versatile electrical control. It is designed for PCB mounting with through hole terminals. Switch operation is latching with On-None-On configuration ensuring secure switching.
The switch supports a maximum contact DC voltage of 30V dc. Actuator is made of durable polyamide, capable of operating between -40°C and 85°C. Mechanical life rated for 20000 operations ensures long-lasting reliability.
Compact dimensions: 14.1mm length, 14.1mm width, and 8.1mm depth. Compliance with UL standards guarantees safety and quality. The 25000N series design includes sealed terminals to prevent flux ingress during soldering. Electrical life is rated up to 10000 cycles.
Ideal for use in electrical, industrial automation, instrumentation, and manufacturing applications, the APEM 25346NLD PCB Slide Switch combines compact form factor with consistent performance. Its reliable switching action and durable materials make it suitable for embedded systems and commercial electronic equipment.
Explore more electronic components and switches in EnvMart's wide catalog for all your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 100mA.
This slide switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile electrical control.
The switch can operate safely within a temperature range of -40°C to 85°C.
It is designed for PCB mounting with through hole terminals.
The mechanical life of this slide switch is rated for 20,000 operations.
The electrical life of this switch is rated for 10,000 cycles.
The actuator is made of polyamide, and the case is constructed from PBT high-temperature thermoplastic.
Yes, it complies with UL standards, ensuring safety and quality.
The dimensions are 14.1mm in length, 14.1mm in width, and 8.1mm in depth.
The switch operates in an On-None-On configuration with latching operation, providing secure switching.
It includes sealed terminals to prevent flux ingress during soldering, enhancing performance reliability.
This slide switch is suitable for industrial automation, instrumentation, and control systems.
