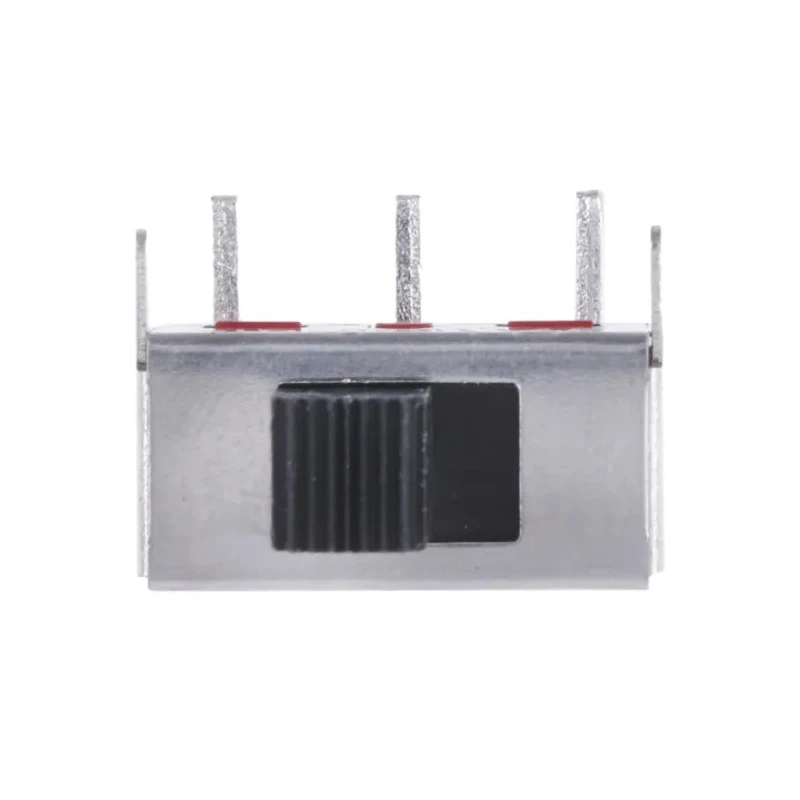

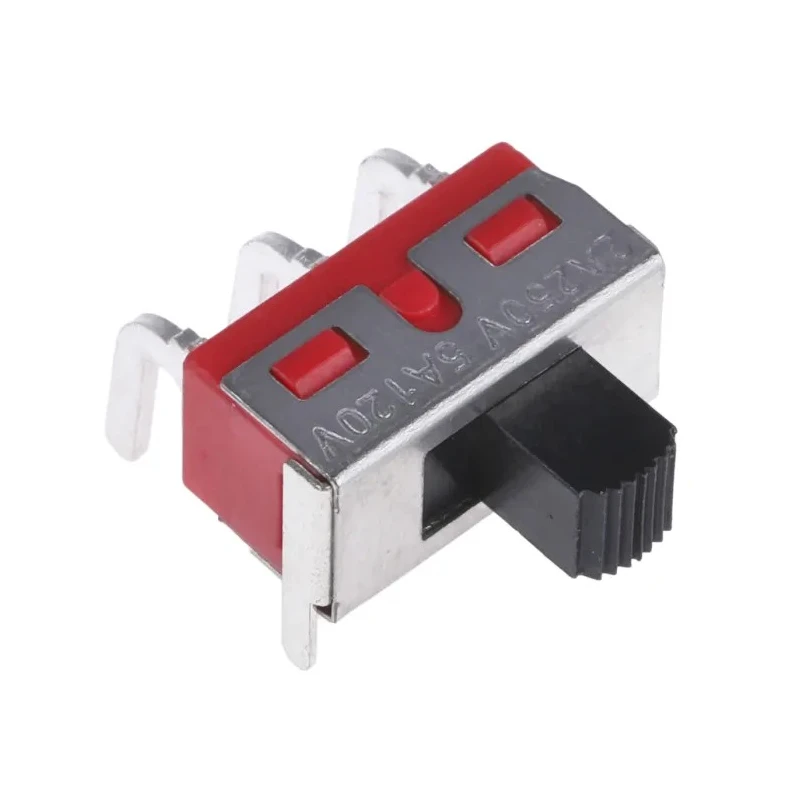

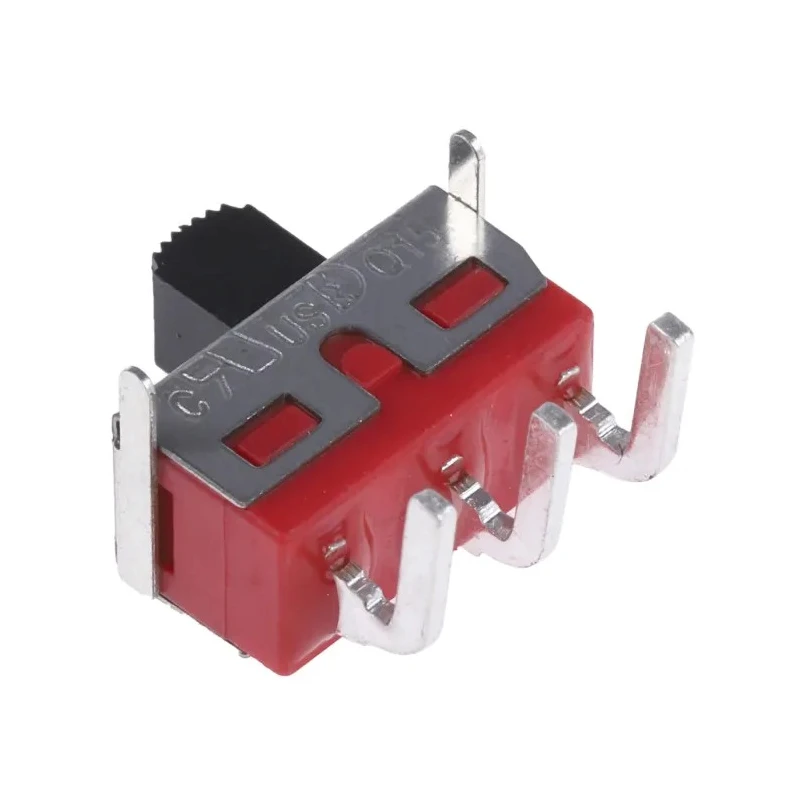

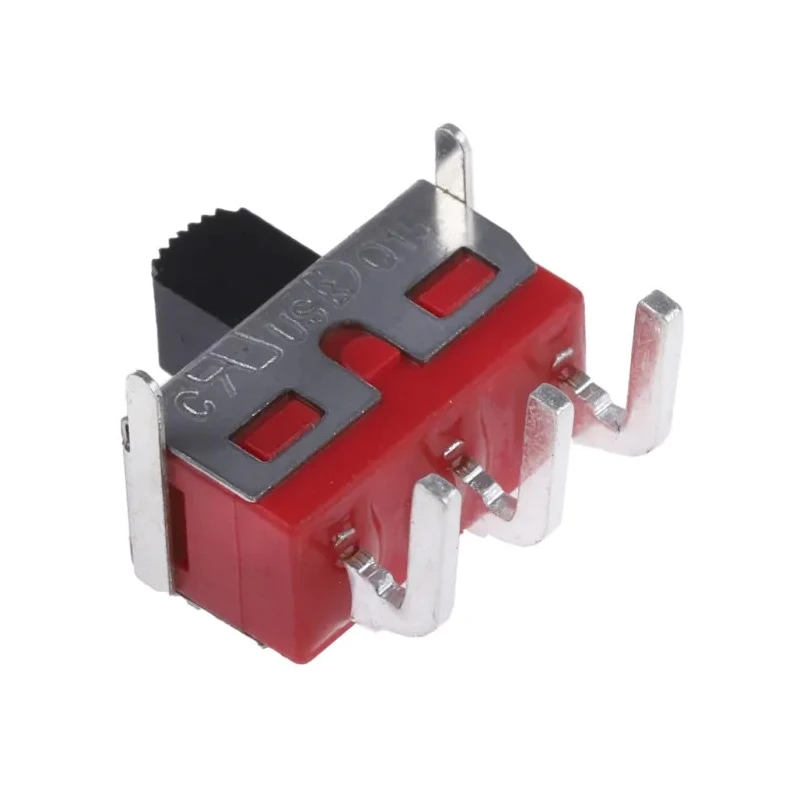

RS PRO PCB Slide Switch SPDT Latching 5A 28V DC Silver Plated Brass 7347296P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 12.7mm |
| Model | 7347296P |
| Depth | 6.87mm |
| Width | 6.87mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 30000Cycles |
| Actuator Material | Silver Plated Brass |
Key Features
- Single pole double throw (SPDT) slide switch for versatile circuit control.
- Latching switch operation with three positions for on-off functionality.
- Silver plated brass side actuator and contacts ensure durability and conductivity.
- Rated for 5 A contact current at 28 V DC and tested for 30,000 mechanical cycles.
- Compact dimensions of 12.7 mm length, 6.87 mm width, and 6.87 mm depth.
- Durable DAP case and stainless steel housing offer electrical insulation and mechanical strength.
- Operates reliably in temperatures from -30°C to +85°C.
- Through-hole solder terminals for direct PCB mounting.
Product Description
RS PRO 7347296P PCB Slide Switch is a high-quality latching SPDT switch designed for printed circuit boards, suitable for electrical, automation, and industrial applications. Rated for 5 A at 28 V DC, it provides dependable switching with silver plated brass contacts and actuator for enhanced conductivity and corrosion resistance.
The switch features a diallyl phthalate (DAP) plastic casing that delivers excellent electrical insulation and heat resistance, complemented by a stainless steel housing for robust mechanical protection. Its compact size of 12.7 mm by 6.87 mm by 6.87 mm facilitates easy integration in compact electronic assemblies.
Equipped with through-hole solder terminals, the switch allows straightforward installation on PCBs. It supports latching operation with three positions - on-none-on - enabling flexible circuit management. The mechanical lifespan of 30,000 cycles ensures longevity and reliability in demanding use cases.
Operating temperature range from -30°C to 85°C enables use in diverse environments, while the RoHS compliance certifies eco-friendly manufacturing and materials. Single pole double throw (SPDT) latching slide switch. DAP case and stainless steel housing provide insulation and durability.
Side actuator with silver plated brass for reliable contact. Rated contact current of 5 A at 28 V DC. Mechanical life of 30,000 make-and-break cycles. Dimensions: 12.7 mm length, 6.87 mm width and depth. Operating temperature -30°C to +85°C.
Through-hole solder terminal mount for PCB installation. RoHS compliant for environmental safety.
This PCB Slide Switch is ideal for industrial equipment, automation controls, battery-operated devices, instrumentation, and various electrical circuits requiring reliable on/off switching. Choose RS PRO switches for trusted quality and proven performance. Explore more switches and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The slide switch is rated for a contact current of 5 A at 28 V DC.
This model has dimensions of 12.7 mm in length, 6.87 mm in width, and 6.87 mm in depth.
It operates reliably within a temperature range of -30°C to +85°C.
The switch has a mechanical life rated for 30,000 make-and-break cycles.
It features through-hole solder terminals for direct PCB mounting.
The switch configuration is On-None-On, allowing for latching operation with three positions.
The actuator and contacts are made of silver plated brass, which enhances conductivity and corrosion resistance.
Yes, the switch is RoHS compliant, certifying its eco-friendly manufacturing and materials.
This model is suitable for industrial equipment, automation controls, battery-operated devices, and various electrical circuits requiring reliable on/off switching.
The country of origin for this slide switch is India.
This is a single pole double throw (SPDT) latching slide switch designed for versatile circuit control.
The series name of this product is RS PRO.
