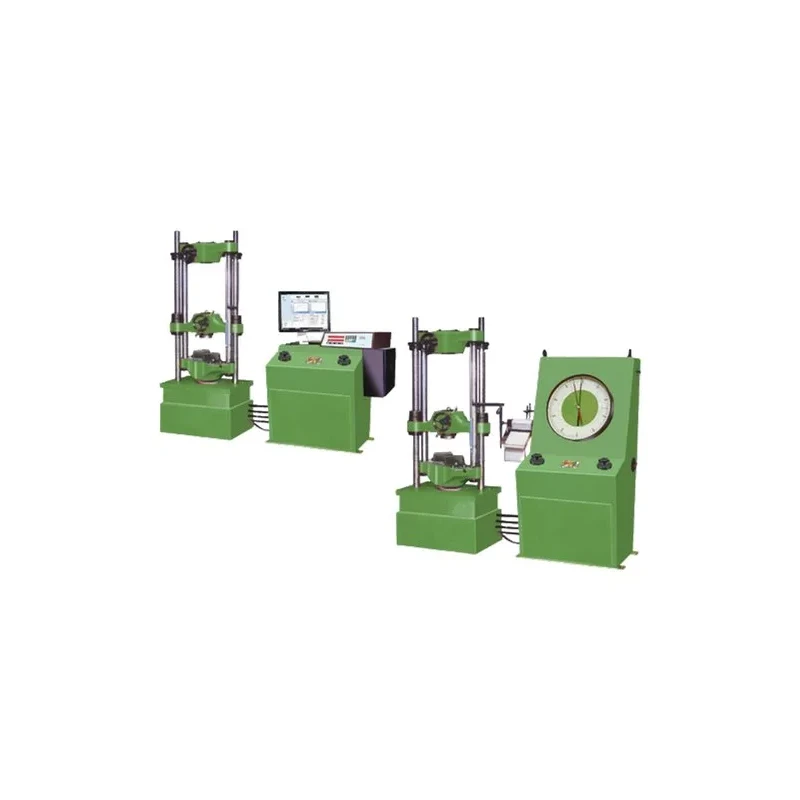

Universal Computerised Testing Machine IA UTM
Specifications
| Measuring range | 0-100kN |
|---|---|
| Brand | IZA |
| Power Supply | 3 ph| 50 Hz| 415 VAC |
| Model | UTE |
| Weight | 1500kg |
| Maximum Capacity | 1000kN |
| Ram Stroke | 150mm |
| Load Resolution | 10N |
| Load Range With +1 % Accuracy | 2-100mm |
| Resolution of Piston Movement | 0.1mm |
| Clearance For Tensile At Fully Descended Working Piston | 50-700mm |
| Clearance Between Columns | 500mm/min |
| Straining/Piston Speeds (at no Load) | 0-300 mm/min |
| Clamping Jaws For Flat Specimens Of Thickness | 00-10mm |
| Pair Of Compression Plates Of Diameter | 120mm |
| Table Width Adjustable Rollers Width Of Rollers | 160mm |
| Diameter Of Rollers | 60mm |
| Maximum Clearance Between Supports | 500mm |
| Clamping For Round Specimens Of Diameter | 20-30mm |
Key Features
- Loading accuracy as high as + 1%.
- Straining at variable speeds to suit a wide range of materials.
- Printer & PC graphs enable study the behavior of the materials.
- Motor driven threaded columns for quick effortiess adjustment of middie
Product Description
Universal Computerised Testing Machine IA UTM This machine can test your strength, speed, endurance, flexibility, balance, coordination, agility, and more! This testing machine is an excellent tool for physical fitness training or just for fun.
- Oftest specimen.
- Continuous roll autographic recorder supplied as standard to enable study
- Easy change from plain to threaded and screwed specimens.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum capacity of this model is 1000 kN.
The measuring range is from 0 to 100 kN.
The ram stroke length is 150 mm.
The load resolution is 10 N.
The straining or piston speeds at no load range from 0 to 300 mm/min.
The clearance for tensile testing is between 50 mm and 700 mm.
The diameter of the compression plates is 120 mm.
The maximum clearance between supports is 500 mm.
It can clamp flat specimens of thickness 0-10 mm and round specimens with a diameter of 20-30 mm.
The resolution of piston movement is 0.1 mm.
This model includes a continuous roll autographic recorder and the ability to produce printer and PC graphs for studying material behavior.
