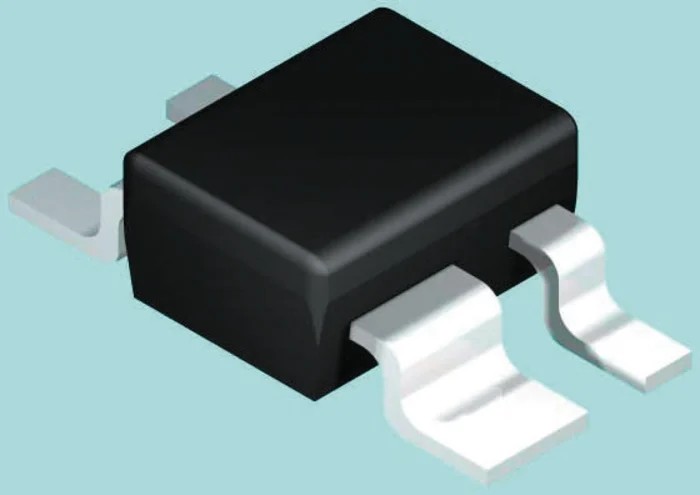

STMicroelectronics Voltage Supervisor Microprocessor Supervisory Circuit 4-Pin SOT-143 2.7V Reset Threshold STM811RW16F

Free Delivery in India | Lowest Global Shipping Charges

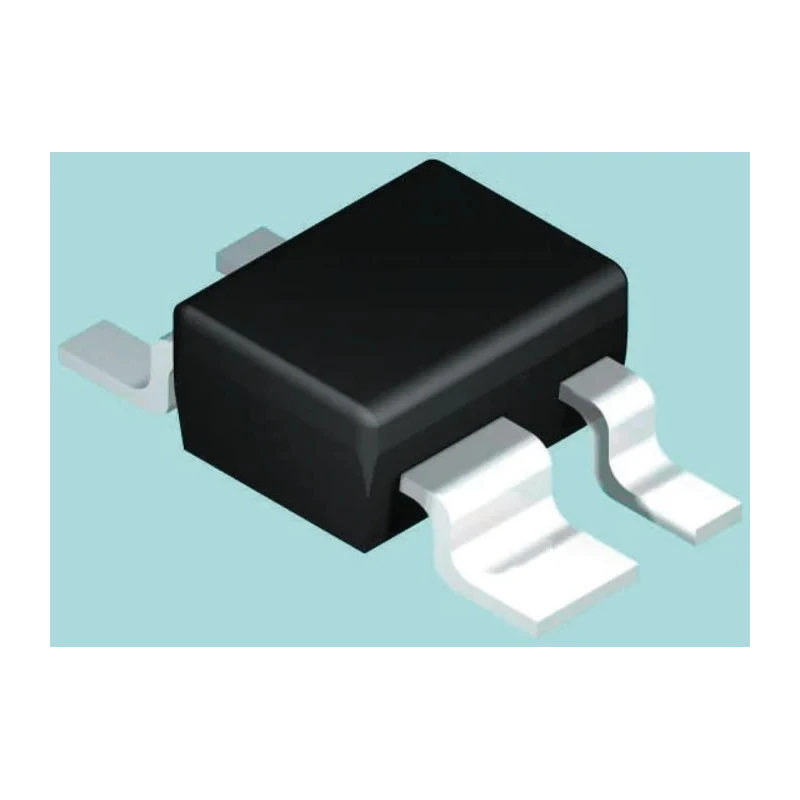

STMicroelectronics Voltage Supervisor Microprocessor Supervisory Circuit 4-Pin SOT-143 2.7V Reset Threshold STM811RW16F

Name: STMicroelectronics Voltage Supervisor Microprocessor Supervisory Circuit 4-Pin SOT-143 2.7V Reset Threshold STM811RW16F
Brand: STMicroelectronics
SKU: 183849
Price: 0.62 USD
Availability: InStock



Category Voltage Supervisor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.02mm
Length	3.04mm
Model	STM811RW16F
Width	1.4mm
Mount Type	Surface
Series	STM811
Maximum Operating Temperature	85°C
Package Type	SOT-143
Sub Type	Microprocessor Supervisory Circuit
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1V
Number of Supervisors	1
Output Driver	Push Pull, Active Low
Reset Threshold Voltage	2.7V
Monitored Voltage	2.63V
Reset Active Time	280ms

Key Features

Features a manual reset function for precise control.
Operates with a monitored voltage of 2.63 volts.
Supports a supply voltage range from 1V to 5.5V for flexibility.
Includes push-pull, active low output driver for reliable signal communication.
Rated for operating temperatures from -40°C to 85°C ensuring durability in various environments.
Designed to protect microprocessors by supervising supply voltages effectively.
Surface mount SOT-143 package enables easy PCB integration.

Product Description

STMicroelectronics STM811RW16F Voltage Supervisor is a highly reliable microprocessor supervisory circuit engineered to monitor power supply voltages and provide manual reset capability. Packaged in a compact 4-pin SOT-143 form factor, the device features a reset threshold voltage of 2.7V and monitors supply voltages as low as 1V up to 5.5V, making it suitable for various electronic systems including desktop computers, portable equipment, and measurement instruments.

The device outputs active low push-pull signals, providing robust and noise-immune reset signals essential for microprocessor and microcontroller supervision. Its operational temperature range from -40°C to 85°C ensures performance stability in industrial and commercial applications.

This voltage supervisor is designed to protect digital circuits by detecting voltage drops and issuing resets with a 280 millisecond reset active time, preventing erratic system behavior during power fluctuations.

Featuring a surface mount package (SOT-143) with precise physical dimensions of 3.04 mm length, 1.4 mm width, and 1.02 mm height, it is suitable for compact electronic designs requiring reliable power supervision.

Manual reset functionality allows external control over reset state. Monitored voltage set at 2.63V ensures accurate voltage supervision. The robust push-pull output driver minimizes false triggering. Designed for single supervisor operation with pin count of 4.

Meets exacting electrical and temperature standards for professional use.

Typical applications include microprocessor power supply monitoring, embedded system supervision, battery-powered devices, and instrumentation. Industries such as consumer electronics, industrial controls, and automotive electronics benefit from integrating the STM811RW16F voltage supervisor.

Explore more high-quality Power Management ICs and Voltage Supervisors at EnvMart for efficient power and voltage control solutions.
