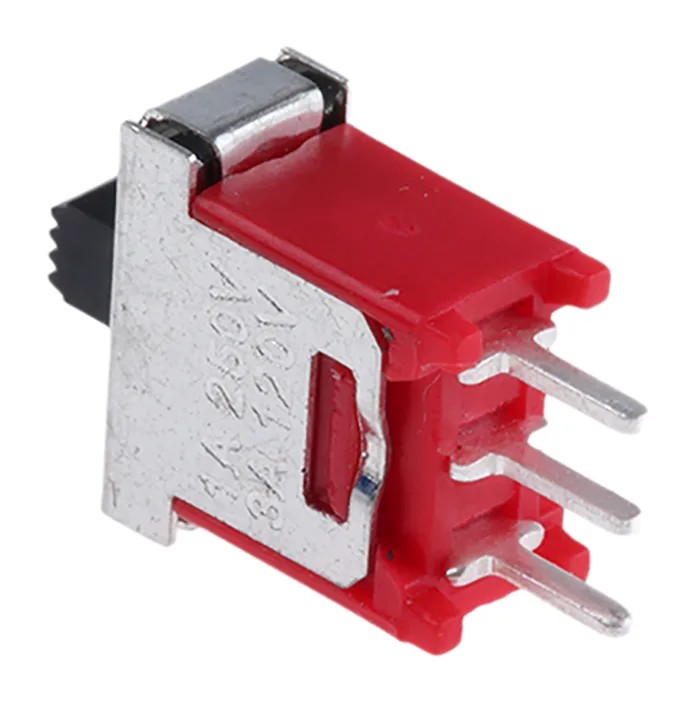

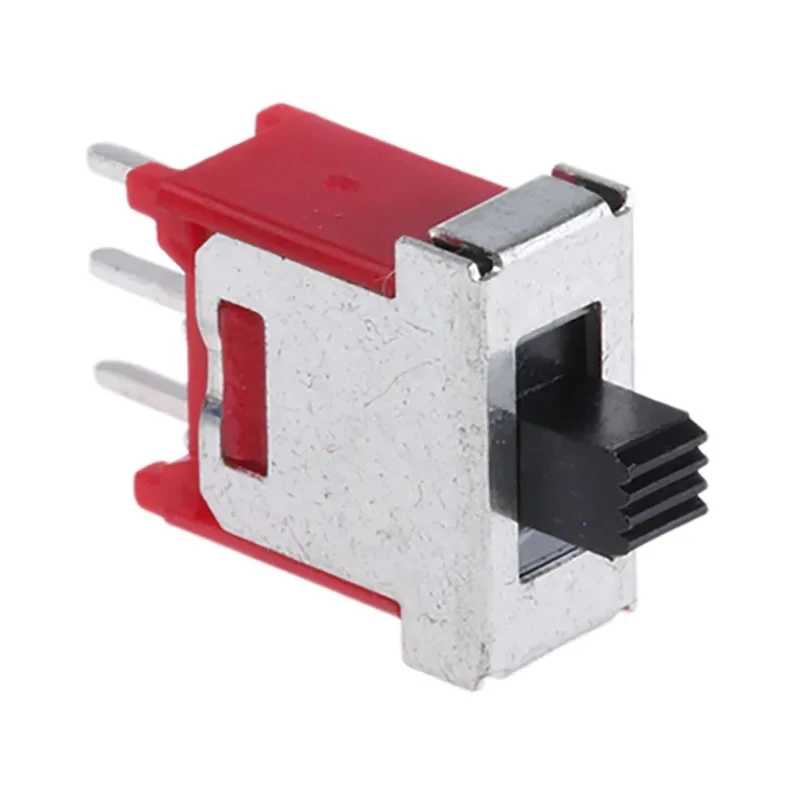

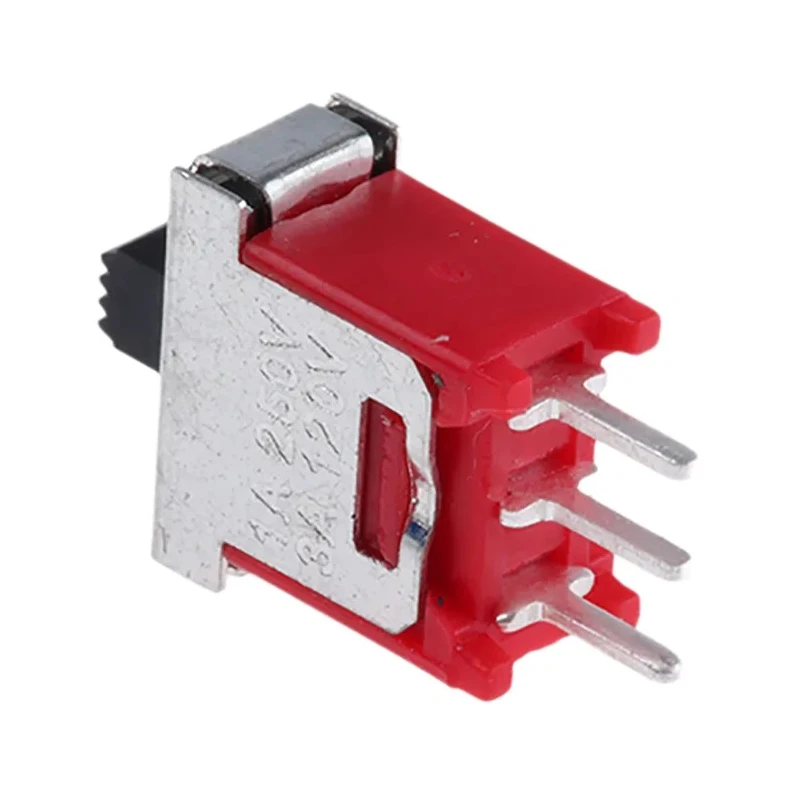

RS PRO PCB Slide Switch SPDT On-Off-On 3A Nylon 734-7268
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 10.16mm |
| Model | 734-7268 |
| Depth | 9.2mm |
| Width | 5.08mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS, cULus |
| Switch Operation | On-Off-On |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 3A |
| Mechanical Life | 30000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nylon |
| RS PRO PCB Slide Switch SPDT On-Off-On 3A NylonBrand | RS PRO |
Key Features
- This slide switch has a black nylon actuator and a DAP case with a tin-plated brass housing.
- It operates with a single pole double throw (SPDT) contact configuration and On-Off-On switch operation.
- The switch is designed for PCB mounting and uses solder terminals for easy integration.
- Rated for 3A contact current, with maximum contact voltages of 250V AC and 28V DC.
- It provides a mechanical life of 30,000 cycles ensuring reliability in repeated use.
- The switch dimensions are 10.16mm length, 9.2mm depth, and 5.08mm width for compact PCB applications.
- Suitable for wave soldering at 260ºC for 5 seconds without damage.
- Maximum operating temperature of 85°C and minimum of -30°C for diverse environments.
Product Description
RS PRO 734-7268 is a high-quality PCB Slide Switch with SPDT On-Off-On functionality, designed for reliable circuit control in compact electronic applications. The switch features a robust nylon actuator and a DAP case with tin-plated brass housing, engineered to withstand mechanical use up to 30,000 cycles.
This slide switch supports a switch contact current of 3A, suitable for AC voltage up to 250V and DC voltage up to 28V, making it versatile for various electronic circuits and control panels.
The compact size of 10.16mm length, 9.2mm depth, and 5.08mm width enables easy integration into printed circuit boards, with solder terminal connections ensuring secure mounting. It is compatible with wave soldering processes at 260ºC for five seconds, which aids in streamlined manufacturing.
Its operating temperature range from -30°C to 85°C allows usage in diverse environments from industrial to consumer electronics. Compliance with RoHS and cULus certifications confirms its adherence to international safety and environmental standards.
Black nylon actuator enhances durability and tactile feedback. SPDT On-Off-On contact configuration offers multiple switching options. Solder terminal type for secure PCB connections. Mechanical life extends to 30,000 cycles ensuring longevity.
Compact dimensions support space-saving PCB design. Suitable for wave soldering at 260ºC for production efficiency. Wide temperature operating range accommodates various application environments. Compliance with RoHS and cULus guarantees quality and safety.
Applications include instrumentation, medical devices, telecoms, and white goods. Reliable switch for electronic control in hand-held and industrial devices.
This RS PRO PCB Slide Switch 734-7268 model is an excellent choice for electronics manufacturers seeking a durable and compliant Slide Switch solution for SPDT On-Off-On applications.
Browse the Electronics & Electricals category on EnvMart for similar high-quality components and RS PRO brand products to meet your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration with an On-Off-On switch operation, allowing for multiple switching options.
The switch has dimensions of 10.16mm in length, 9.2mm in depth, and 5.08mm in width, making it suitable for compact PCB applications.
It has a maximum contact voltage of 250V AC and 28V DC, allowing it to be used in various electronic circuits.
The switch is rated for a contact current of 3A, suitable for different applications in electronic control.
This unit uses solder terminals for secure integration into printed circuit boards, ensuring reliable connections.
The mechanical life of this switch extends to 30,000 cycles, ensuring reliability during repeated use.
It operates within a temperature range of -30°C to 85°C, making it suitable for diverse environmental conditions.
The actuator is made of nylon, and the housing is constructed from DAP with tin-plated brass, providing durability for mechanical use.
Yes, it complies with RoHS and cULus certifications, confirming its adherence to international safety and environmental standards.
This model is designed for PCB mounting, making it easy to integrate into various electronic applications.
Yes, it is suitable for wave soldering at 260ºC for five seconds without damage, facilitating streamlined manufacturing processes.
It is suitable for applications in instrumentation, medical devices, telecoms, and white goods, providing reliable circuit control.
