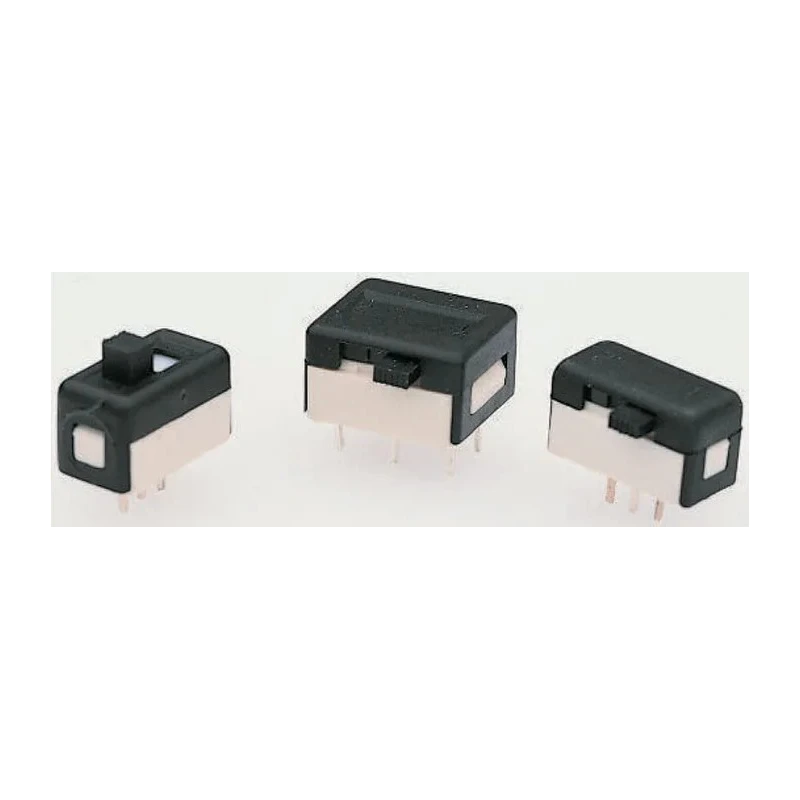

APEM PCB Slide Switch DPDT Latching On-None-On 30V DC 100mA Polyamide Actuator 25346NLD
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Length | 14.1mm |
| Model | 25346NLD |
| Depth | 8.1mm |
| Width | 14.1mm |
| Mount Type | PCB |
| Series | 25000N |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | UL |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Mechanical Life | 20000Operations |
| Electrical Life | 10000 cycles |
| Actuator Material | Polyamide |
| APEM PCB Slide Switch DPDT Latching 1A PolyamideBrand | APEM |
Key Features
- Miniature slide switch suitable for PCB mounting.
- Latching switch operation ensures stable contact engagement.
- Glass filled polyamide actuator with PBT high temperature thermoplastic case.
- Through-hole terminal type for secure soldering.
- Mechanical life rated at 20,000 operations.
- Electrical life up to 10,000 cycles for durability.
- Operating temperature range from -40°C to 85°C.
- Compliant with UL safety standards.
Product Description
APEM 25346NLD PCB Slide Switch DPDT Latching On-None-On configuration is designed for reliable control in electronic circuits with a contact current rating of 100mA and 30V DC voltage capability. The switch features a glass filled polyamide actuator and a PBT high temperature thermoplastic case, ensuring durability and resistance to mechanical and thermal stress.
Its miniature size makes it ideal for compact PCB layouts, with dimensions of 14.1mm length, 14.1mm width, and 8.1mm depth. The switch utilizes through-hole terminals for robust solder connections, making it suitable for various industrial and commercial electronic applications.
The latching operation provides stable contact engagement, preventing accidental toggling. Rated for up to 20,000 mechanical operations and 10,000 electrical cycles, this switch guarantees long-term reliability under operating temperatures ranging from -40°C to 85°C.
Designed to meet UL safety standards, the 25346NLD model is manufactured in France, assuring high-quality standards. This slide switch is perfect for use in electronic devices requiring precise switching, including automation controls, instrumentation, and consumer electronics.
Miniature slide switch suitable for PCB mounting. Latching switch operation ensures stable contact engagement. Glass filled polyamide actuator with PBT high temperature thermoplastic case. Through-hole terminal type for secure soldering.
Mechanical life rated at 20,000 operations. Electrical life up to 10,000 cycles for durability. Compact dimensions: 14.1mm length, 14.1mm width, and 8.1mm depth. Operating temperature range from -40°C to 85°C. Compliant with UL safety standards.
Country of origin: France. Explore EnvMart's extensive selection of Slide Switches and PCB mounting components for industrial and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is DPDT (Double Pole Double Throw).
The maximum operating temperature for this switch is 85°C.
The electrical life of this switch is rated for up to 10,000 cycles.
This model has dimensions of 14.1mm in length, 14.1mm in width, and 8.1mm in depth.
It utilizes through-hole terminals for secure soldering connections.
The contact current rating for the APEM 25346NLD is 100mA.
The mechanical life of this switch is rated at 20,000 operations.
The operating temperature range is from -40°C to 85°C.
Yes, it is compliant with UL safety standards.
The actuator is made from glass filled polyamide.
This model features a latching switch operation, ensuring stable contact engagement.
This switch is manufactured in France.
