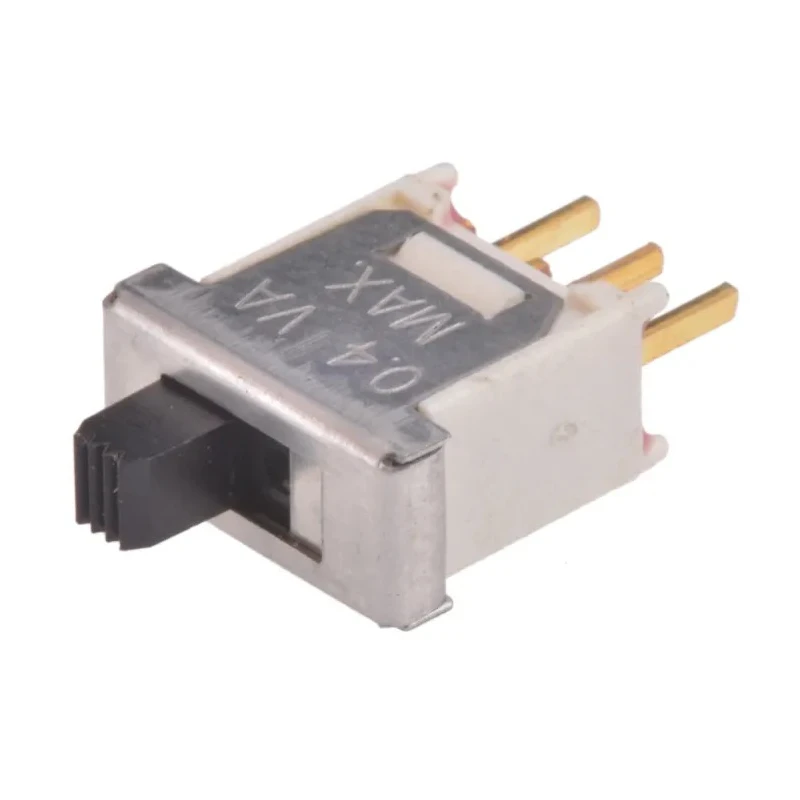

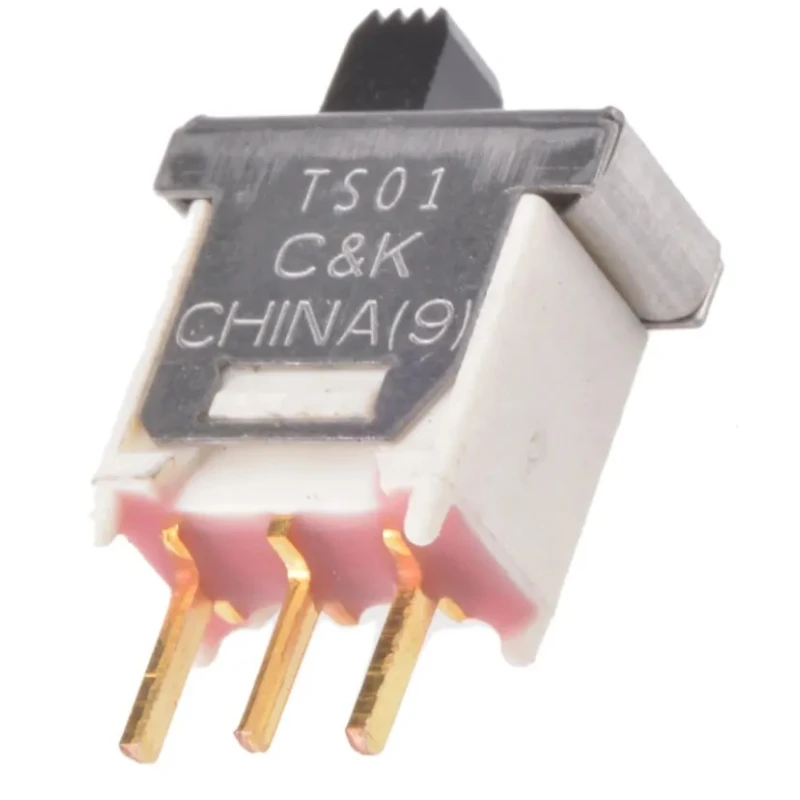

C & K Through Hole Slide Switch SPDT Latching 400mA Nylon TS01CBE
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Length | 10.16mm |
| Model | TS01CBE |
| Depth | 11.89mm |
| Width | 5.08mm |
| Mount Type | Through Hole |
| Series | TS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | PC Terminal |
| Standards/Approvals | UL, RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 60000Cycles |
| Contact AC Voltage | 120V ac |
| Actuator Material | Nylon |
Key Features
- The switch is designed for through hole mounting on PCBs for reliable electrical connections.
- Features a nylon actuator for durable and smooth manual operation.
- Supports an on-none-on switch configuration for versatile control applications.
- Electrical ratings include 28V DC and 120V AC contact voltages suitable for a range of low power circuits.
- The switch offers a mechanical life expectancy of 60,000 cycles ensuring long-term reliability.
- Compact dimensions of approximately 11.89mm depth, 10.16mm length, and 5.08mm width suitable for compact electronic devices.
- Operating temperature range from -30°C to 85°C to perform in various environmental conditions.
- Meets industry standards including UL and RoHS for safety and environmental compliance.
Product Description
C & K TS01CBE through hole slide switch is a miniature latching switch with SPDT contact configuration designed for use in test and measurement equipment, computer peripherals, and telecommunications networking equipment.
This switch operates with a latching mechanism and supports a maximum current of 400mA, making it ideal for low current electrical control applications. The actuator is constructed from nylon, ensuring durability and smooth actuation, while the housing is made from stainless steel for robust structural integrity.
Specifically designed for through hole PCB mounting, it facilitates easy integration into electronic assemblies. The compact size of the switch - with dimensions of 11.89mm depth, 10.16mm length, and 5.08mm width - makes it suitable for space-constrained installations.
It supports on-none-on configuration and is rated for contact voltages of 28V DC and 120V AC, allowing versatility in switching circuits. The mechanical life of 60,000 cycles ensures extended service life in demanding industrial or commercial environments.
It can reliably operate within a temperature range from -30°C up to 85°C, suitable for diverse climate conditions. The product complies with UL and RoHS standards, guaranteeing safety and environmental stewardship. The robust material selection including nylon actuator and stainless steel housing provides high reliability and resistance to wear.
This slide switch is packaged ready for insertion into machinery, enhancing manufacturing efficiency and product consistency.
Overall, this C & K TS01CBE slide switch is optimized for industrial, laboratory, telecommunications, and electronic manufacturing applications requiring compact, reliable, and long-life switching solutions.
Explore more Slide Switches and related electrical components available at EnvMart’s extensive electronics category for professional and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The slide switch is rated for contact voltages of 28V DC and 120V AC, with a maximum current of 400mA.
It has a mechanical life expectancy of 60,000 cycles, ensuring long-term reliability in use.
The dimensions of the switch are approximately 11.89mm in depth, 10.16mm in length, and 5.08mm in width, making it suitable for compact installations.
This model is designed for through hole mounting on PCBs, facilitating easy integration into electronic assemblies.
It operates within a temperature range from -30°C to 85°C, suitable for various environmental conditions.
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile control applications.
The actuator is made from nylon, while the housing is constructed from stainless steel, providing structural integrity.
It operates with a latching mechanism, supporting an on-none-on switch configuration.
The product meets UL and RoHS standards, ensuring safety and environmental compliance.
It features a PC terminal type, designed for easy connection to printed circuit boards.
This switch is commonly used in test and measurement equipment, computer peripherals, and telecommunications networking equipment.
The compact size of the switch makes it suitable for space-constrained installations in various electronic devices.
