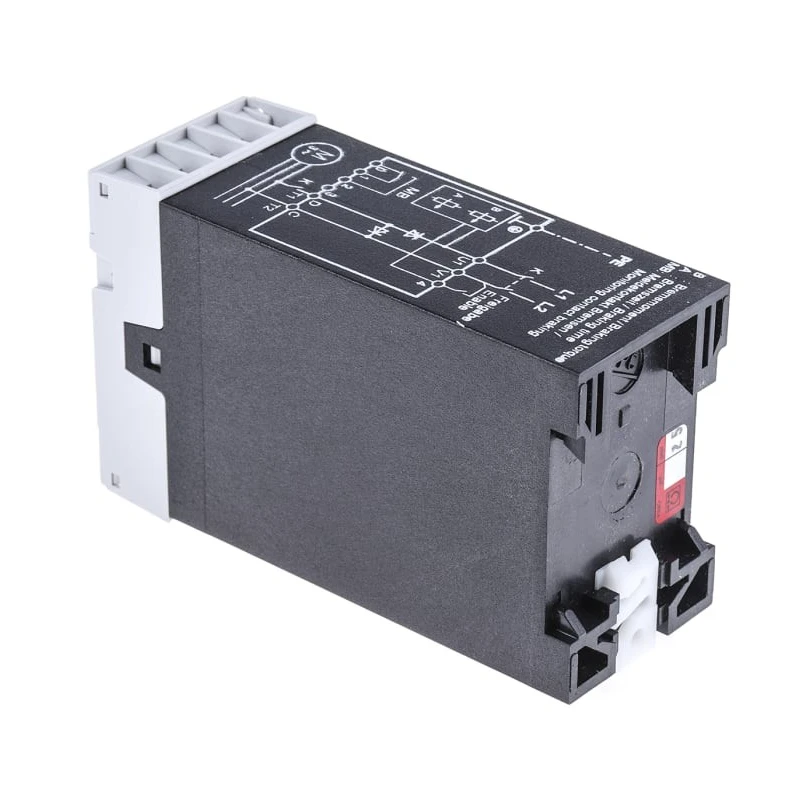

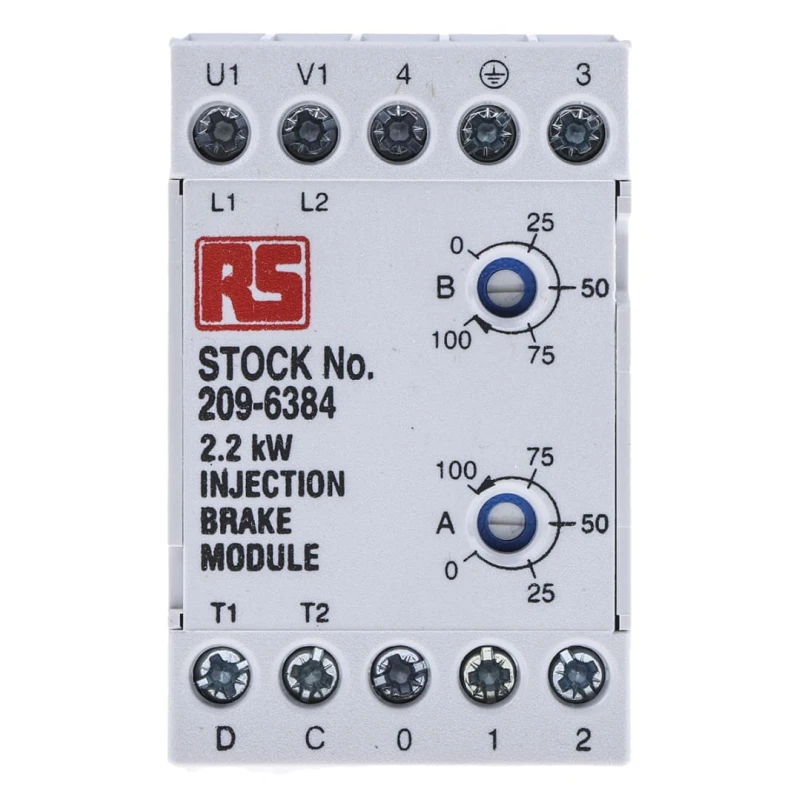

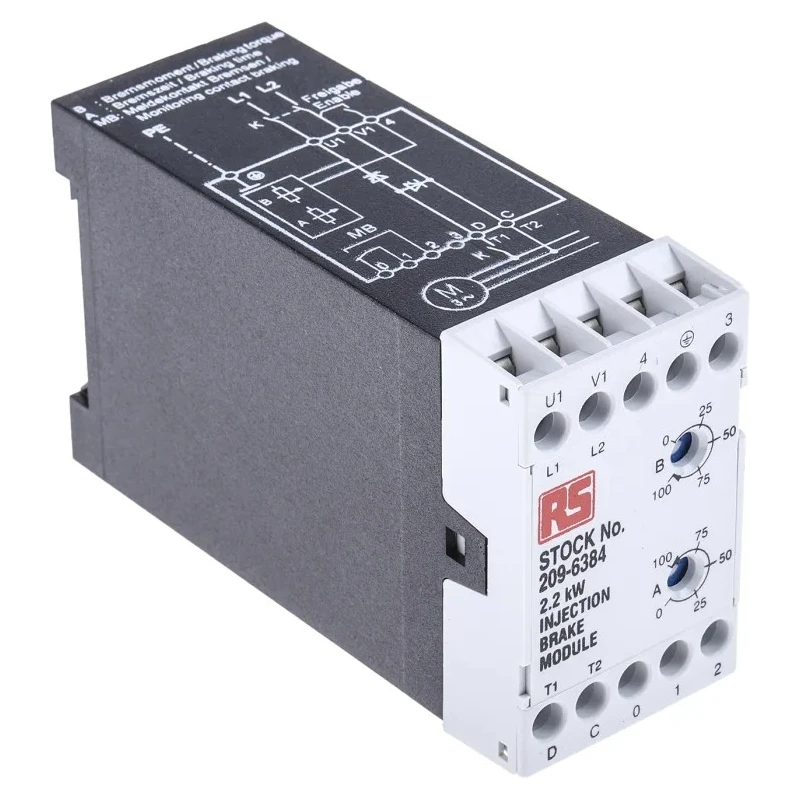

RS PRO 3 Phase Brake Module 2.2 kW, 380V AC to 415 V AC 209-6384

RS PRO 209-6384 is a high-quality 3 Phase Brake Module delivering 2.2 kW power with a supply voltage range of 380 V to 415 V AC. Designed to efficiently control the stopping of AC electric motors, this brake module works by injecting DC into the motor winding to counteract the electromagnetic field and bring the motor to a quick stop.

Ideal for industrial applications including workshops, manufacturing plants, rolling mills, and mechanical saw operations, this module offers a controlled braking function with an approximate start response time of 0.6 seconds. Its compact dimensions (120mm length, 45mm width, and 75mm depth) allow easy mounting on a standard 35 mm DIN rail.

The brake module features an IP20 rated enclosure, protecting internal components from solid objects while operating safely within a temperature range of 0°C to 40°C. It includes a starter component for streamlined installation and operation. This product is suitable for applications requiring slow and controlled stopping but is not intended for emergency brake functions.

Manufactured in Germany, the RS PRO brake module adheres to stringent electrostatic discharge protections ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring product reliability and safety. Its compliance with RoHS directives highlights its environmentally responsible design.

Three-phase brake module for AC motors. Starter included for functionality and ease of use. Power rating of 2.2 kW suitable for various industrial machines. Operating voltage between 380 V and 415 V AC. Compact IP20 rated enclosure with DIN rail mounting compatibility.

Operating temperature range from 0°C to 40°C ensures durable performance. Braking torque supported for efficient stopping. Manufactured under strict ANSI/ESD and BS EN electrostatic control standards. Ideal for controlled stopping applications in industrial and manufacturing environments.
