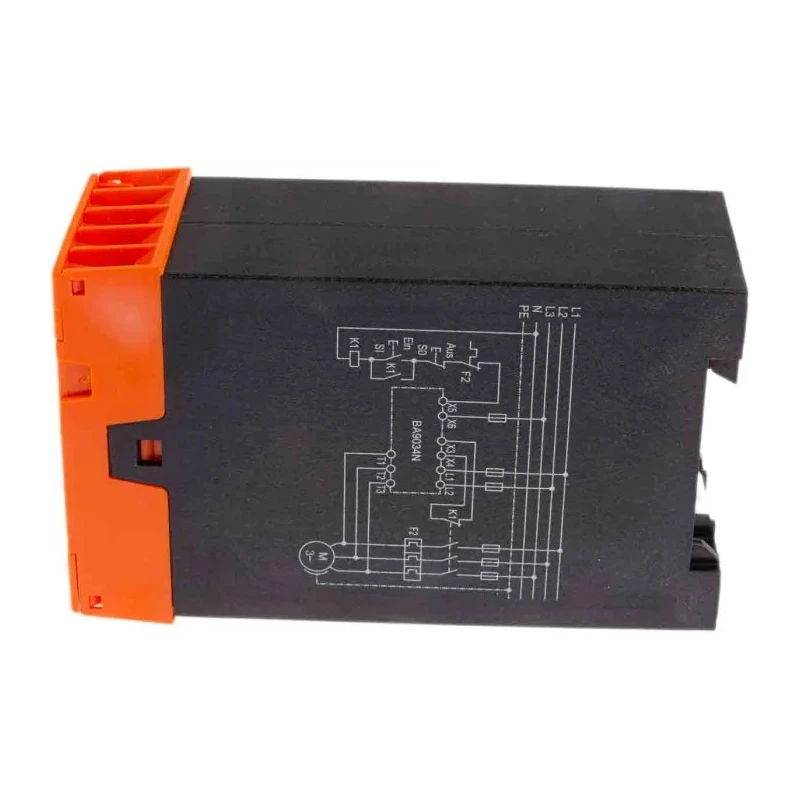

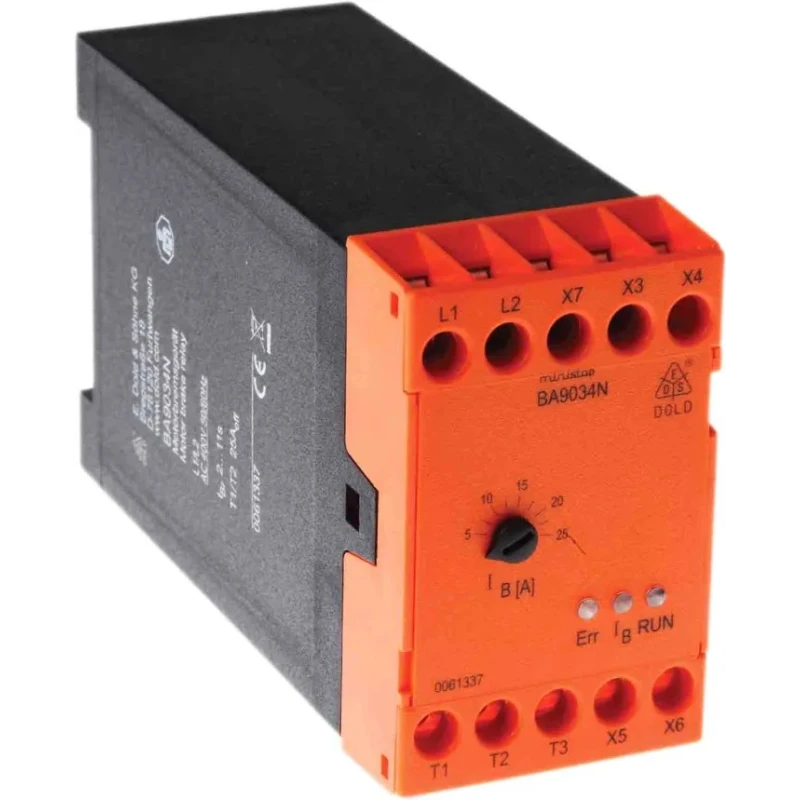

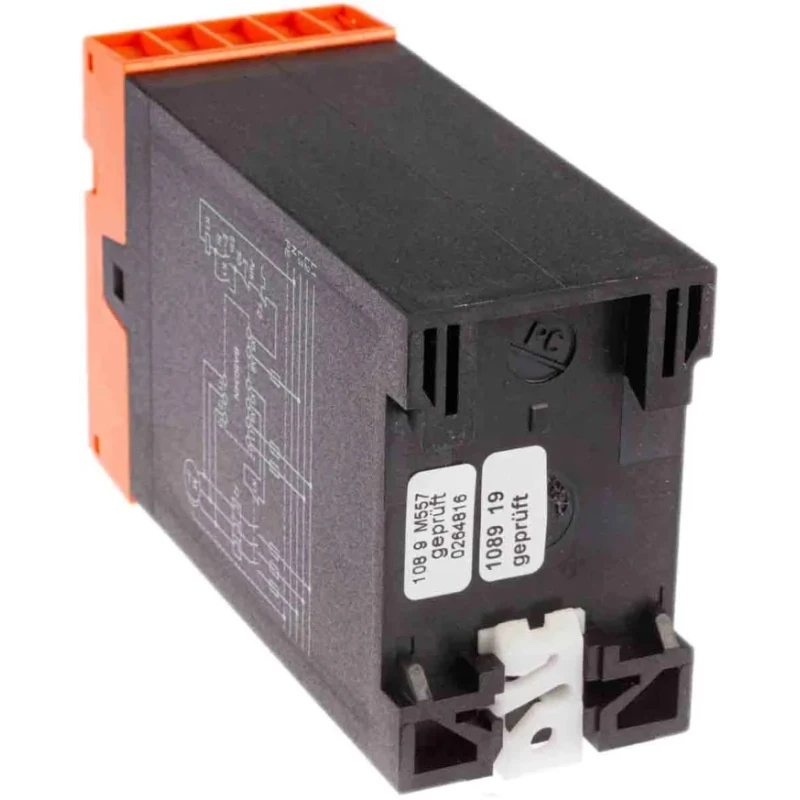

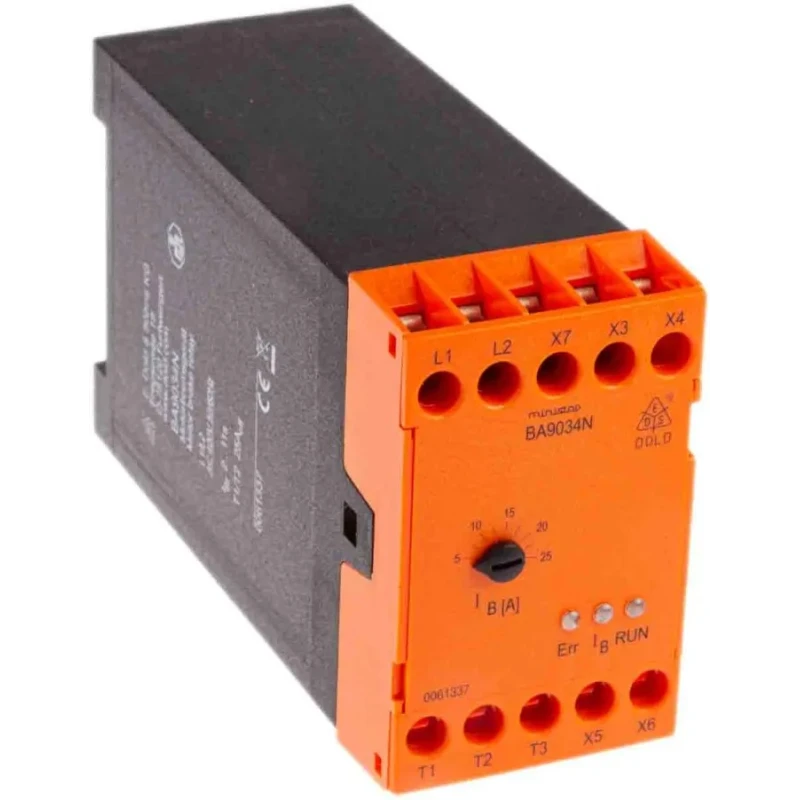

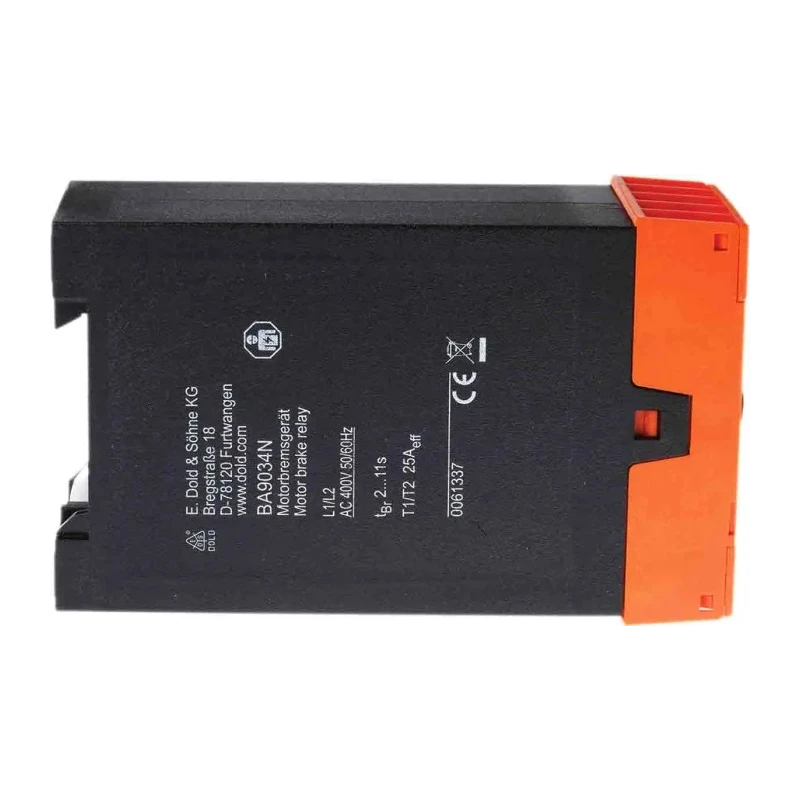

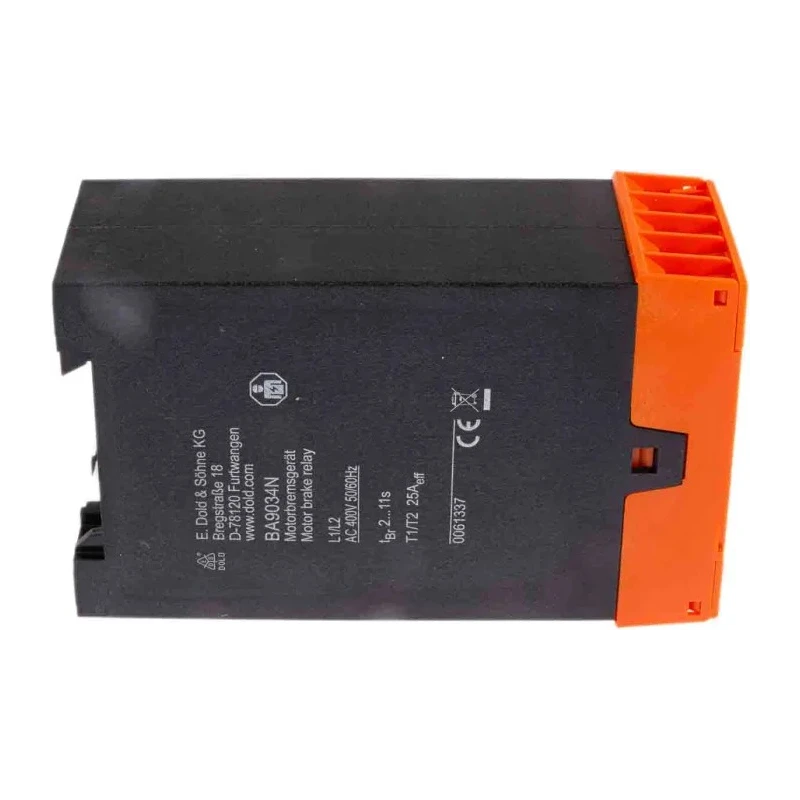

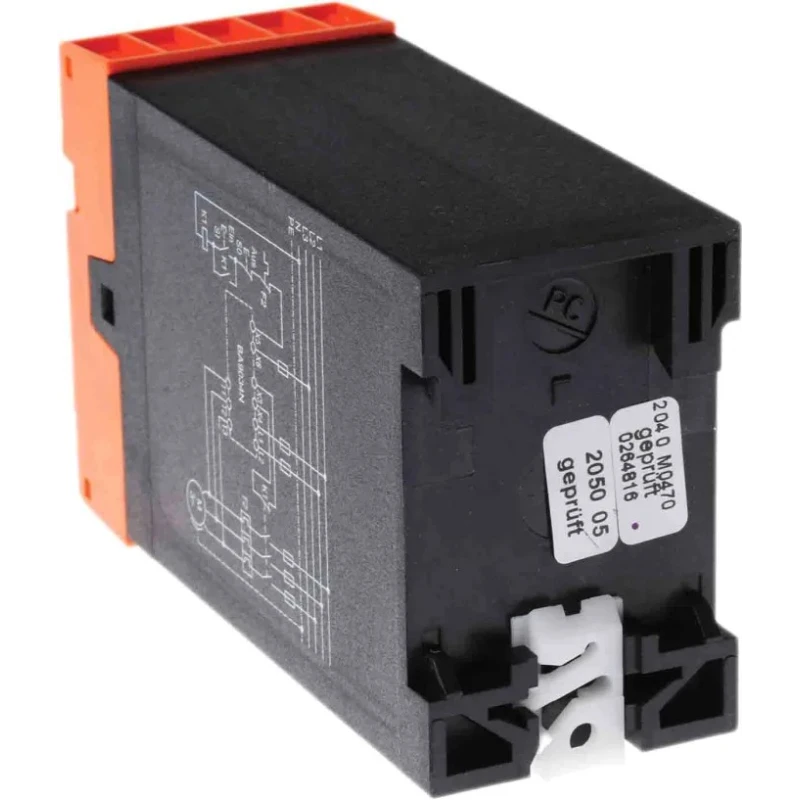

Dold 3 Phase Brake Module 5 VA 400V AC, Automatic Standstill Monitoring, Safety Brake BA9034N 25A AC50/60Hz 400V 2-11s

Dold BA9034N 25A AC50/60Hz 400V 2-11s 3 Phase Brake Module is designed for efficient, safe, and controlled braking of asynchronous motors using DC injection method.

This brake module automatically monitors motor standstill and incorporates a built-in braking contactor, allowing a safe stop by injecting DC current to neutralize the rotating magnetic field after disconnection of the 3 phase supply.

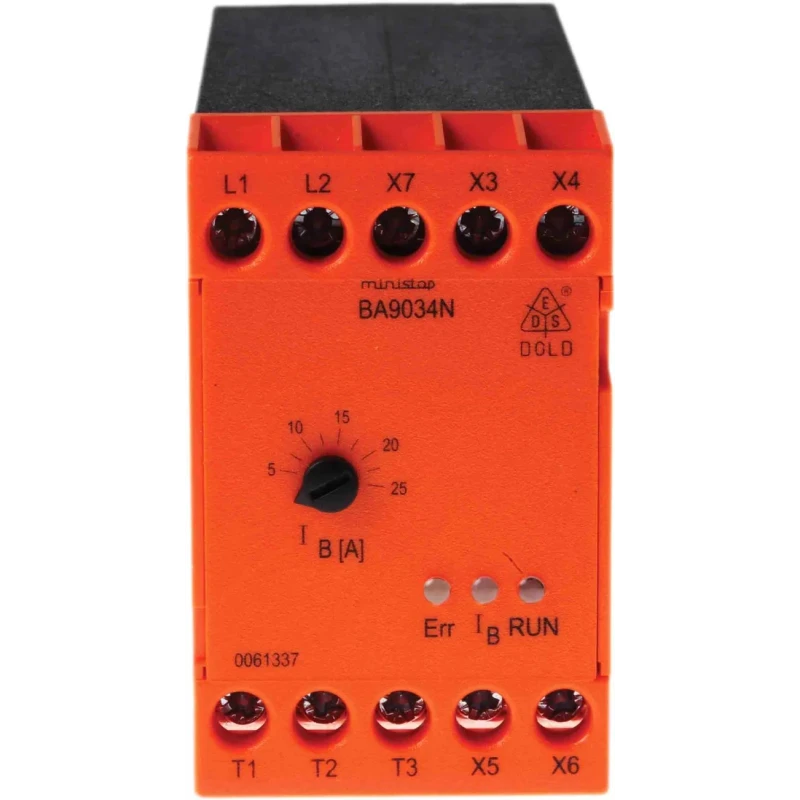

The unit features adjustable braking current via a potentiometer scaled from 10 to 100% and an integrated current limit scaled in proportion, enabling fine tuning to motor requirements.

Its compact construction with a robust IP40 and IP20 rated enclosure, measuring 45 mm in length, 73 mm in width, and 122 mm in depth, allows easy integration in existing or new installations. It includes starter equipment and inter-lock contacts to ensure safe operation preventing motor restart during DC braking.

The brake module is suitable for both single and three phase asynchronous motors across various industrial applications such as automation, electric motors control, manufacturing equipment, and HVAC systems.

Manufactured to RoHS standards in Germany, the BA9034N series emphasizes safety, cost-effectiveness, and maintenance-free operation realized through microcontroller-enabled control and short stop cycles.

Suitable for single and three phase asynchronous motors. Integrates automatic standstill detection with an internal braking contactor. Easily adjustable braking current from 10 to 100% via potentiometer. Compact and cost-effective design with microcontroller control.

Provides maintenance and wear-free DC injection braking. Operating temperature range from 0°C to 45°C ensuring reliable performance. Enclosure dimensions: Length 45mm, Width 73mm, Depth 122mm. IP40 and IP20 rated enclosure for protection.

Meets RoHS standards and manufactured in Germany. Includes starter and inter-lock contact for safety. Explore our extensive range of Brake Modules at EnvMart for industrial automation and motor brake applications.
