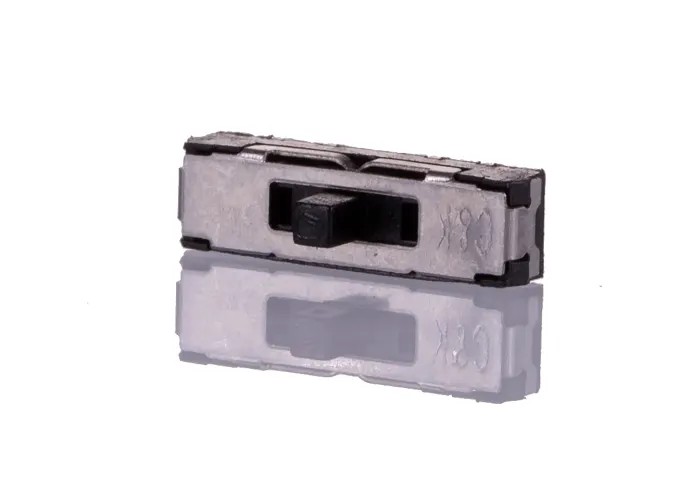

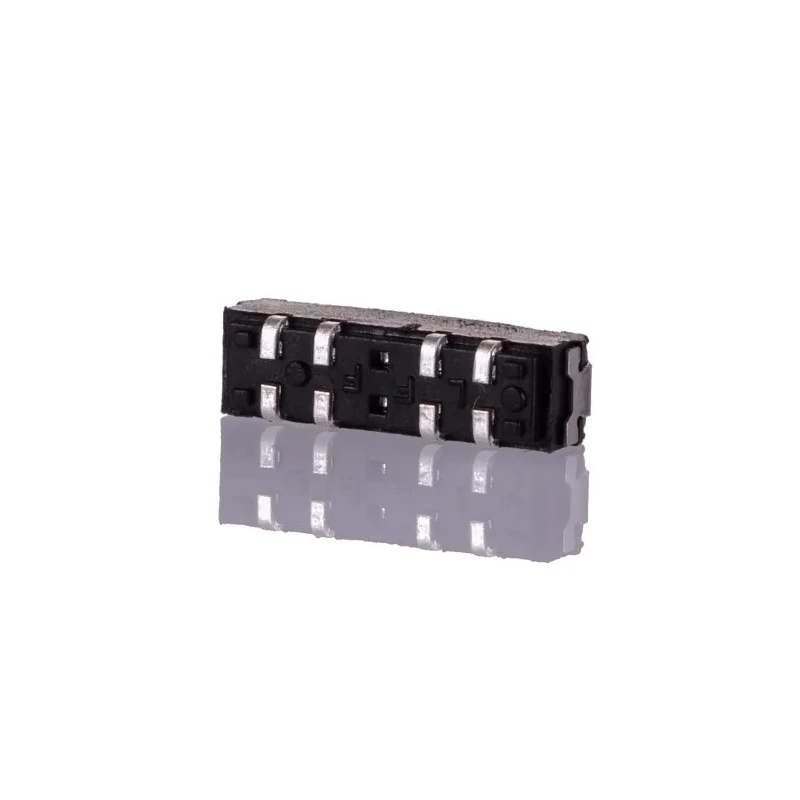

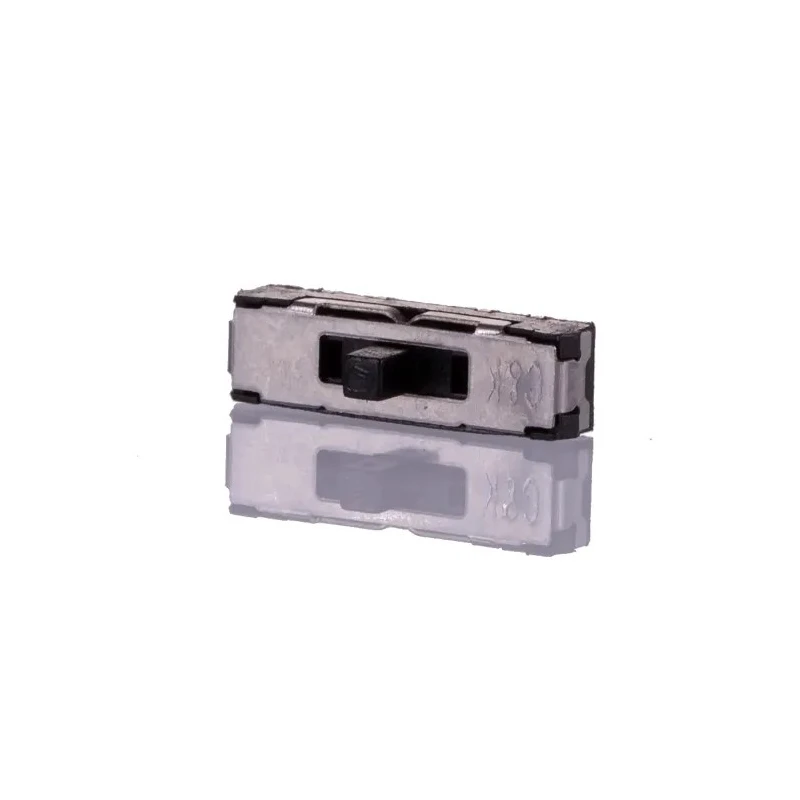

C & K Surface Slide Switch DP3T On-On-On 300mA Copper Actuator

Free Delivery in India | Lowest Global Shipping Charges

C & K Surface Slide Switch DP3T On-On-On 300mA Copper Actuator

Name: C & K Surface Slide Switch DP3T On-On-On 300mA Copper Actuator
Brand: C & K
SKU: 148203
Price: 1.29 USD
Availability: InStock



Category Slide Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Length	13mm
Model	DP3T
Depth	5.5mm
Width	5.5mm
Mount Type	Surface
Series	JS
Maximum Operating Temperature	85°C
Contact Configuration	DP3T
Switch Configuration	On-On-On
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS, UL
Switch Operation	On-On-On
Contact DC Voltage	6V dc
Switch Contact Current	300mA
Mechanical Life	5000Cycles
Actuator Material	Copper

Key Features

This slide switch features a DP3T (Double Pole Triple Throw) contact configuration.
It supports an operating current of 300mA with a DC voltage rating of 6V.
The switch operates in an On-On-On configuration for flexible control.
Constructed with a copper actuator for durable performance.
It has a compact size with dimensions of 13mm length, 5.5mm width, and 5.5mm depth.
Designed for surface mount installation with solder terminals.
Its mechanical life expectancy is rated for 5000 cycles.
Operates reliably between -40°C and 85°C temperature range.

Product Description

C & K JS203011JCQN Surface Slide Switch DP3T On-On-On 300mA Copper actuator is a compact and durable electrical component designed for surface mounting applications requiring multi-position switching.

This switch features a DP3T contact configuration offering double pole triple throw switching capability, ideal for complex circuit control. It is capable of handling a maximum switch contact current of 300mA at 6V DC, making it suitable for low voltage applications. The switch operation is On-On-On, providing three switch positions for versatile functionality in diverse electronic devices.

The actuator material is copper, ensuring good conductivity and corrosion resistance. Mechanical life is rated at 5000 cycles, balancing durability with compact form factor. The switch includes solder-type terminals for reliable PCB surface mount installation.

With compact dimensions of 13mm length, 5.5mm width, and 5.5mm depth, this switch fits well in tight electronic layouts. It operates reliably within a temperature range from -40°C minimum to 85°C maximum, suitable for demanding industrial, instrumentation, and consumer electronics environments.

This product complies with RoHS and UL standards, ensuring environmental safety and certified quality. It is manufactured in China and is an excellent choice for engineers designing controllers, telecommunications equipment, computer peripherals, and HVAC controls.

Common industrial applications include use in audio equipment, alarms, thermostat select circuits, and instrumentation devices where precise and durable switching is required. This Slide Switch features a DP3T contact configuration.

Supports 300mA switch contact current at 6V DC. On-On-On switch operation for multi-position control. Copper actuator for electrical and mechanical reliability. Compact size suitable for surface mount PCB assembly. Mechanical life of 5000 cycles for dependable switching.

Operates in temperature range -40°C to 85°C. RoHS and UL certified for quality assurance. Explore more electronics switches and components in the Electronics & Electricals category at EnvMart to find high-quality industrial electrical parts for your applications.
