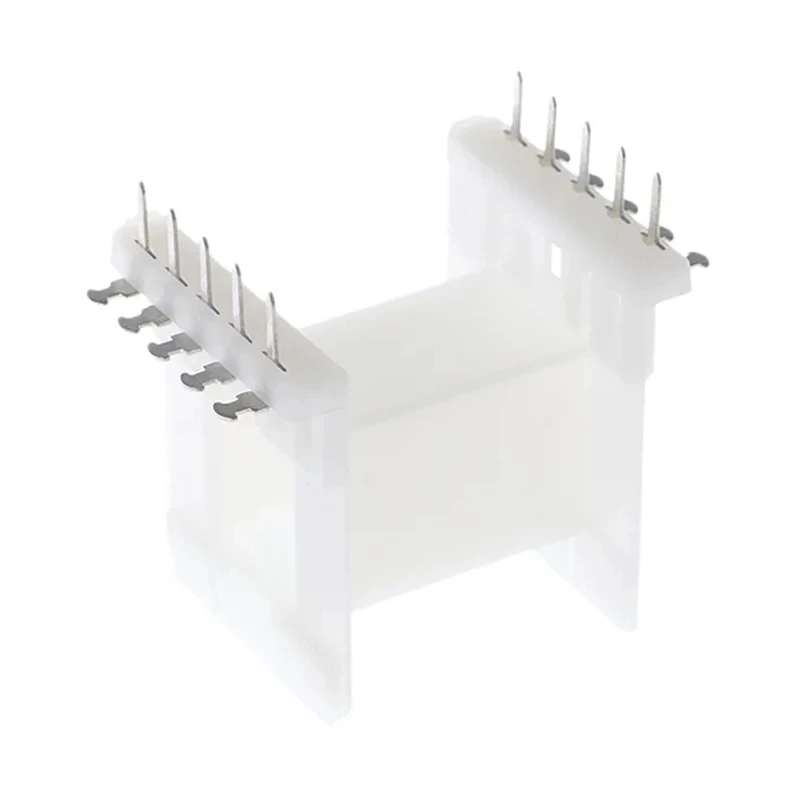

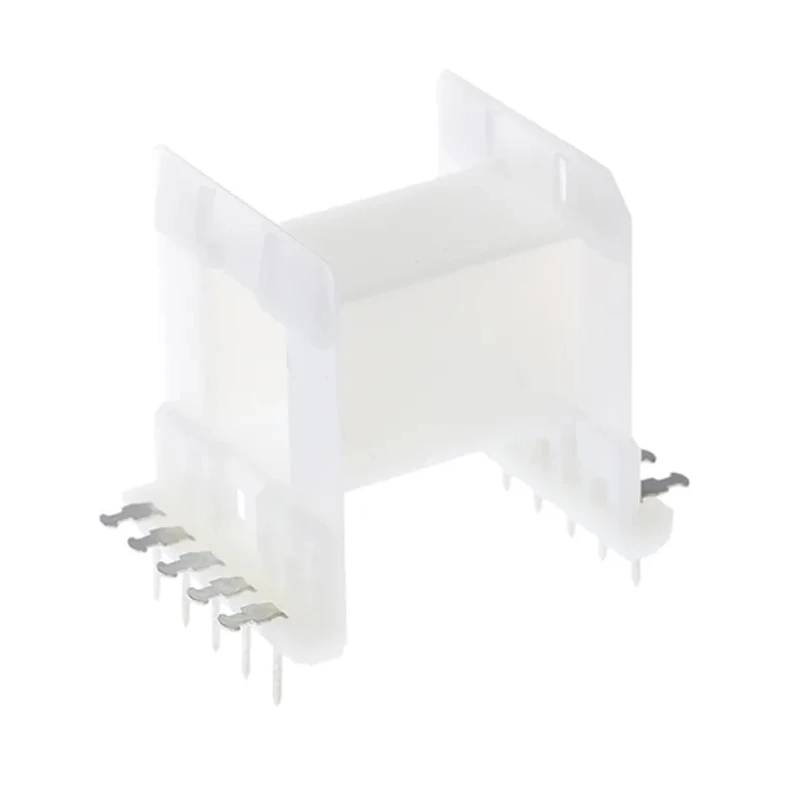

TDK E 42 Coil Former Transformer Accessory for use with B66325 B66329 B66242J1000R001

TDK B66242J1000R001 E 42 Coil Former is a high-quality Transformer Accessory engineered to be compatible with B66325 and B66329 ferrite cores. Designed for demanding electronic component assembly, this coil former accommodates E 42/21/15 and E 42/21/20 core types without an air-gap, ensuring precise coil placement and optimal transformer performance.

The coil former features a length of 29.2 mm, width of 35 mm, and depth of 37.5 mm, providing a compact yet robust form factor suitable for various transformer designs. It supports a maximum operating temperature of 155°C, making it suitable for applications where thermal tolerance is critical.

Applications include power supplies, audio transformers, and other industrial transformer assemblies. Constructed for use with E 42 ferrite cores, including models B66325, B66329. Ensures mechanical stability and precision coil winding support.

Compact dimensions allow integration into tight assembly spaces. High operating temperature rating enhances durability in thermal environments. RoHS certification confirms adherence to environmental standards. Widely applicable in industrial, laboratory, and commercial transformer production.

Supports efficient transformer manufacturing workflows.

This coil former is an essential accessory in transformer manufacturing and repair, providing dependable support for coils in power conversion and signal processing devices. For additional transformer accessories and electronic components, explore the comprehensive TDK range on EnvMart.
