onsemi 1 2-Input AND, NAND Logic Gate 8-Pin TSSOP MC100EP05DTG

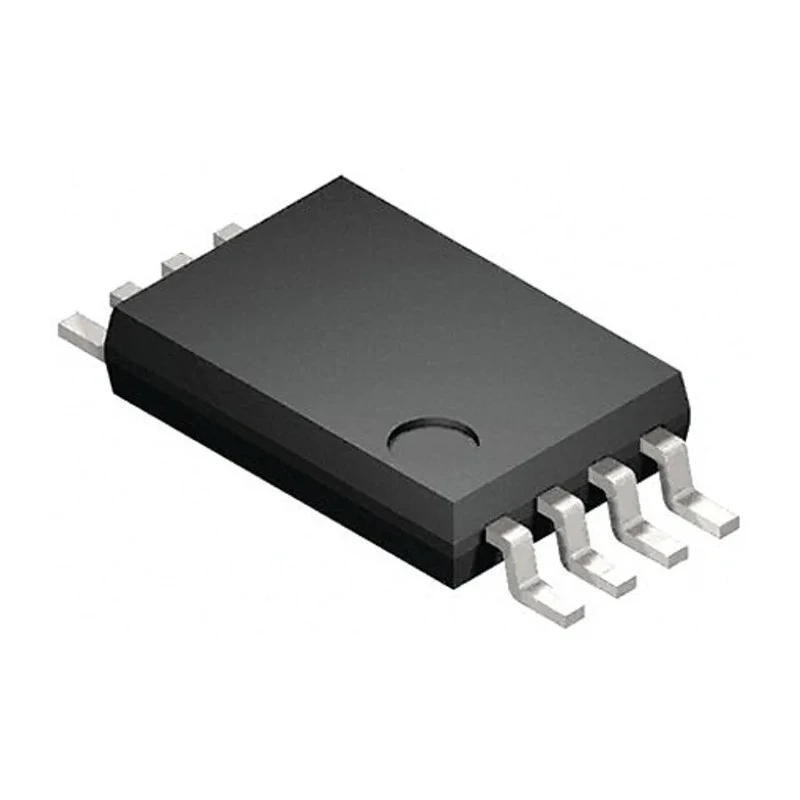

Name: onsemi 1 2-Input AND, NAND Logic Gate 8-Pin TSSOP MC100EP05DTG
Brand: onsemi
SKU: 132604
Price: 10.61 USD
Availability: InStock



Category Logic Gate Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	0.95mm
Length	3.1mm
Model	MC100EP05DTG
Mount Type	Surface
Output type	ECL
Series	100EP
Input Type	ECL
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	8
Number of Elements	1
Maximum Supply Voltage	5.5V
Logic Family	EP
Logic Function	AND, NAND
Minimum Supply Voltage	-3V
Maximum Propagation Delay Time @ CL	320ps
Maximum Low Level Output Current	0.5μA
Number of Inputs per Gate	2

Key Features

Performs AND and NAND logic functions with a single element.
Uses Emitter Coupled Logic (ECL) technology for high-speed performance.
Operates with a supply voltage from -3V to 5.5V.
Features a maximum propagation delay of 320 picoseconds.
Designed to operate within temperatures from -40°C to 85°C.
Comes in a compact surface mount TSSOP package with 8 pins.
Input type is ECL with 2 inputs per gate and no Schmitt trigger input.
Logic family is EP series suitable for precision timing applications.

Product Description

onsemi MC100EP05DTG is an advanced 1 2-Input AND, NAND Logic Gate designed in an 8-Pin TSSOP surface mount package. Utilizing Emitter Coupled Logic (ECL) technology, this device provides ultra-high-speed digital logic functionality suitable for timing-critical industrial electronics, telecommunications, and computing applications.

This logic gate integrates a single element with two inputs, performing both AND and NAND functions efficiently within the EP logic family known for its precision and speed. The device operates on a supply voltage range starting from -3 volts to a maximum of 5.5 volts and is optimized for operating temperatures from -40 to 85 degrees Celsius, ensuring reliability in harsh environmental conditions.

The maximum propagation delay time at specified load capacitance is 320 picoseconds, enabling rapid response in high-frequency circuits. The compact TSSOP package has a pin count of 8, with a height of 0.95 mm and length of 3.1 mm, facilitating efficient PCB space utilization in dense electronic assemblies.

The input type is standard ECL without Schmitt trigger, providing stable and clean switching characteristics. Its maximum low-level output current is 0.5 microamperes, supporting low power consumption designs. This logic gate is suitable for industrial electronics, laboratory instrumentation, telecommunications equipment, and other manufacturing sectors requiring precise and fast logic operations.

Single 2-input AND, NAND logic element in EP logic family. Surface mount 8-pin TSSOP package for compact PCB integration. High-speed ECL operation with 320 ps propagation delay. Wide operating temperature range from -40°C to 85°C.

Supply voltage from -3V to 5.5V for flexible power design. Low output current consumption enhances system efficiency. Ideal for industrial, telecommunications, and computing applications. Explore more Logic Gates and semiconductor products in the Electronics & Electricals sector at EnvMart, your destination for industrial-grade components and parts.
