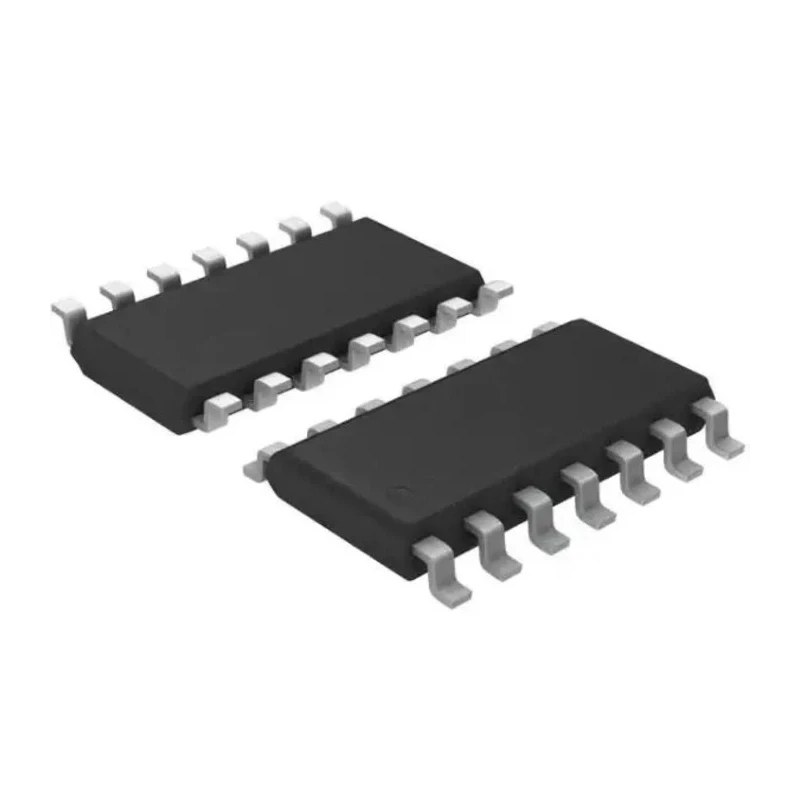

STMicroelectronics Hex Schmitt Trigger Inverter IC, Schmitt Trigger Input, Through Hole, 3 - 20V, HCF40106YM013TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | HCF40106YM013TR |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | HCF40106YM013TR |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 20V |
| Logic Function | Inverter |
| Minimum Supply Voltage | 3V |
Key Features
- Hex inverter with Schmitt trigger input for enhanced noise immunity.
- Wide supply voltage range from 3V to 20V for versatile circuit compatibility.
- Through hole mounting for reliable mechanical stability and easy prototyping.
- Operates in extreme temperatures from -55°C to 125°C.
- Low input leakage current and low VDD to VSS current during slow input ramp.
- Symmetrical output characteristics standardized for consistent performance.
- Hysteresis voltage typically 0.9V at 5V, 2.3V at 10V, 3.5V at 15V supply.
- Packaged in SO-14 with 8.75mm length and 4mm width.
Product Description
STMicroelectronics HCF40106YM013TR Hex Schmitt Trigger Inverter IC delivers reliable inversion with Schmitt trigger input, ideal for robust digital logic applications. Its monolithic design leverages metal oxide semiconductor technology for durability and performance.
This IC features six Schmitt trigger inverter circuits, providing hysteresis action without external components. With a wide supply voltage range from 3V to 20V and excellent noise immunity of over 50%, it suits diverse power environments. The input type is Schmitt trigger, allowing for greater signal integrity in noisy settings.
Hex inverter configuration ensures multiple Schmitt trigger channels for complex logic designs. Low quiescent and input leakage currents minimize power consumption and reduce signal drift. Extreme operating temperature range from -55°C to 125°C makes it suitable for industrial, automotive, and scientific applications.
Through hole mounting enhances mechanical stability, easing integration into existing PCB layouts. Standardized symmetrical output ensures compatibility with a broad range of downstream logic ICs. Hysteresis voltages enable accurate transition points and prevent unintended signal oscillations.
This IC is RoHS compliant and built for quality-critical environments. Its compact 8.75mm x 4mm footprint is ideal for space-limited designs. Use cases include industrial automation, laboratory signal conditioning, HVAC controls, manufacturing logic circuits, and embedded system prototyping.
STMicroelectronics logic ICs are backed by global standards, delivering reliability and performance for demanding electronics applications. Explore more ICs and semiconductor solutions in the Logic ICs category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for this model is from 3V to 20V.
This IC operates within a temperature range of -55°C to 125°C.
It features a Schmitt Trigger input type, which enhances noise immunity and signal integrity.
The dimensions of this model are 8.75mm in length, 4mm in width, and 1.75mm in height.
This IC contains six Schmitt trigger inverter circuits.
The typical hysteresis voltage is 0.9V at 5V, 2.3V at 10V, and 3.5V at 15V supply.
It uses a through hole mounting type, which provides reliable mechanical stability.
Yes, this IC is RoHS compliant, making it suitable for quality-critical environments.
The logic function of this model is an inverter.
It features low input leakage current, which helps to minimize signal drift.
This IC is suitable for applications in industrial automation, laboratory signal conditioning, HVAC controls, and embedded system prototyping.
The symmetrical output characteristics are standardized for consistent performance across various applications.
