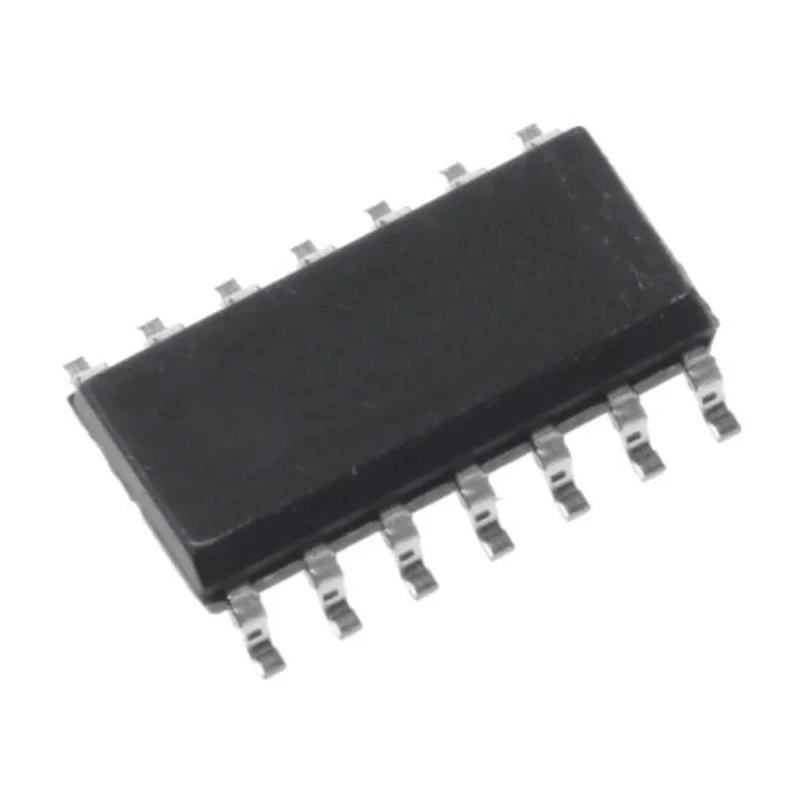

onsemi 1 1-Input XOR Logic Gate, 14-Pin SOIC MC74HC86ADG

onsemi MC74HC86ADG is a high-performance silicon-gate CMOS 1 1-input XOR logic gate housed in a 14-pin Small Outline Integrated Circuit (SOIC) package suitable for surface mounting applications. The device operates from 2 to 6 volts, providing robust performance with a maximum propagation delay time of 26 nanoseconds, making it ideal for high-speed digital logic circuits.

This IC features CMOS inputs compatible with various output types including TTL, LSTTL, NMOS, and CMOS, allowing flexible interfacing in mixed-logic systems. It conforms to automotive quality standards with AEC-Q100 certification, supporting applications in automotive electronics requiring reliability over a wide temperature range of -55°C to 125°C.

With a low input current of only 1 mA and an output drive capability of 10 LSTTL loads, the MC74HC86ADG provides efficient power usage while delivering stable logic levels. The chip complexity encompasses 56 Field Effect Transistors (FETs) equating to 14 logic gates, making it a versatile component in digital system design.

The compact form factor with a height of 1.5 mm and length of 8.75 mm enables its use in space-constrained applications and modern printed circuit boards (PCBs). The 14-pin SOIC package facilitates easy surface mount assembly processes.

Operates on supply voltage from 2 to 6 V for versatile power sources. Maximum propagation delay time @ CL is 26 ns for fast switching. Logic function is XOR with a single input per gate. Compatible output types: TTL, LSTTL, NMOS, and CMOS.

Designed to meet automotive grade standards with AEC-Q100 compliance. Wide operating temperature range from -55°C to 125°C for harsh environments. Low input current of 1 mA reduces power consumption. Output drive capability supports up to 10 LSTTL loads.

Compact 14-pin SOIC package with 1.5 mm height and 8.75 mm length.

This device is widely used in electronics for digital logic operations including industrial control systems, automotive electronics, telecommunications, computing devices, and other semiconductor applications requiring reliable XOR logic gate functions. Its combination of performance, packaging, and standards compliance make it an essential component in modern electronic circuit design.
