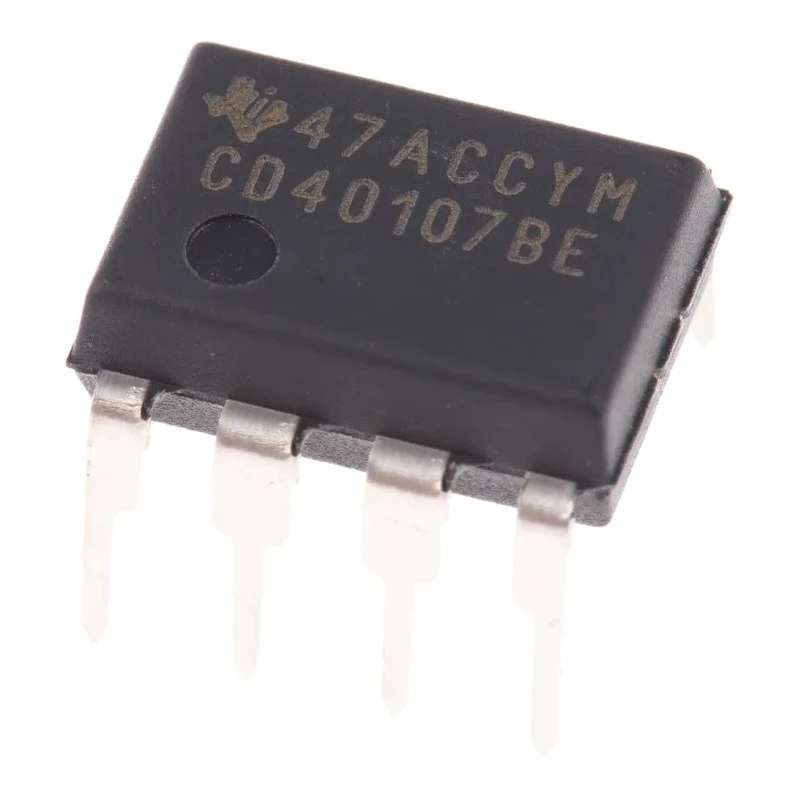

Texas Instruments CD40107BE 2 2-Input NAND Logic Gate, PDIP, CMOS, 3–18V, 8-Pin, Through Hole

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments CD40107BE 2 2-Input NAND Logic Gate, PDIP, CMOS, 3 - 18V, 8-Pin, Through Hole

Name: Texas Instruments CD40107BE 2 2-Input NAND Logic Gate, PDIP, CMOS, 3 - 18V, 8-Pin, Through Hole
Brand: Texas Instruments
SKU: 88434
Price: 0.73 USD
Availability: InStock



Category Logic Gates Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	9.81mm
Model	CD40107BE
Mount Type	Through Hole
Output type	Open Drain
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Pin Count	8
Number of Elements	2
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	NAND
Minimum Supply Voltage	3V
Maximum Propagation Delay Time @ CL	60ns
Maximum Low Level Output Current	89mA
Number of Inputs per Gate	2
Wide operating voltage range	3 to 18V

Key Features

Dual 2-input NAND logic gate integrated circuit for CMOS logic applications.
8-pin PDIP package supports convenient through hole mounting.
Wide operating voltage range from 3V to 18V for flexible circuit designs.
Maximum propagation delay time of 60ns ensures fast logic responses.
Operates reliably over a temperature range from -55°C to 125°C.
Open drain output type suitable for wired logic implementations.
Maximum low level output current of 89mA enables robust output drive.
Complies with the 4000 CMOS logic family standards for compatibility.

Product Description

Texas Instruments CD40107BE is a dual 2-input NAND logic gate integrated circuit designed for a variety of CMOS logic applications. This IC features two independent NAND gates, making it highly suitable for digital circuit designs requiring logical NAND operations. It is housed in an 8-pin PDIP package, providing ease of handling and compatibility with standard through hole assembly processes.

The CD40107BE supports a wide input voltage range from 3V to 18V, allowing users to employ it in diverse power environments. Its CMOS technology ensures low power consumption and efficient operation. With a maximum propagation delay of 60ns, the IC delivers fast and reliable logic responses, assuring consistent performance in time-sensitive applications.

This logic gate operates efficiently across a broad ambient temperature range of -55°C to 125°C, making it robust for industrial, laboratory, and commercial electronics. The open drain output type enables convenient wired logic and easy interfacing with other components. The IC offers a maximum low level output current of 89mA, supporting robust signal output.

CD40107BE belongs to the 4000 CMOS logic family, ensuring broad compatibility with other devices in similar logic circuits. Its input type is CMOS, and the IC features two elements with two inputs per gate, providing versatility in logic design. No Schmitt trigger input is present but the reliability of the CMOS architecture makes it suitable for noise-resistant applications.

Typical uses include industrial control systems, digital logic circuit implementation, laboratory electronics prototyping, commercial logic design and construction, and educational electronics projects. The device's durable construction and reliable specifications support its deployment where stable and precise logical operations are needed.

For engineers and designers seeking a dependable NAND gate solution with flexible voltage range and low power requirements, the Texas Instruments CD40107BE is an ideal choice. Explore more from the 4000 series CMOS logic family for additional compatible products.

Explore more products in our Logic Gates category.
