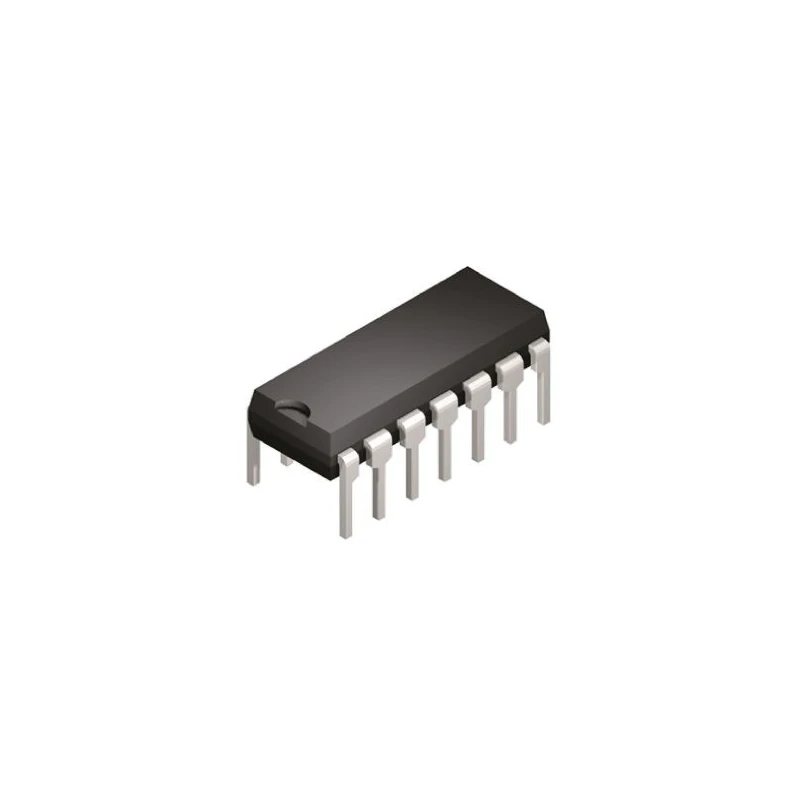

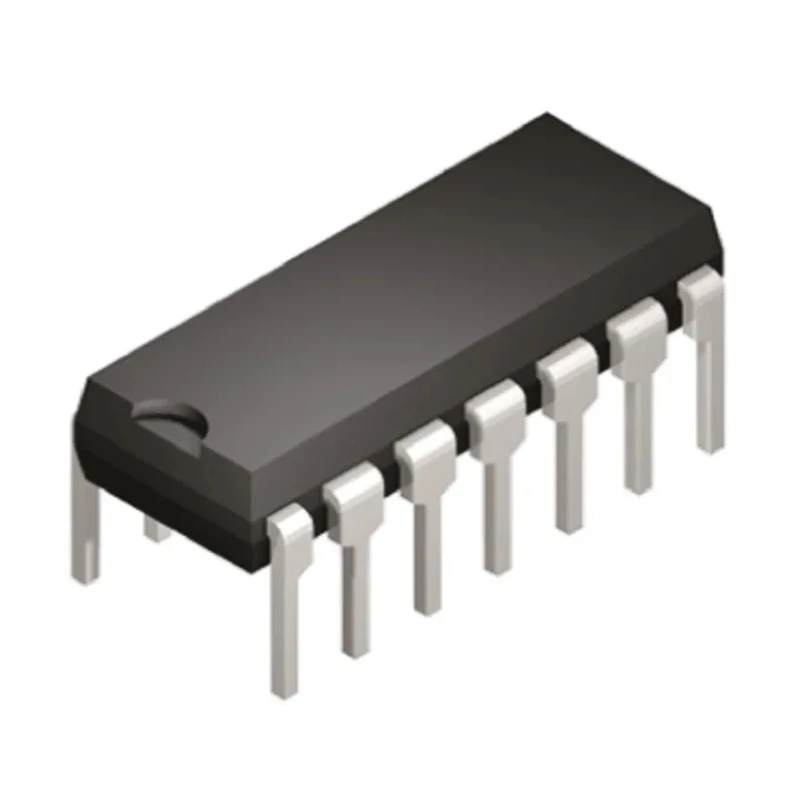

Texas Instruments 4 2-Input OR Logic Gate, 14-Pin PDIP CD74HCT32E

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 4 2-Input OR Logic Gate, 14-Pin PDIP CD74HCT32E

Name: Texas Instruments 4 2-Input OR Logic Gate, 14-Pin PDIP CD74HCT32E
Brand: Texas Instruments
SKU: 129286
Price: 1.26 USD
Availability: InStock



Category Logic Gate Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD74HCT32E
Mount Type	Through Hole
Compatibility	Input TTL, Output CMOS
Output type	CMOS
Series	CD74
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	5.5V
Logic Family	HCT
Logic Function	OR
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-4mA
Maximum Propagation Delay Time @ CL	36ns
Maximum Low Level Output Current	4mA
Number of Inputs per Gate	2
Texas Instruments, 4 2-Input OR Logic Gate, 14-Pin PDIPBrand	Texas Instruments

Key Features

The device uses CMOS technology compatible with TTL inputs and CMOS outputs.
It operates at a supply voltage range of 4.5 to 5.5 volts.
Includes four OR gates with two inputs per gate for digital logic applications.
The maximum propagation delay time is 36 nanoseconds at the specified load.
The IC supports through-hole mounting with a 14-pin PDIP package type.
Operates reliably between -55°C and 125°C ambient temperatures.
Max output currents are ±4 milliamps at high and low logic levels respectively.
It is part of the CD74 series with a logic family of HCT.

Product Description

Texas Instruments CD74HCT32E is a high-speed CMOS Logic 4 2-Input OR gate integrated circuit, encapsulated in a 14-pin PDIP package, designed for through-hole mounting. It belongs to the 74HCT logic family, known for its compatibility with TTL inputs and CMOS outputs, combining fast switching speed with low power consumption.

This IC provides four independent OR gates, each with two inputs, making it suitable for various digital logic applications requiring OR logic functions. The device operates over a wide voltage range of 4.5V to 5.5V, ensuring flexibility for different power supply environments.

With a maximum propagation delay of 36 nanoseconds at the standard load capacitance, it enables efficient signal processing and timing performance. The IC maintains reliable operation within a temperature range from -55°C to 125°C, making it suitable for industrial and commercial electronics applications.

The maximum high-level output current is -4mA and the maximum low-level output current is 4mA, supporting driving capabilities required in logic circuits. Its input type is CMOS, and it does not include Schmitt trigger inputs, focusing on standard logic performance.

Texas Instruments ensures long-term availability and quality with this CD74 series component, designed for integration in digital electronics, embedded controllers, communication equipment, and industrial control systems.

The device is contained in a 14-pin PDIP package for easy integration on through-hole PCBs. Four OR gates with two inputs per gate offer flexible circuit design possibilities. High-speed CMOS technology provides fast switching while maintaining low power consumption.

Compatible with TTL inputs and CMOS output for mixed logic system integration. Wide operational temperature range ensures robustness in harsh industrial environments. Ideal for industrial control, signal processing, and embedded digital circuits.

Explore more electronic components and logic ICs from Texas Instruments on EnvMart to find suitable parts for your digital logic projects and embedded system designs.

Explore more products in our Logic Gate category.
