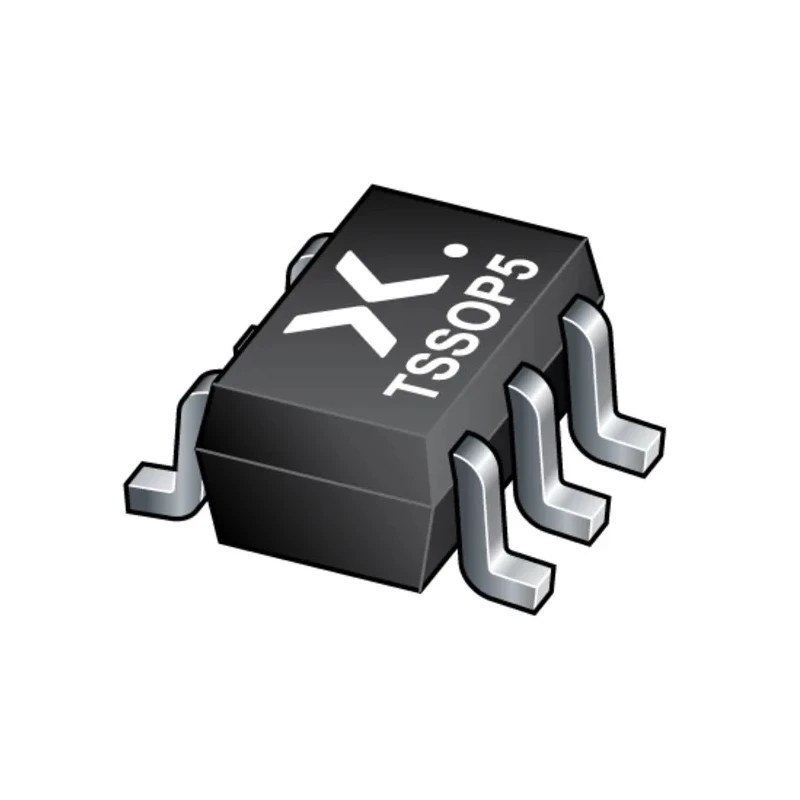

Nexperia 1 2-Input AND Logic Gate, CMOS, 5-Pin TSSOP, 74AHC1G08GW-Q100,1

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1 2-Input AND Logic Gate, CMOS, 5-Pin TSSOP, 74AHC1G08GW-Q100,1

Name: Nexperia 1 2-Input AND Logic Gate, CMOS, 5-Pin TSSOP, 74AHC1G08GW-Q100,1
Brand: Nexperia
SKU: 94991
Price: 0.08 USD
Availability: InStock



Category Logic Gates Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.25mm
Model	74AHC1G08GW-Q100,1
Mount Type	Surface
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	74AHC
Logic Function	AND
Minimum Supply Voltage	2V
Maximum High Level Output Current	-8mA
Maximum Propagation Delay Time @ CL	10.5ns
Maximum Low Level Output Current	8mA
Number of Inputs per Gate	2

Key Features

This device integrates a single 2-input AND gate function with CMOS input type.
It operates within a supply voltage range of 2 V to 5.5 V for flexible application.
Maximum propagation delay is 10.5 nanoseconds, suitable for high-speed logic circuits.
Operating temperature ranges from -40°C up to 125°C, meeting automotive grade requirements.
The gate features low power dissipation and balanced propagation delays for reliable performance.
The package is surface mount type TSSOP with a 5-pin count in the 74AHC logic family.
The product conforms to the automotive standard AEC-Q100 Grade 1, suitable for harsh environments.

Product Description

Nexperia 74AHC1G08GW-Q100,1 is a high-speed 2-input AND logic gate implemented in Si-gate CMOS technology, housed in a 5-pin TSSOP surface mount package. This device provides robust digital logic functionality and is optimized for automotive and industrial electronic applications.

Designed to operate with a supply voltage from 2 to 5.5 volts, the gate features CMOS input switching levels enabling lower power consumption compared to TTL equivalents. The compact and lightweight TSSOP package measures approximately 2.25 mm in length and 1 mm in height, facilitating high-density PCB designs.

This part exhibits a maximum propagation delay time of 10.5 nanoseconds at a typical load capacitance, delivering high-speed switching performance. It maintains balanced propagation delays ensuring signal integrity in timing-critical circuits.

Operating temperature ranges from -40°C to 125°C align with automotive industry standards, making it suitable for use in vehicles and harsh industrial environments. It is qualified to the Automotive Electronics Council (AEC) Q100 Grade 1 standard, ensuring reliability and robustness.

The device supports maximum high and low output currents of -8 mA and 8 mA respectively, suitable for driving various loads within integrated circuits and systems. This logic gate offers low power consumption and high noise immunity for stable operation in noisy environments.

Its small footprint and surface mount design facilitate space-saving layouts on PCBs in automotive and consumer electronics applications. The single element per package and 2-input configuration support versatile digital logic system designs.

Nexperia 74AHC1G08GW-Q100,1 is ideal for use in automotive electronics, industrial controls, embedded systems, and consumer electronics requiring fast and reliable AND logic function.
