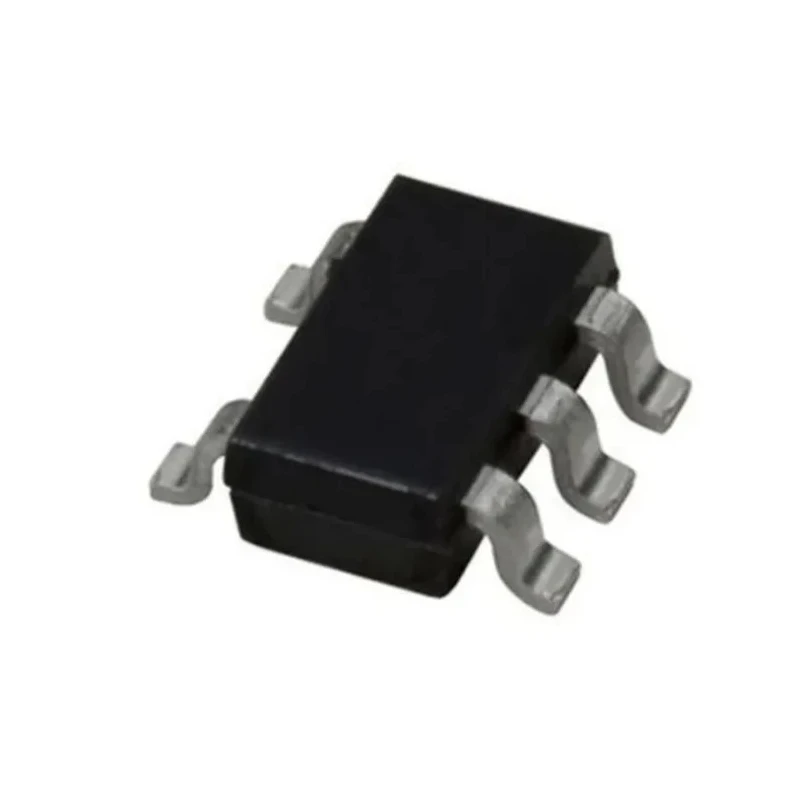

DiodesZetex 1-Input Inverter Logic Gate SOT-25, CMOS LVC, 1.65–5.5V, Automotive Compliant 74LVC1G04QW5-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 1-Input Inverter Logic Gate SOT-25, CMOS LVC, 1.65 - 5.5V, Automotive Compliant 74LVC1G04QW5-7

Name: DiodesZetex 1-Input Inverter Logic Gate SOT-25, CMOS LVC, 1.65 - 5.5V, Automotive Compliant 74LVC1G04QW5-7
Brand: DiodesZetex
SKU: 89482
Price: 0.08 USD
Availability: InStock



Category Logic Gates Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.15mm
Length	3.1mm
Model	74LVC1G04QW5-7
Mount Type	Surface
Output type	Push Pull
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOT-25
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	5ns
Maximum Low Level Output Current	32mA
Number of Inputs per Gate	1

Key Features

Single inverter logic gate for voltage level shifting and signal isolation.
SOT-25 surface mount package with 5-pin configuration for space efficiency.
CMOS LVC logic family ensures low power consumption.
Operates reliably from 1.65V to 5.5V supply voltage for flexible designs.
Automotive compliant with AEC-Q100 standard for robust performance.
Maximum propagation delay of 5ns for fast switching.
Ambient temperature range from -40°C to +125°C for industrial and automotive environments.

Product Description

DiodesZetex presents the 74LVC1G04QW5-7, a single 1-input inverter logic gate in a compact SOT-25 package. Designed to meet demanding automotive and industrial standards, this logic gate delivers reliable performance in environments requiring robust voltage level shifting, power-down signal isolation, and general purpose logic operations.

Featuring a CMOS LVC logic family, the 74LVC1G04QW5-7 consumes minimal power while providing high-speed operation with a maximum propagation delay of 5ns. The device supports a supply voltage range of 1.65V to 5.5V, ensuring versatility in circuit designs for a variety of modern electronic applications.

Its SOT-25 surface mount package includes 5 pins, enabling space-efficient placement on PCBs used in automotive, industrial, and commercial systems. The push-pull output configuration delivers strong signal integrity and supports typical drive requirements.

Single inverter gate designed for logic function inversion. CMOS input type, optimized for low current and high noise immunity. 1 input per gate, making it suitable for simple signal processing tasks. Automotive compliant to AEC-Q100 specification.

Ambient operating temperature range: -40°C to +125°C. Maximum high-level output current: -32mA. Maximum low-level output current: 32mA. Fast switching with 5ns propagation delay at standard capacitive load.

This component is ideal for automotive, industrial manufacturing, construction equipment, embedded electronics, and laboratory instrumentation projects. Its rugged operational temperature range and automotive qualification standards allow use in applications exposed to extreme conditions.

Typical use cases include voltage translation, signal inversion, microcontroller interfacing, and PCB logic applications. Engineers will benefit from its reliability, space-saving package, and ease of integration into both new and legacy designs.

Browse more DiodesZetex logic ICs, inverter gates, and automotive-grade semiconductors in the Logic Gates section of EnvMart.
