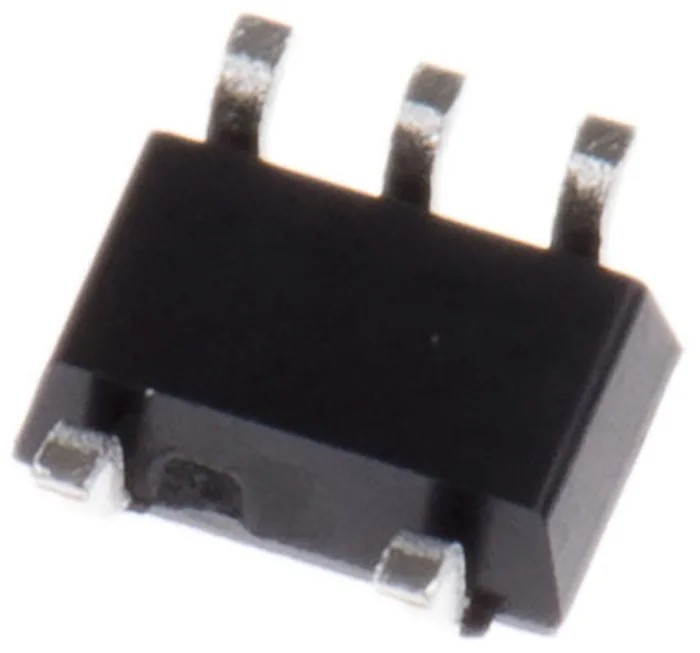

Nexperia 1 2-Input OR Logic Gate 5-Pin TSSOP 74HCT1G32GW,125

Name: Nexperia 1 2-Input OR Logic Gate 5-Pin TSSOP 74HCT1G32GW,125
Brand: Nexperia
SKU: 105665
Price: 0.09 USD
Availability: InStock



Category Logic Gates Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1mm
Length	2.25mm
Model	74HCT1G32GW,125
Mount Type	Surface
Compatibility	Input TTL, Output CMOS
Output type	Current
Series	74HCT
Input Type	TTL
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Maximum Supply Voltage	5.5V
Logic Family	HCT
Logic Function	OR
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-2mA
Maximum Propagation Delay Time @ CL	23ns
Maximum Low Level Output Current	2mA
Number of Inputs per Gate	2

Key Features

This logic gate functions as an OR device with 2 inputs per gate.
It features a surface mount design suitable for automated PCB assembly.
Operating voltage ranges from 4.5V to 5.5V for compatibility with standard digital circuits.
Maximum propagation delay is 23 nanoseconds at typical load conditions.
The device supports a wide temperature range from -40°C to 125°C.
The package height is 1mm and length is 2.25mm, ensuring a low-profile footprint.
Pin count is 5 with TTL input type and HCT logic family.
Maximum output current is ±2mA with current output type.

Product Description

Nexperia 74HCT1G32GW,125 1 2-Input OR Logic Gate in 5-Pin TSSOP package is a high-speed CMOS logic device designed for industrial, electronic, and semiconductor applications requiring efficient logic gating functionality.

This component operates at voltage levels between 4.5V and 5.5V, making it suitable for compatibility with TTL input signals and CMOS output requirements. The logic gate supports a single OR function with 2 inputs, integrated into a small surface mount footprint ideal for compact PCB designs.

Constructed with the HCT logic family technology, it ensures minimized propagation delay times at 23ns under load conditions, facilitating high-speed signal processing needs without compromising power consumption.

The device's operating temperature range of -40°C to 125°C supports reliable performance in variable environmental conditions common in industrial and commercial electronics. It has a compact size with a height of 1mm and length of 2.25mm, providing space-saving integration options.

This logic gate is designed for high-speed CMOS operation with TTL input compatibility. Compact 5-pin TSSOP surface mount package for automated assembly. Rated voltage operation from 4.5V to 5.5V with 2-input OR gate function.

Maximum propagation delay time of 23 nanoseconds supports fast switching. Wide temperature operating range from -40°C to 125°C for robust performance. Output type is current, supporting ±2mA current sourcing and sinking.

Manufactured in Malaysia, guaranteeing adherence to quality standards.

Applications include electronic circuit boards in computing, automation, signal processing, and various industrial control systems where logic gate functions are essential. This part integrates efficiently into modern electronics due to its small form factor and surface mount design, enhancing manufacturing productivity.

Discover more logic ICs and semiconductor components at EnvMart to optimize your next industrial or electronic project.

Explore more products in our Logic Gates category.
