Texas Instruments 74HC Family 4× 2-Input AND Logic Gate, SOIC-14, CMOS, Surface Mount SN74HC08D

Free Delivery in India | Lowest Global Shipping Charges

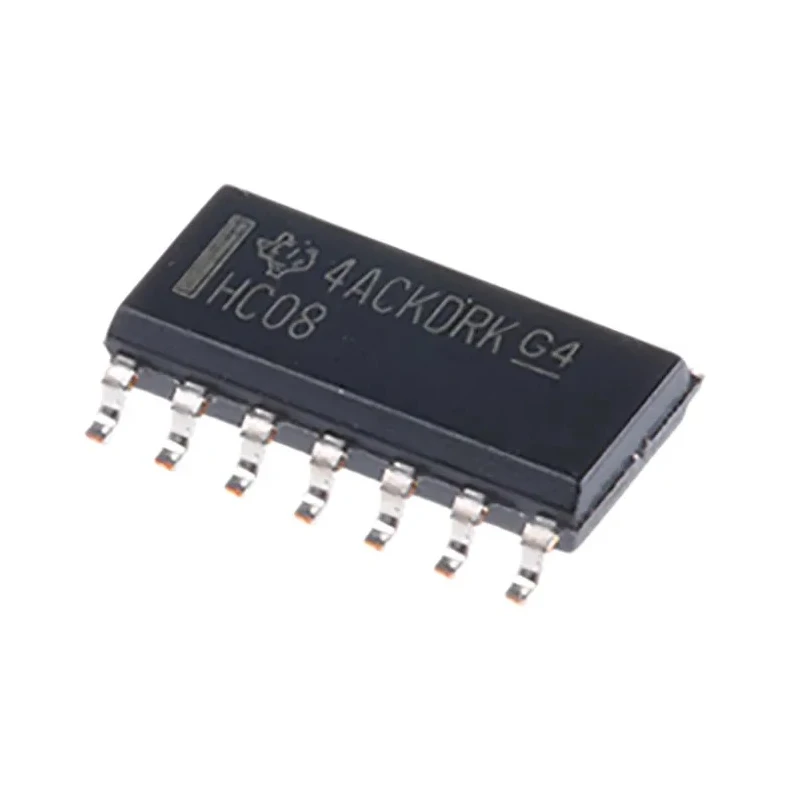

Texas Instruments 74HC Family 4× 2-Input AND Logic Gate, SOIC-14, CMOS, Surface Mount SN74HC08D

Name: Texas Instruments 74HC Family 4× 2-Input AND Logic Gate, SOIC-14, CMOS, Surface Mount SN74HC08D
Brand: Texas Instruments
SKU: 90688
Price: 0.99 USD
Availability: InStock



Category Logic Gates Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.58mm
Length	8.65mm
Model	SN74HC08D
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	Push Pull
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	AND
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	24ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2

Key Features

This IC provides four independent 2-input AND gates in a single package.
Surface mount package with industry-standard SOIC-14 form factor.
Operates over a wide voltage range from 2V to 6V for compatibility with modern logic circuits.
High-speed CMOS technology delivers fast propagation delay times up to 24ns.
Low power consumption and reliable operation at temperatures from -40°C to 85°C.
CMOS input and output compatibility for wide applicability in digital systems.
Push-pull output configuration ensures robust signal drive.

Product Description

Texas Instruments SN74HC08D, part of the 74HC logic family, is a high-speed CMOS logic IC designed to provide four 2-input AND gates in a single SOIC-14 surface mount package. This industry-standard IC is commonly used in digital electronics for implementing logic circuits where fast operation and low power consumption are critical.

The SN74HC08D operates reliably within a voltage range of 2V to 6V, making it suitable for interfacing with a variety of CMOS-based digital systems. With a maximum propagation delay time of 24ns, it supports high-frequency operation, enabling rapid signal processing in industrial and commercial applications.

This logic gate IC features CMOS input compatibility and push-pull output, ensuring flexible integration and consistent drive strength across circuits. The device supports four individual AND gates, each with two inputs, providing versatility for use in data processing, control logic, signal routing, and more.

Its surface-mount SOIC-14 package enables easy installation on printed circuit boards, contributing to compact designs and robust mechanical reliability. Operating temperature range from -40°C to 85°C allows deployment in demanding environments such as industrial automation, instrumentation, and telecommunication systems.

Low power consumption combined with high-speed operation makes the SN74HC08D suitable for portable and battery-powered devices.

Texas Instruments SN74HC08D finds application in various sectors, including industrial control, laboratory instrumentation, automation systems, consumer electronics, and manufacturing. Its robust specification and compliance with standards ensure reliable performance and long lifecycle.

Explore more Texas Instruments logic devices in EnvMart's Logic Gates category for advanced digital solutions and integrated circuits.
