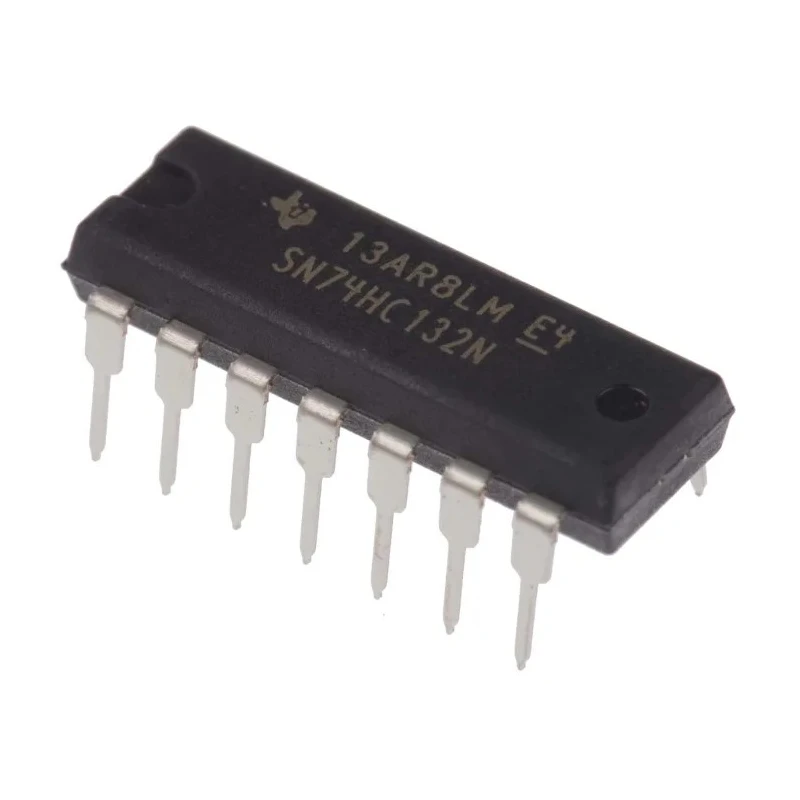

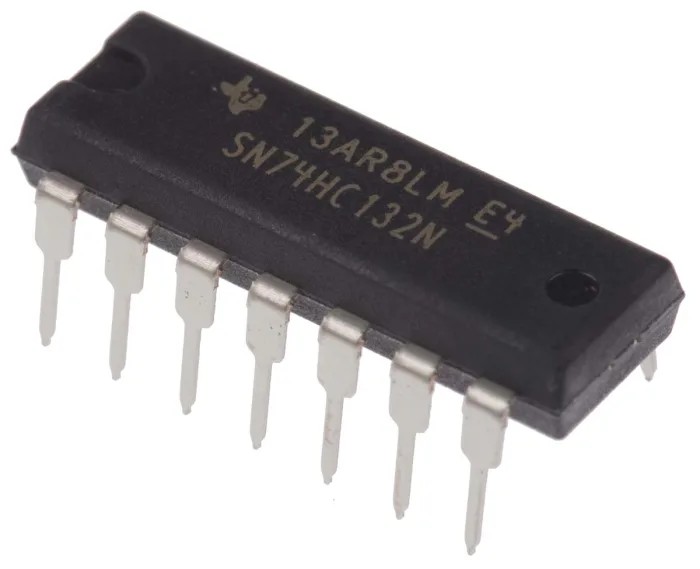

Texas Instruments 4-Channel 2-Input NAND Schmitt Trigger Logic Gate, Through Hole, PDIP-14, 2 - 6V, SN74HC132N

The Texas Instruments SN74HC132N is an advanced quad 2-input NAND gate integrated circuit featuring Schmitt Trigger inputs, designed for high-speed operation and robust noise handling in digital systems. This device is constructed using CMOS technology, ensuring low power consumption while delivering propagation speeds comparable to traditional LSTTL logic devices. Each IC contains four independent 2-input NAND gates, all integrated into a standard 14-pin dual in-line (PDIP) package, allowing for easy implementation in a variety of electronic applications.

With a supply voltage range of 2V to 6V, the SN74HC132N provides flexibility for use across many digital circuit designs and supports seamless interfacing with both CMOS and TTL logic families. The Schmitt Trigger input structure on each gate improves tolerance to noisy or slowly changing input signals, reducing susceptibility to signal glitches and offering enhanced stability. The integrated push-pull output type enables reliable communication in logic circuits, maintaining the signal integrity required for consistent system performance.

This logic gate IC features a maximum propagation delay of 27 nanoseconds (ns), ensuring prompt response to input changes and supporting high-speed operations critical to modern digital interfaces. Thanks to its through-hole mounting and standard 14-PDIP form factor, assembly on conventional circuit boards is straightforward, making it a favorable choice for prototyping, educational projects, and industrial electronics.

The SN74HC132N is engineered for reliable performance across a wide temperature range from -40°C to 85°C, allowing it to function dependably in harsh environments and industrial equipment. Its low power design helps minimize energy consumption in continuous-operation systems, while the device’s carefully controlled output current safeguards downstream logic from excessive load.

Typical use cases for this logic gate IC include logic signal processing, waveform shaping, digital signal timing, and interfacing between microcontrollers and sensors. It is widely utilized in automation, industrial control, laboratory instrumentation, embedded systems, and general-purpose electronic circuit design where robust digital logic functionality is required.

The Texas Instruments SN74HC132N is an essential building block for electronic designers who require dependable, noise-immune, high-speed NAND logic in a standard DIP package. Explore more Texas Instruments digital logic ICs and the full range of semiconductor products in the Logic Gates category on EnvMart.
