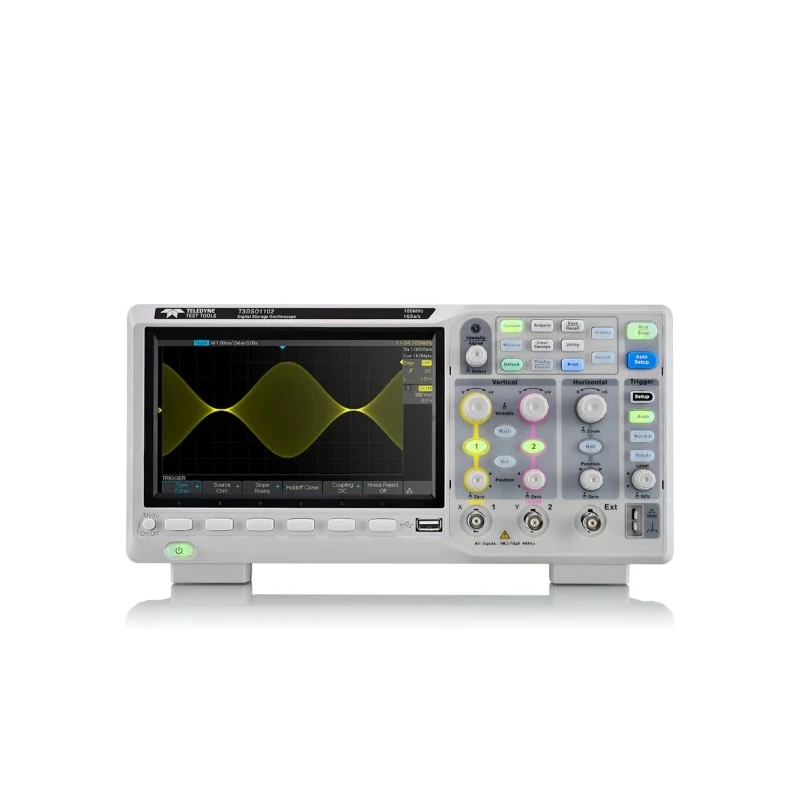

Teledyne LeCroy 100 MHz Bench Oscilloscope 2-Channel with 7in TFT LCD USB Interface T3DSO1000

Teledyne LeCroy T3DSO1102 is a 100 MHz bench oscilloscope designed to provide accurate and versatile electronic signal measurements for industrial, laboratory, research, and educational applications. It features a bright 7-inch TFT LCD with resolution of 800 x 480 pixels, enabling clear waveform visualization. The device supports two input channels with sampling rates up to 500 MSa/s per channel, and a single channel sampling rate of 1 GSa/s, allowing detailed signal analysis.

The oscilloscope offers a long memory depth of up to 7 million points per channel, enhancing signal capture capabilities especially in complex scenarios. Advanced trigger options include edge, slope, pulse width, window, runt, interval, time out (dropout), and pattern triggers, facilitating precise event detection. Additionally, serial bus triggering and decoding features for I2C, SPI, UART, RS232, CAN, and LIN protocols enable developers and technicians to debug digital communication interfaces directly.

With waveform capture rates reaching 100,000 waveforms per second in normal mode and up to 400,000 waveforms per second in sequence mode, users can efficiently capture transient events and analyze signal integrity. The USB interface supports mass storage, printing, and PC control, while LAN connectivity allows rapid export of data and screenshots for further analysis or reporting.

The oscilloscope offers 8-bit vertical resolution with a vertical sensitivity range from 500 mV/div to 10 V/div, together with a fast rise time of 3.5 ns, ensuring high-fidelity waveform measurements. Its compact bench design, with dimensions of approximately 150 mm in height and 134 mm in width, makes it suitable for placement in laboratories, production testing, research facilities, and design environments.

Applications include electronic design validation, educational labs, medical research instrument testing, television repair, physics experiments, and industrial maintenance. The device is manufactured in China and supplied as new.

Features a 7 inch bright TFT LCD display with 800 x 480 resolution. Offers 100 MHz bandwidth suitable for various electronic signal analysis. Equipped with 2 channels and USB interface for mass storage and PC control. Supports waveform capture rates up to 100,000 wfm/s in normal mode and 400,000 wfm/s in sequence mode.

Includes advanced triggering options such as edge, slope, pulse width, window, runt, interval, and pattern triggering. Provides long memory depth up to 7 million points per channel for detailed signal capture. Supports serial bus trigger and decode options for I2C, SPI, UART, RS232, CAN, and LIN protocols.

Utilizes 8-bit vertical resolution with maximum vertical sensitivity of 10 V/div. Comes with a rise time of 3.5 ns, enabling fast signal response measurement. Designed for bench use with dimensions of approximately 150 mm height and 134 mm width.
