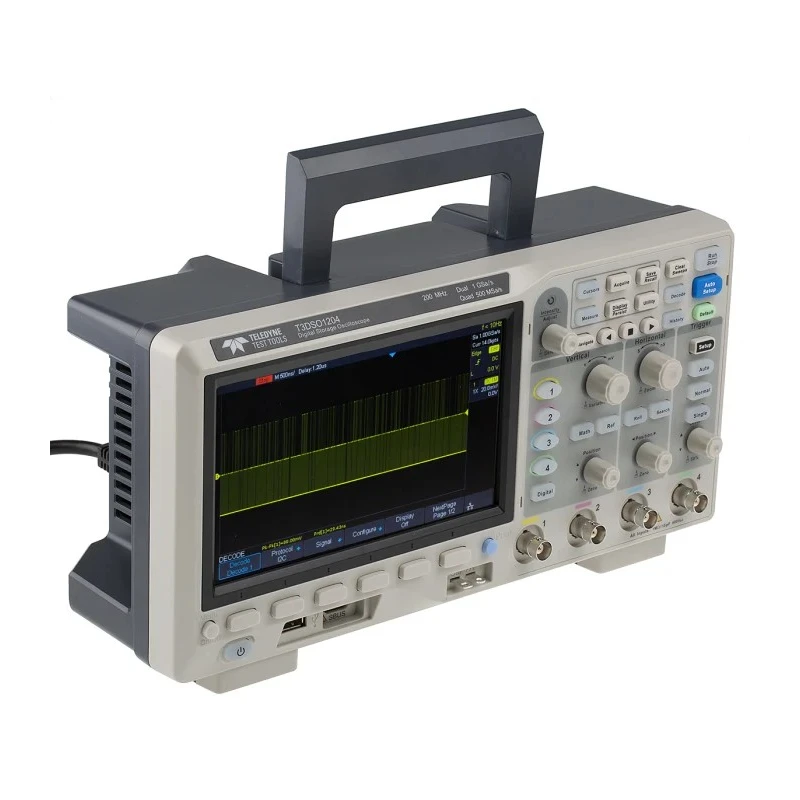

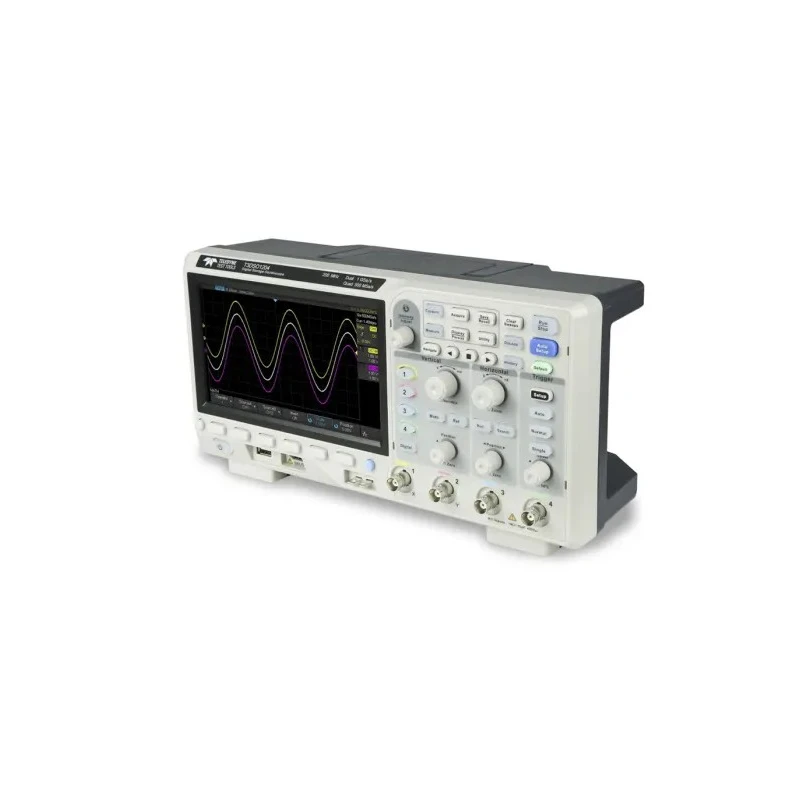

Teledyne LeCroy 200 MHz Bench Digital Oscilloscope, 4 Channels, USB, 1 GSa/s, T3DSO1000 Series

Teledyne LeCroy T3DSO1204 is a precision bench digital oscilloscope from the T3DSO1000 Series, engineered for advanced electronic signal measurement and analysis in laboratory, industrial, and educational environments. With a 200 MHz bandwidth and four independent input channels, this oscilloscope offers versatile performance suited for developing, troubleshooting, and validating electronic designs. Its maximum sample rate of 1 GSa/s, coupled with a dual ADC architecture, ensures fast and reliable waveform acquisition.

The T3DSO1204 integrates a high-speed color display with waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode), giving users clear and rapid signal visualization. Intelligent trigger capabilities include edge, slope, pulse width, window, runt, interval, timeout, dropout, and pattern detection, further enhancing precision and diagnostic capability.

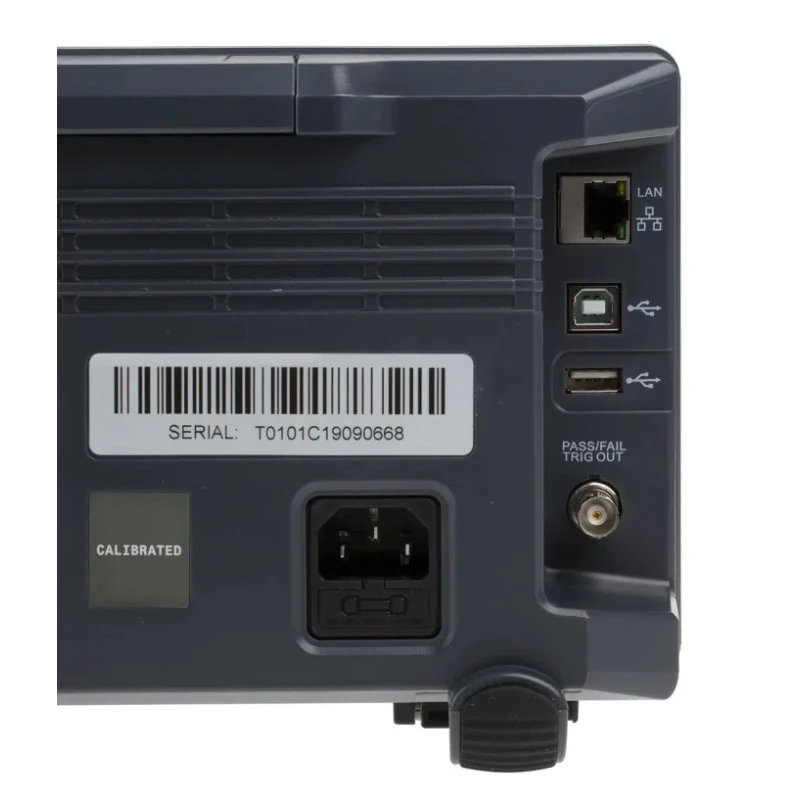

The oscilloscope includes USB connectivity for seamless integration with computers and test networks, supporting remote data acquisition and easy documentation. Vertical sensitivity adjusts from 500 μV/div up to 10 V/div, allowing it to handle both small and large signals, while an 8-bit vertical resolution delivers clear signal detail. The memory record length of 14 Mpts and history waveform function (up to 80,000 frames) improve analysis depth, and 256-level intensity grading and advanced color modes aid in signal interpretation.

Serial bus triggering and decoding is supported for standard protocols, including IIC, SPI, UART, RS232, CAN, and LIN, making this instrument ideal for both digital and analog circuit analysis. Additional capabilities include video trigger support for HDTV signals and a low-noise architecture supporting application in research, education, television repair, and electronic design environments.

Recommended use cases for the T3DSO1204 include waveform measurement, signal debugging, data analysis, component testing, and electronics repair activities. Its robust feature set and reliable performance make this model a vital asset for engineers, technicians, physicists, and electronics researchers.
