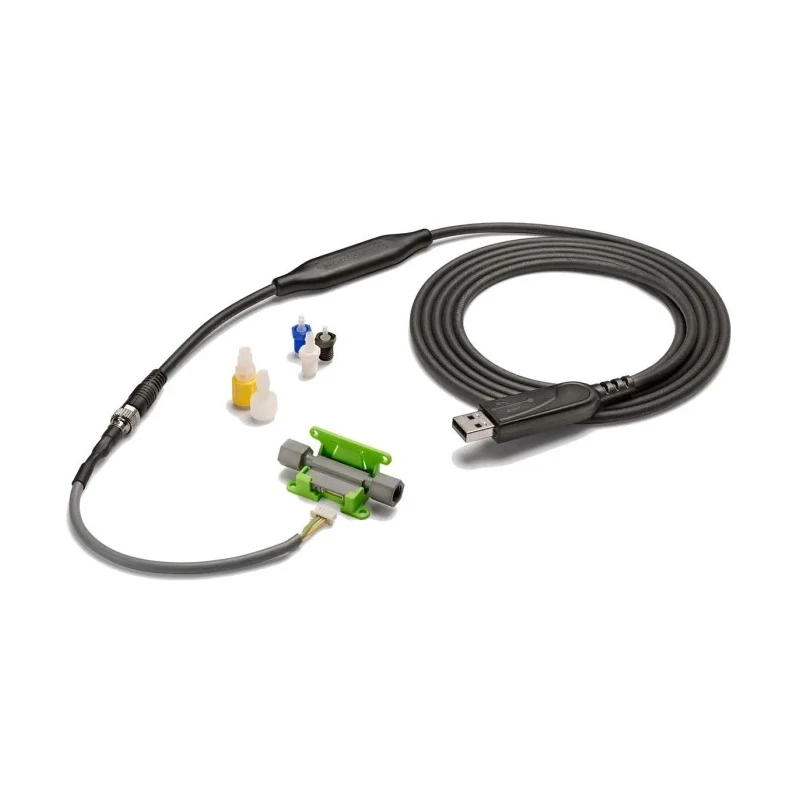

Sensirion SLF3x Series Liquid Flow Sensor for Fluid, Bi-Directional, -2000μl/min Min to 2000L/min Max, 3.5V DC Supply

Free Delivery in India | Lowest Global Shipping Charges

Sensirion SLF3x Series Liquid Flow Sensor for Fluid, Bi-Directional, -2000μl/min Min to 2000L/min Max, 3.5V DC Supply

Name: Sensirion SLF3x Series Liquid Flow Sensor for Fluid, Bi-Directional, -2000μl/min Min to 2000L/min Max, 3.5V DC Supply
Brand: Sensirion
SKU: 165608
Price: 239.43 USD
Availability: InStock



Category Flow Sensor Brand Sensirion Condition New

Specifications

Country of Origin	Switzerland
Brand	Sensirion
Model	SLF3x
Series	SLF3x
Maximum Operating Temperature	50°C
Maximum Pressure	12bar
Minimum Flow Rate	-2000μl/min
Minimum Operating Temperature	5°C
Device Type	Liquid Flow Sensor
Maximum Flow Rate	2000L/min
Standards/Approvals	RoHS, REACH
Maximum Supply Voltage	3.5V dc
Media Monitored	Fluid
Turn down ratio 200	1 or better

Key Features

The sensor uses a 3.5V DC supply for power operation.
Designed for fluid media monitoring with a compact, light-weight form factor.
Temperature compensated measurements ensure consistent performance from 5°C to 50°C.
Includes a digital I2C interface via a 6-pin standard electrical connector for easy integration.
Maximum pressure rating of 12 bar supports a wide range of applications.
Response time is less than 20 milliseconds enabling rapid detection of flow changes.
Calibrated for H2O and IPA to ensure measurement accuracy.

Product Description

The Sensirion SLF3S-0600F is a high-precision liquid flow sensor from the SLF3x series, engineered for dynamic fluid flow measurement ranging from a minimum of -2000μl/min to a maximum of 2000L/min. Powered by a 3.5V DC supply, this compact, lightweight sensor enables reliable flow monitoring with very fast response times below 20 milliseconds.

It is specifically designed for fluid media with temperature compensation to maintain accuracy across an operating temperature range of 5°C to 50°C. The sensor is calibrated for water (H2O) and isopropyl alcohol (IPA) to meet demanding industrial and laboratory applications.

The SLF3S-0600F features a digital I2C interface through a 6-pin standard electrical connector to facilitate easy connectivity and integration into automation and control systems. With a maximum pressure tolerance of 12 bar and a turn down ratio of 200:1 or better, this sensor provides exceptional precision and versatility.

Industrial sectors such as laboratory instrumentation, chemical processing, medical fluid handling, and water treatment benefit from the fast, accurate measurement capabilities of the SLF3x liquid flow sensor series. Its reliability and compact size make it ideal for high-volume production environments and embedded system designs.

The sensor supports bi-directional flow measurement for comprehensive fluid monitoring. Its compact size ensures suitability for space-constrained installations. Compatible with various automation platforms via I2C interface.

Designed to withstand standard industry pressures up to 12 bar. Temperature compensation enhances measurement stability and accuracy. Calibrated for common fluids like water and isopropyl alcohol. Rapid response time enhances real-time flow control accuracy.

Choose the Sensirion SLF3S-0600F for precision liquid flow sensing in diverse industrial and laboratory applications. Browse the full catalog of Flow Sensors at EnvMart to find complementary products and accessories.
