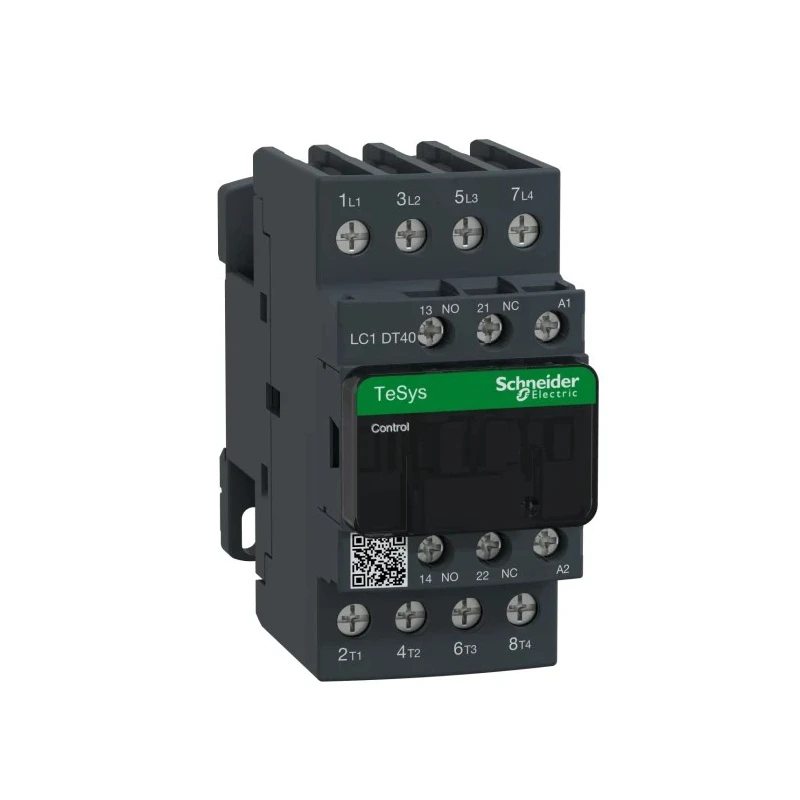

Schneider Electric LC1D Contactor 230V AC Coil 4-Pole 40 A 1.56W Power Rating

Schneider Electric LC1DT40P7 Contactor is a precision-engineered 4-pole contactor designed for robust motor control and resistive load applications in industrial automation systems. Operating at a 230V AC coil voltage, it delivers a rated operational current of 40 A with a power rating of 1.56 W, ensuring efficient load handling while maintaining durability across operational cycles.

The contactor provides reliable performance within an extensive temperature operating range, from -40°C to +60°C, making it suitable for harsh industrial environments. It features a compact form factor with dimensions of 91mm in length, 45mm in width, and 99mm in depth, optimized for DIN rail mounting using screw terminals for easy installation and secure connections.

Auxiliary contacts are configured as 1 normally open (NO) and 1 normally closed (NC), offering enhanced control options to support complex automation and motor starter circuits. The unit also incorporates a front face IP20 rating conforming to industrial safety standards including IEC, CCC, CSA, EAC, RoHS, and UL certifications, underscoring the product’s compliance with global quality and environmental requirements.

This contactor is ideally suited for industrial automation systems, electrical installations requiring resistive load management, and motor starter assemblies, providing precise and dependable switching operations to protect and control electrical equipment. With a mechanical durability of up to 15 million cycles and electrical endurance rated at 1.4 million cycles, it reduces maintenance frequency and promotes extended operational life.

The 4-pole pole and throw configuration offers comprehensive control over three-phase motors for enhanced operational efficiency, ideal for applications in manufacturing, process control, HVAC systems, and other industrial sectors demanding reliable switching performance.

Operates at 230V AC coil voltage ensuring compatibility with standard electrical systems. Rated for a 40 A contact current for handling medium to high electrical loads. Compact design enables efficient use of panel space.

Mounts on standard DIN rail with screw terminals for secure electrical connection. Auxiliary contact configuration (1 NO + 1 NC) adds flexibility in circuit control and signaling. Wide operating temperature range supports use in various ambient conditions.

Complies with international safety and quality standards. IP20 front protection suitable for industrial environments. Explore more Schneider Electric Contactors and control gear on EnvMart, your trusted platform for industrial automation components.
