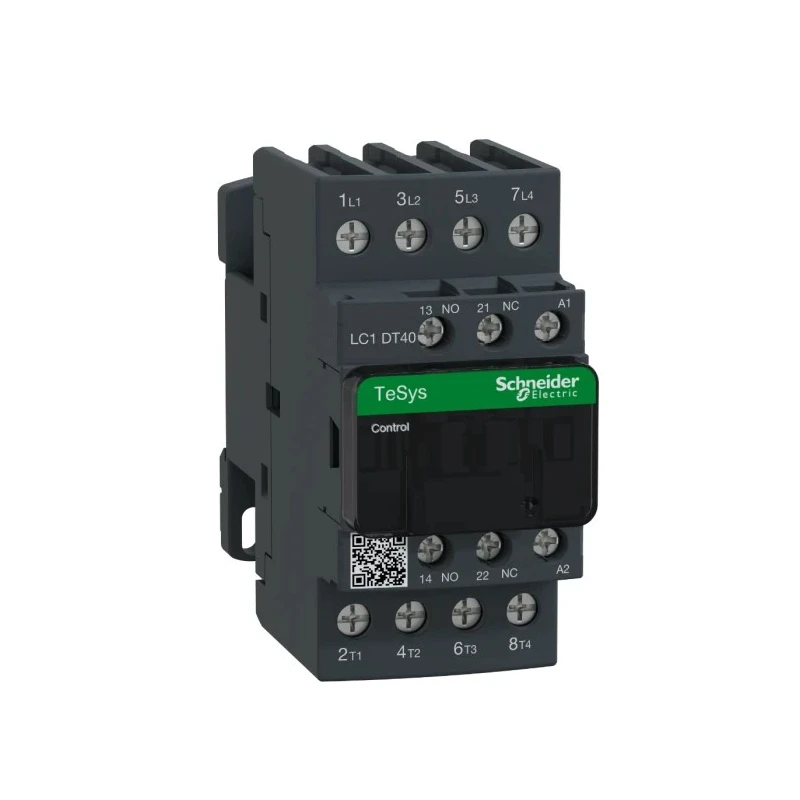

Schneider Electric LC1D Contactor, 110V AC Coil, 4-Pole, 40A Current, 1.56W Coil Power, 690V AC Contact Voltage LC1DT40F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT40F7 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | RoHS, CCC, CSA, EAC, IEC, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 4 normally open poles and 2 auxiliary contacts for versatile switching.
- Provides screw-type terminals with IP20 finger-safe protection.
- Designed for DIN rail mounting with compact dimensions of 91mm height, 45mm width, and 97mm depth.
- Operates efficiently with 1.56W coil power and supports 690V AC contact voltage.
- Suitable for frequent switching with up to 3600 cycles per hour and a service life of 1.4 million electrical cycles.
- Wide operating temperature range from -5°C to 60°C ensures reliability in diverse environments.
- Complies with international standards including RoHS, CCC, CSA, EAC, IEC, and UL.
Product Description
Schneider Electric LC1DT40F7 contactor is designed specifically for controlling motors and resistive loads with reliable switching performance. Featuring a 110V AC coil and a 4-pole configuration, it is ideal for industrial electrical automation applications requiring robust control and efficient power management.
The contactor includes 4 normally open contacts and 2 auxiliary contacts (1 NO and 1 NC) to provide advanced control signaling and integration with auxiliary circuits. Its screw-type terminals ensure secure wiring connected via IP20 finger-safe design. The compact form factor measuring 91mm height, 45mm width, and 97mm depth allows easy DIN rail mounting and minimal installation space requirements.
Energy efficiency is ensured with a low coil power rating of 1.56W. The product supports a wide range of control voltages at 110V AC coil voltage and can manage contact voltages up to 690V AC with a robust current rating of 40A. Its high operational speed with opening times between 4 to 19 milliseconds and closing times between 12 to 22 milliseconds makes it suitable for frequent switching cycles up to 3600 per hour, providing long-term durability estimated at 1.4 million electrical cycles.
Designed for use in diverse industrial settings such as manufacturing equipment, power distribution systems, and lighting controls, this contactor maintains performance in temperatures from -5°C to 60°C. Schneider Electric ensures compliance with major international certifications, including RoHS, CCC, CSA, EAC, IEC, and UL, highlighting its quality and safety standards.
Equipped with 4 NO poles and 2 auxiliary contacts for enhanced circuit control. Screw terminals with IP20 protection guarantee installation safety. Compact size enables flexible mounting on DIN rails. Low coil power consumption for improved energy efficiency.
High durability with 1.4 million electrical cycles lifespan. Operates reliably in a broad temperature range (-5°C to 60°C). Conforms to multiple international safety and quality standards.
This Schneider Electric LC1DT40F7 contactor is a key component for industrial motor control and resistive electrical load applications. Its reliability, compact design, and compliance with global standards make it a preferred choice for electrical automation and control gear systems. Explore more Contactors and related products at EnvMart for complete solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT40F7 contactor has a coil voltage of 110V AC.
This model supports a maximum contact voltage of 690V AC.
The contactor features a 4-pole configuration with 4 normally open contacts.
It has a current rating of 40A, suitable for motor control and resistive loads.
The dimensions of the LC1DT40F7 are 91mm in height, 45mm in width, and 97mm in depth.
The coil power rating for this contactor is 1.56W.
This contactor operates effectively within a temperature range of -5°C to 60°C.
It uses screw-type terminals with IP20 finger-safe protection.
The LC1DT40F7 includes 2 auxiliary contacts, configured as 1 normally open and 1 normally closed.
This contactor has an estimated service life of 1.4 million electrical cycles.
It complies with several international standards including RoHS, CCC, CSA, EAC, IEC, and UL.
The LC1DT40F7 is designed for DIN rail mounting, allowing for easy installation.
